What is the size of the ducts that a Hvac Duct Machine can produce?

As a leading supplier of HVAC duct machines, I often receive inquiries from customers about the size of ducts that our machines can produce. Understanding the capabilities of our equipment is crucial for architects, contractors, and facility managers who are involved in the design and installation of HVAC systems. In this blog post, I will delve into the details of the duct sizes that our HVAC duct machines can handle, exploring the factors that influence these sizes and the applications for different duct dimensions.

Understanding the Basics of Duct Sizes

Before we discuss the specific sizes that our machines can produce, it's important to understand the basics of duct sizing. Ducts are used to distribute air throughout a building, and their size is determined by several factors, including the volume of air that needs to be transported, the velocity of the air, and the pressure drop across the duct system. These factors are influenced by the size of the building, the number of occupants, and the type of HVAC system being used.

The size of a duct is typically measured in terms of its diameter for round ducts or its width and height for rectangular ducts. In the HVAC industry, duct sizes are standardized to ensure compatibility with other components of the system, such as fans, filters, and dampers. Standard duct sizes range from small diameters for residential applications to large dimensions for commercial and industrial buildings.

Duct Sizes Produced by Our HVAC Duct Machines

Our company offers a wide range of HVAC duct machines, each designed to produce ducts of different sizes and shapes. Our machines are capable of manufacturing round, rectangular, and oval ducts, with sizes that can accommodate a variety of applications.

Round Ducts

Round ducts are commonly used in HVAC systems due to their efficient airflow characteristics. Our Heavy Duty Round Duct Making Machine With Plasma Cutter Machine To Make Ventilation Duct can produce round ducts with diameters ranging from 100mm to 1600mm. This wide range of sizes makes it suitable for both residential and commercial applications, from small residential HVAC systems to large industrial ventilation projects.

The ability to produce round ducts in various sizes is essential for meeting the specific requirements of different projects. For example, in a small residential building, smaller diameter round ducts may be sufficient to distribute air throughout the rooms. On the other hand, in a large commercial building or an industrial facility, larger diameter round ducts are needed to handle the higher volume of air required for proper ventilation.

Rectangular Ducts

Rectangular ducts are often used in situations where space is limited or where a more aesthetically pleasing appearance is desired. Our automatic duct making machinery can produce rectangular ducts with a width ranging from 100mm to 2000mm and a height ranging from 100mm to 1000mm. This flexibility in size allows us to meet the diverse needs of our customers, whether they are working on a small office renovation or a large-scale commercial construction project.

The size of rectangular ducts is typically specified based on the available space and the airflow requirements of the HVAC system. In a building with low ceilings, for example, shallower rectangular ducts may be preferred to minimize the impact on the overall height of the space. In contrast, in a building with a large open area, wider and taller rectangular ducts may be used to accommodate the higher volume of air.

Oval Ducts

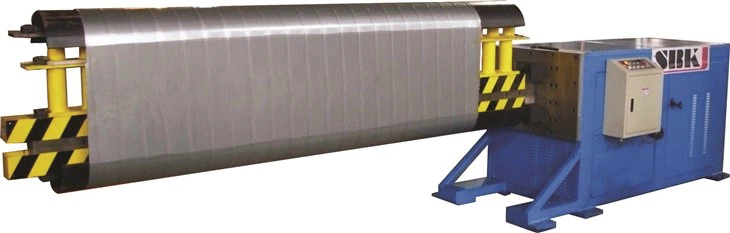

Oval ducts offer a compromise between the efficient airflow of round ducts and the space-saving benefits of rectangular ducts. Our Round Oval Duct Former Air Pipe Forming Machine can produce oval ducts with a major axis ranging from 150mm to 1600mm and a minor axis ranging from 100mm to 1000mm. This allows us to provide our customers with a versatile duct solution that can be customized to fit their specific needs.

Oval ducts are particularly useful in applications where space is limited but a high volume of air needs to be transported. For example, in a building with narrow corridors or limited ceiling space, oval ducts can be used to maximize the airflow while minimizing the footprint of the duct system.

Factors Influencing Duct Size Production

The size of ducts that our HVAC duct machines can produce is influenced by several factors, including the design and capabilities of the machine, the type of material being used, and the specific requirements of the project.

Machine Design and Capabilities

The design of our HVAC duct machines plays a crucial role in determining the maximum and minimum duct sizes that can be produced. Our machines are engineered with precision to ensure accurate and consistent duct production, regardless of the size. Advanced features such as adjustable rollers, cutting mechanisms, and forming dies allow us to produce ducts in a wide range of sizes with high quality and efficiency.

For example, our Automatic Duct Making Machinery is equipped with state-of-the-art control systems that can be programmed to produce ducts of specific sizes and shapes. This flexibility allows us to meet the unique requirements of our customers, whether they need a single custom-sized duct or a large quantity of standardized ducts.

Material Type and Thickness

The type and thickness of the material being used also affect the size of ducts that can be produced. Our machines are designed to work with a variety of materials, including galvanized steel, stainless steel, and aluminum. Each material has its own properties, such as strength, flexibility, and corrosion resistance, which can impact the duct production process.

Thicker materials may require more powerful machines and specialized tooling to form and cut the ducts. For example, producing large diameter ducts from thick-gauge galvanized steel may require a heavy-duty round duct making machine with a higher power output and stronger cutting blades. On the other hand, thinner materials can be more easily formed and cut, allowing for the production of smaller ducts with greater precision.

Project Requirements

The specific requirements of the project, such as the airflow rate, pressure drop, and installation space, also play a role in determining the appropriate duct size. Our team of experts works closely with our customers to understand their project needs and recommend the most suitable duct sizes and configurations.

For example, in a high-rise building with a large number of floors, the duct system needs to be designed to handle the vertical transportation of air over long distances. This may require larger diameter ducts to minimize the pressure drop and ensure efficient airflow. In contrast, in a small retail store, the duct system can be designed with smaller ducts to meet the lower airflow requirements and save space.

Applications of Different Duct Sizes

The different duct sizes produced by our HVAC duct machines are suitable for a wide range of applications, from residential to commercial and industrial projects.

Residential Applications

In residential buildings, smaller duct sizes are typically used to distribute air throughout the rooms. Round ducts with diameters ranging from 100mm to 300mm are commonly used for residential HVAC systems, as they can efficiently transport the required volume of air while minimizing the space occupied by the ductwork. Rectangular ducts with smaller dimensions may also be used in areas where space is limited, such as in crawl spaces or attics.

Commercial Applications

Commercial buildings, such as offices, shopping malls, and restaurants, require larger duct sizes to accommodate the higher volume of air needed for proper ventilation. Round ducts with diameters up to 1600mm and rectangular ducts with larger widths and heights can be used in commercial HVAC systems to ensure adequate airflow and temperature control. Oval ducts are also popular in commercial applications, as they can provide a balance between airflow efficiency and space utilization.

Industrial Applications

Industrial facilities, such as factories, warehouses, and power plants, often have the most demanding HVAC requirements. Large diameter round ducts, rectangular ducts, and oval ducts are used in industrial ventilation systems to handle the high volume of air and the removal of contaminants, such as dust, fumes, and heat. Our HVAC duct machines can produce ducts of the appropriate sizes to meet the specific needs of industrial applications, ensuring a safe and comfortable working environment.

Conclusion

In conclusion, our HVAC duct machines are capable of producing ducts of a wide range of sizes and shapes, including round, rectangular, and oval ducts. The size of ducts that can be produced is influenced by factors such as the machine design, material type and thickness, and project requirements. Whether you are working on a residential, commercial, or industrial project, our company can provide you with the right duct solution to meet your needs.

If you are interested in learning more about our HVAC duct machines or need assistance in selecting the appropriate duct sizes for your project, please do not hesitate to contact us. Our team of experts is ready to help you with your HVAC ducting needs and provide you with the best products and services in the industry.
