What is Spiral Duct Forming Machine



A spiral duct forming machine is a mechanical device used in sheet metal fabrication to create spiral ducts from various types of sheet metals such as aluminum, stainless steel, galvanized steel, and other materials. The machine utilizes advanced technologies and computer-aided designs to produce spiral ducts with precise measurements and high quality. The machine can produce a range of spiral ducts of different shapes, sizes, and dimensions to suit various HVAC (Heating, Ventilation, and Air Conditioning) and industrial applications. The spiral duct forming machine can significantly increase efficiency and reduce labor costs compared to hand-made ductwork.

First 123456 Last 1/6

Benefits of Spiral Duct Forming Machine

01/

Minimal Maintenance
A quality duct forming machine is designed to last with minimal maintenance, reducing your downtime and costs. Quality materials used for construction, in combination with advanced features, help ensure that the equipment functions smoothly and is easy to use and maintain.

02/

Longevity and Durability
Investing in a quality duct forming machine helps ensure that it lasts for years with few replacements required. High grade materials used to make the machine and its components give good longevity and durability even in the toughest conditions.

03/

Innovative Technology
Modern duct forming machines are equipped with advanced technology and features. This includes cutting and forming technology for greater accuracy, production speeds, safety features, and easy operation.

04/

Cost Savings
A duct forming machine that is well-designed and constructed can help you save money by producing high quality ducts quickly and efficiently. Long-term savings will also come from being able to perform many of the maintenance and repairs in-house.

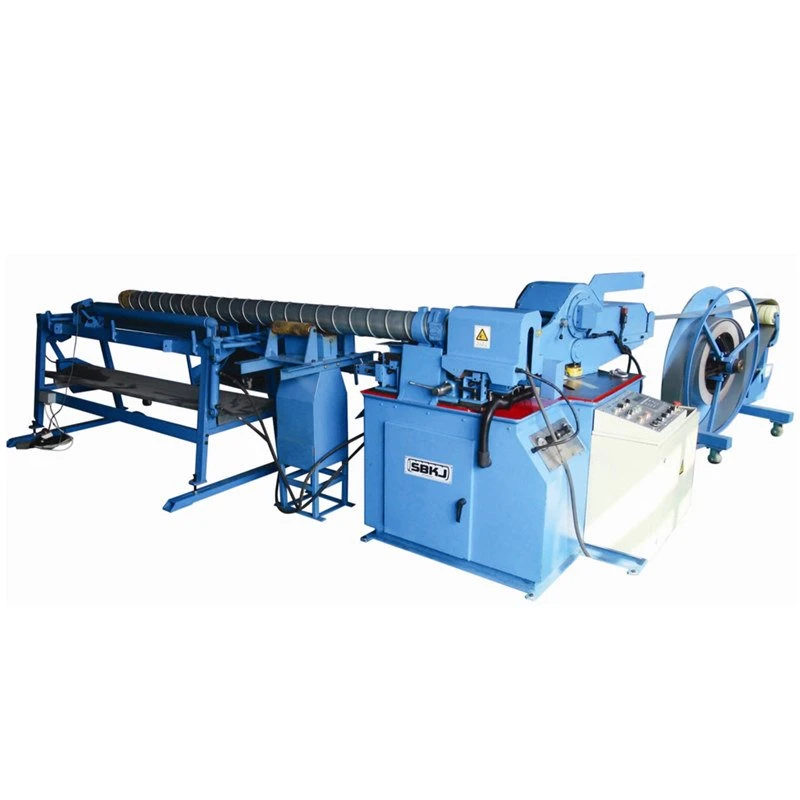

Spiral Tubeformer SBTF-2020

What are the Applications of Spiral Duct Forming Machine





HVAC industry

Spiral ducts are used in heating, ventilation, and air conditioning (HVAC) systems. The spiral duct forming machine is used to produce spiral ducts, connectors, and other fittings for HVAC systems.

Dust collection

Spiral ducts are used in dust collection systems to carry away dust and debris from industrial equipment. The spiral duct forming machine is used to produce high-quality spiral ducts that are durable and resistant to wear and tear.

Automotive industry

Spiral ducts are used in the automotive industry to transport air to various parts of the vehicle. The spiral duct forming machine is used to produce spiral ducts for air conditioning, heating, and ventilation systems in vehicles.

Food industry

Spiral ducts are used in the food industry to transport food products through processing and packaging lines. The spiral duct forming machine is used to produce hygienic and food-grade spiral ducts that are free from contaminants.

Aerospace industry

Spiral ducts are used in the aerospace industry to transport air and other gases through the aircraft's air conditioning and pressurization systems. The spiral duct forming machine is used to produce lightweight and high-strength spiral ducts that meet the strict standards of the aerospace industry.



Types of Spiral Duct Forming Machine

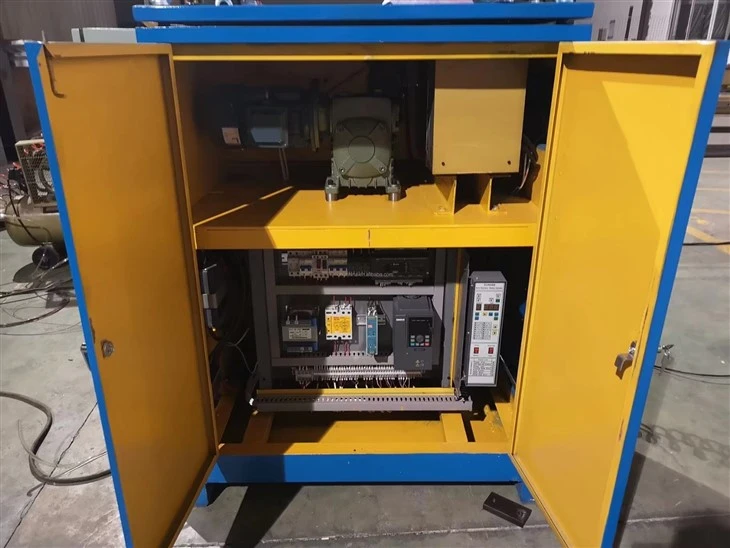

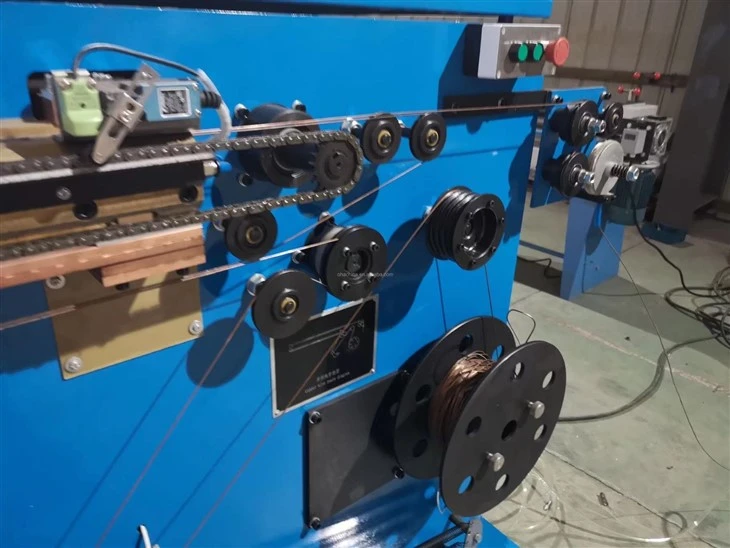

High Quality Straight Stitch Welder Seam Welder

Manual Spiral Duct Machine

This machine is operated manually and is suitable for small-scale operations. It requires the operator to manually feed the sheet metal into the machine and rotate it around the mandrel to form the spiral duct.

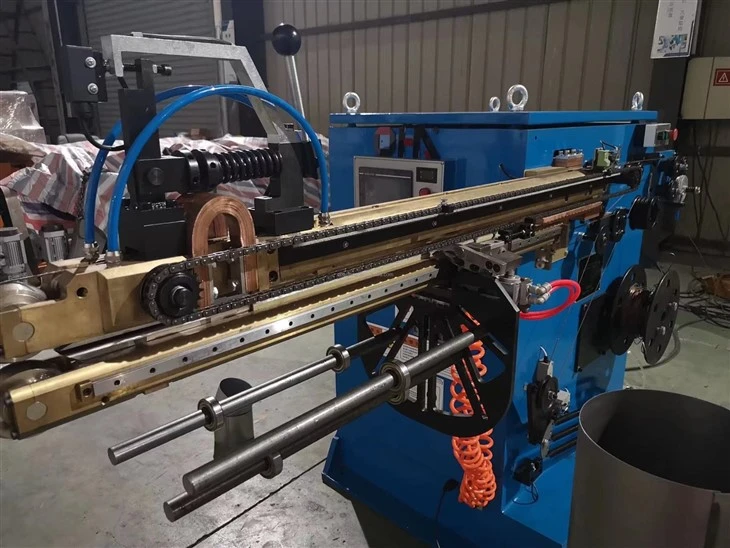

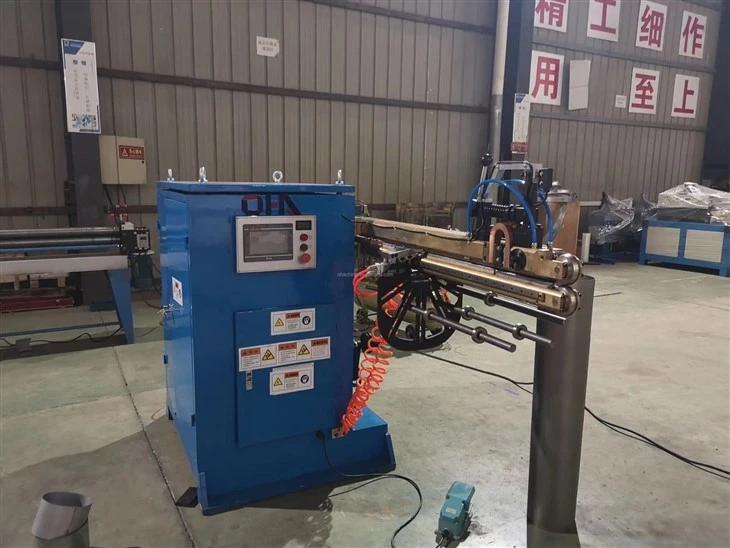

High Quality Straight Stitch Welder Seam Welder

Semi-Automatic Spiral Duct Machine

This machine is partially automated and requires less manual effort from the operator. It includes features like automatic sheet metal feeding, cutting, and forming.

High Quality Straight Stitch Welder Seam Welder

Fully-Automatic Spiral Duct Machine

This machine is fully automated and can produce spiral ducts of various sizes and shapes. It includes features like programmable controls, automatic material feeding, and cutting, thus reducing the need for manual labor.

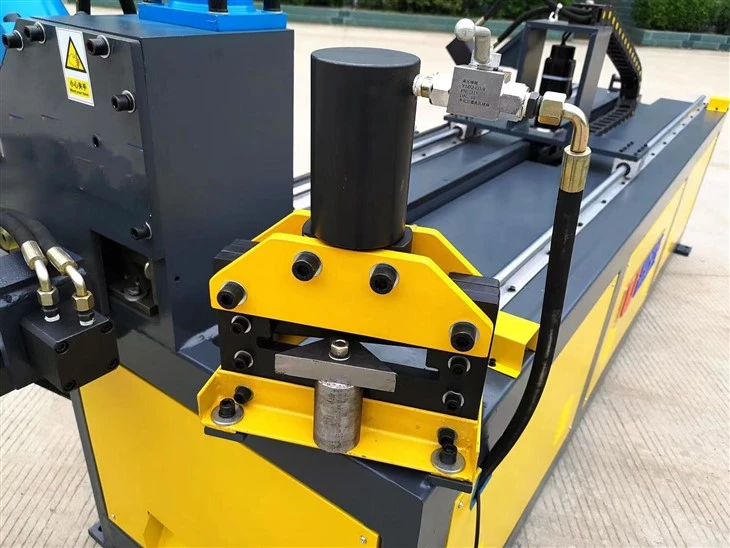

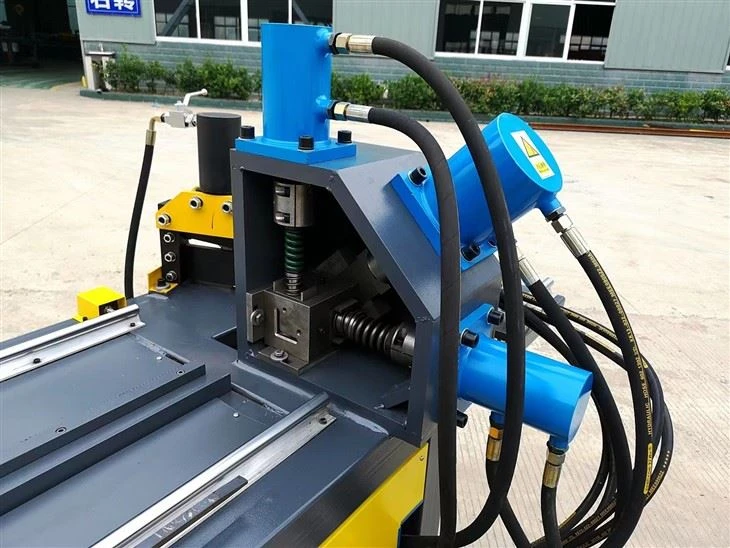

Angle Iron Flange Machine Production Line

Computer Numerical Control (CNC) Spiral Duct Machine

This machine is the most advanced type of spiral duct forming machine. It uses computer software to program the desired shape and size of the duct, which is then automatically fed into the machine for forming.

High Quality Straight Stitch Welder Seam Welder

Pocket Spiral Duct Machine

This machine is specifically designed to produce small diameter spiral ducts used in HVAC systems. It is compact and lightweight, making it easy to transport and operate.

Angle Iron Flange Machine Production Line

Double Head Spiral Duct Machine

This machine is efficient in producing two spiral ducts simultaneously, thus increasing productivity and reducing labor costs. It is suitable for large-scale production of spiral ducts.

Working Principle of Spiral Duct Forming Machine


The first step in the working principle of a spiral duct machine is coil strip loading and feeding The operator loads the slit coil onto the mandrel of the machine using a forklift. The machine operator then tightens the coil onto the mandrel to ensure that it is secure and ready for the next step. The coil is then fed into the machine through a feeding rack, which ensures that the strip is fed evenly into the machine.



The second step in the working principle of a spiral duct machine is strip leveling and pre-cutting. The leveling and pressing machine ensures that the strip is level and that any imperfections or irregularities are corrected. The strip is then pre-cut to the desired length before it is fed into the forming and welding machine. This step is important to ensure that the final product is of the correct size and shape.



The final step in the working principle of a spiral duct machine is forming and welding of spiral ducts. The strip is introduced into the pipe welding machine through the feeding machine, and the machine forms the strip into a spiral bite made of metal strips. The machine then welds the spiral bite together to create a thin-walled pipe that is round, without welding, air leakage, or water leakage. The automatic spiral duct machine cuts the spiral ducts to the desired length and shape using a sawtooth cutting method or plasma cutting, depending on the customer's requirements. The final product is a high-quality, durable spiral duct that can be used in a variety of applications, including HVAC systems and industrial ventilation.

Spiral Duct Forming Machine Features

Manual Cutting and Forming Processes

Spiral duct formers operate primarily via manual cutting and forming processes. While this implies more hands-on work, it can offer greater control over the duct formation process. Some businesses may prefer this approach for its potential to deliver a more personalized touch to the final product.

Limited Speed and Precision Controls

Unlike their machine counterparts, spiral duct formers offer limited speed and precision controls. While they can still produce high-quality ducts, the production speed and precision are generally less flexible and customizable.

Compatibility with Select Duct Sizes and Materials

When it comes to compatibility, spiral duct formers usually work with select duct sizes and materials. While they may not offer the same breadth of variety as spiral duct machines, they can still cater to a range of HVAC applications with appropriate planning and preparation.

Longevity and Durability of Spiral Duct Formers



Quality of Components and Construction Materials

Spiral duct machines are built with durable components and construction materials. Manufacturers prioritize quality to ensure these machines can withstand the demanding production environments they’re designed for.

Track Record of Reliability and Performance

Spiral duct machines have a proven track record of reliability and performance. They are extensively used in the industry and have undergone rigorous testing to ensure they consistently meet high standards.

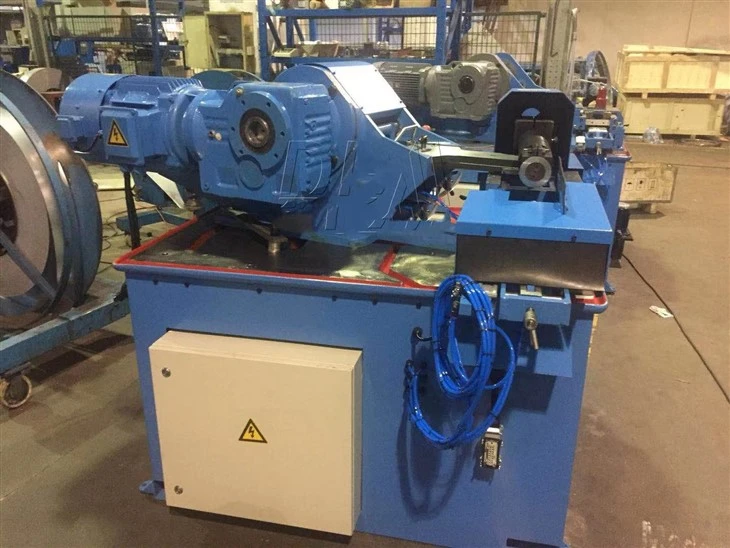

Air Duct Flange Forming Machine
The Process of Spiral Duct Forming Machine Includes the Following Steps



1

Material loading

The first step is to load the raw material, which is usually a coil of galvanized steel sheet or stainless steel sheet, into the machine.

2

Decoiling

Once the material is loaded, the spiral duct forming machine will automatically unwind the coil and feed the sheet into the machine.

3

Flattening

The sheet is then flattened to remove any wrinkles or curls, which could cause problems later in the forming process.

4

Cutting

The flattened sheet is then cut to the desired length by a cutting unit. The length of the sheet depends on the specifications of the duct to be formed.

5

Forming

The flat sheet is then fed into the forming unit, where it is bent and shaped into a spiral duct. The machine uses rollers and guides to shape the sheet into the desired spiral shape.

6

Seaming

The edges of the sheet are then seamed together using a seaming unit to create a tight, leak-proof seal.

7

Cutting to size

Once the duct is formed, it is cut to the desired length using a cutting unit.

8

Stacking and packaging

The finished spiral ducts are then stacked and packaged for shipping to the customer.

Maintenance Tips for Spiral Duct Forming Machine


Check for wear and tear

Regularly inspect your machine for signs of wear and tear caused by continuous use. Replacing worn-out parts as soon as possible can help prevent more serious problems.

Keep it clean

Make sure your machine is free from dust and debris to ensure efficient performance. Check the ducts, bearings, blades, rollers, and other moving parts for any buildup or contamination.

Regular maintenance

Schedule regular maintenance to ensure your machine is running optimally. This includes changing the oil and checking the machine’s bearings, seals, and electrical systems.

Stay up to date

Make sure you keep your machine updated with the latest software updates, and refresh all the components at regular intervals.

Ensure lubrication

Oil and grease are the lifeblood of an efficient duct forming machine. Ensure you use the right type of lubrication plan so your machine is running smoothly.

Choose the best materials

Select materials that your machine can handle with ease. Quality materials can help reduce the risk of damage and breakage, as well as lower your operating costs.
