Auto Line Duct Production Multifunctional Auto Duct

During feeding mechanism with pneumatic servo, the manipulator helps to ensure the stability and speed of the machine, as well as the accuracy of its positioning system.

Send Inquiry

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

Auto Line Duct Production Multifunctional Auto Duct

product-568-531

Duct line 5 is one of the Flagship product in the past few year, with linear structure, production time can reduce to thirty sec/piece.

This line is mainly being used to complete the TDF flange/Right-angle flange former (For Angle-iron Flange) or Drive cleat(optional).

Uncoiling, Straightening, Beading, Notching, Slitting, Pittsburgh lock forming, TDF flange forming, Angle-iron flange forming and Auto folding, all process will be finished just by input the dimensions of the duct from the HMI panel.This production line is easy of operation, stable performance and precise cutting.

Images Details

product-712-386

product-720-384

product-715-380

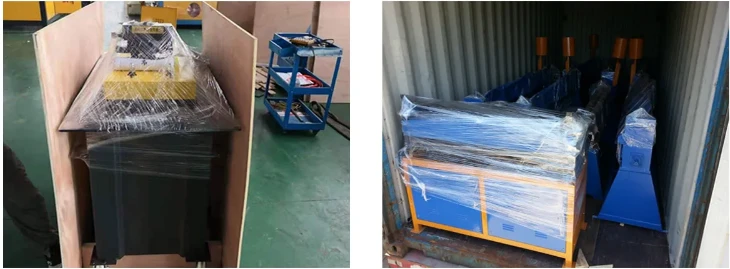

Packing & Delivery

product-705-278

product-730-269

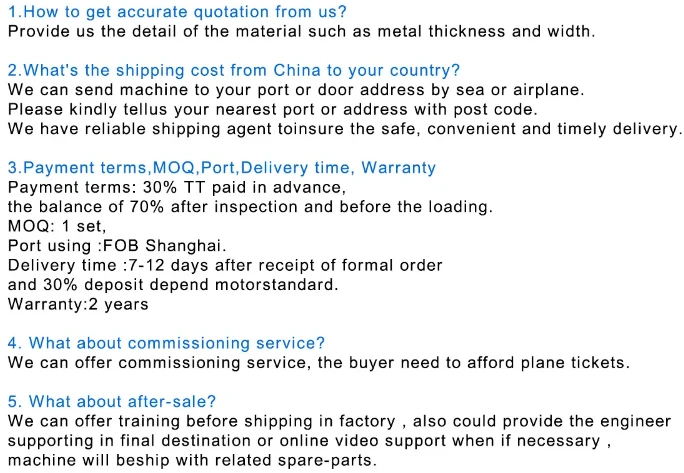

FAQ

product-684-473

Technical Data

Type	Thickness	Working speed	Width	Capacity	Weight	Dimension
SBAL-V-1550U	0.5-1.2 mm	12 m/min	1550mm	8000 kg/coil	21000kg	14635mm	4954mm	1300mm
SBAL-V-1250U	0.5-1.2 mm	12 m/min	1250mm	8000 kg/coil	16000kg	14132mm	4600mm	1326mm
