Air Duct Pittsburgh Lock Forming Machine Lock Former

Sheet steel square Pipe HVAC air duct pittsburgh snap Former machine Machine Features 1)Max thickness :1.2/ 1.5mm 2)Forming shape : pittsburgh , S cleat , C drive , Standing hem，snapnock，single hem ( or cutomzied shape ) There are mult different machine model for your choice based on your actual...

Send Inquiry

Download

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

Air Duct Pittsburgh Lock Forming Machine Lock Former

product-700-547

Machine Features

Lock forming machine is necessary in duct area because it can produce all kinds of types to meet locking requirements Standard machine can process 0.5-1.5mm galvanized sheet metal, and our company would specially introduce high strength rolling reels made of Gcr 15, a kind of steel which prolongs the machine lite by more than 5 times and improve the efficiency dramatically.

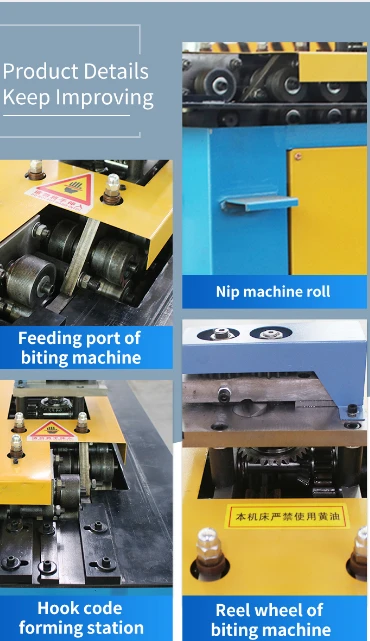

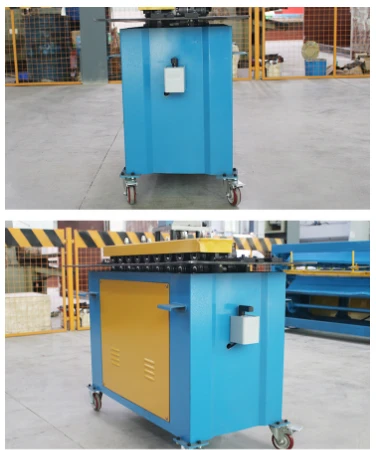

Images Details

product-376-450 product-370-641

Delivery & Shipping

product-791-315

Certificate

product-743-395

FAQ

Q: Are you trading company or manufacturer?

A:We are factory.

Q: How about your machine quality?

A: Doctson is a mature brand in China. Through our over ten years research in technology, our design including structure and detailed security and precision has enhanced greatly, and can match all the standard or more strict standard.

Technology Data

Type	SBLC-12/15	SBLC-12R/15R	SBLC-12DR/15DR	SBLC-12C/15C	SB-R12/15
Thickness	1.2-1.5mm	1.2/1.5mm	1.2/1.5mm	1.2/1.5mm	1.0/1.2mm
Forming shape
Power	1.5/2.2kw	1.5/2.2kw	1.5/2.2kw	1.5/2.2kw	1.5/2.2kw
Weight	210/280kg	230/290kg	230/300kg	150/163kg	150/163kg
Dimension	1050×570×770mm 1150×610×800mm	1050×570×920mm 1150×610×980mm	1050×570×920mm 1150×610×980mm	840×440×780mm 1040×440×780mm	840×440×780mm 1040×440×780mm
