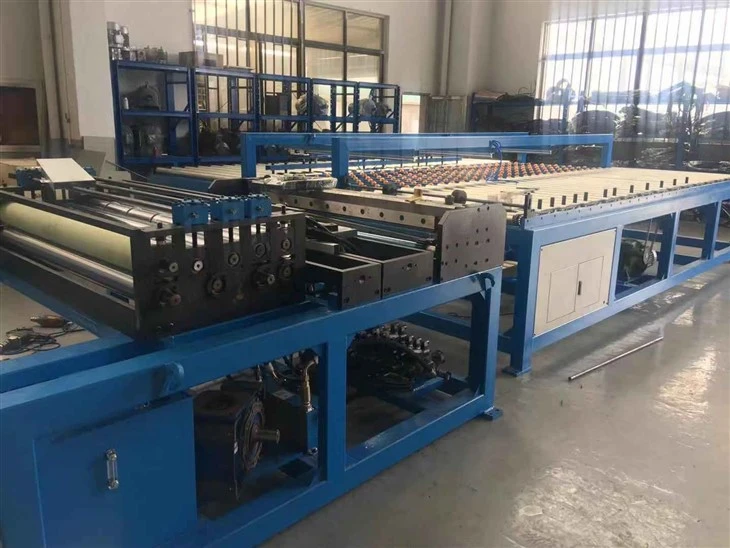

Square Duct Former Manufacture Auto Line Machine
Square duct former manufacture auto line machine Function It's mainly for TDF/angle steel/C-shaped flange forming with daily processing capability of 1000-2500 square meters. Only with inputting dimensions in duct, production line can automatically complete uncoiling , leveling, beading,...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

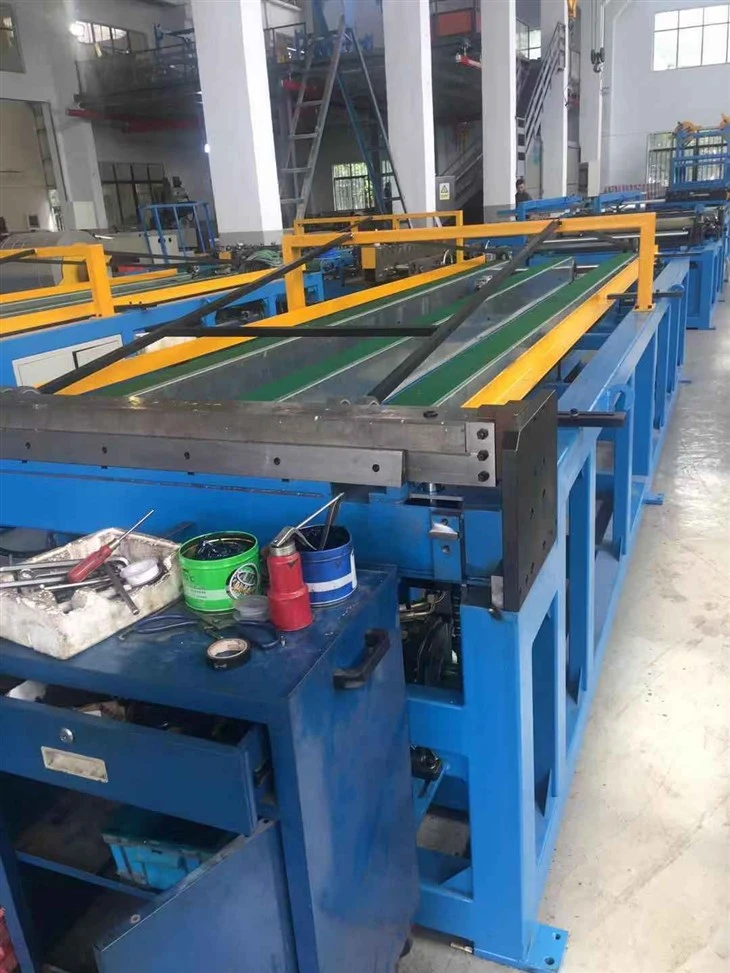

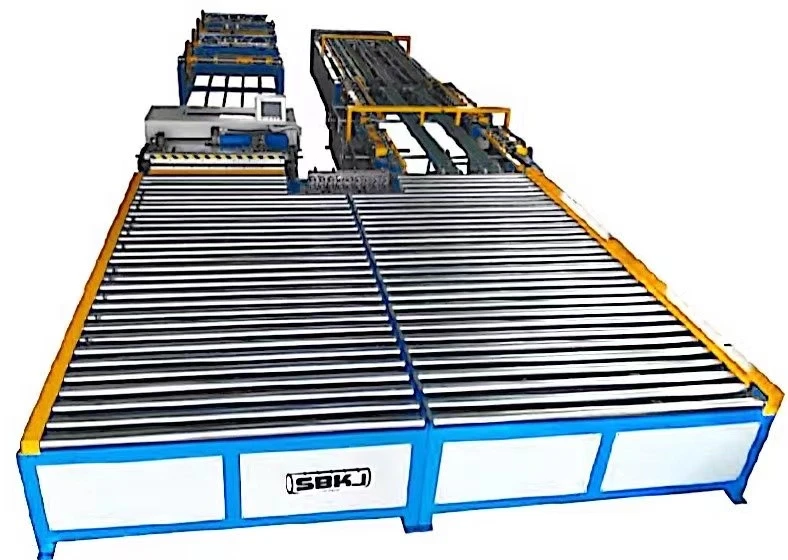

Square Duct Former Manufacture Auto Line Machine
Function
It's mainly for TDF/angle steel/C-shaped flange forming with daily processing capability of 1000-2500 square meters. Only with inputting dimensions in duct, production line can automatically complete uncoiling , leveling, beading, punching, shearing, locking, forming TDF/angle steel/C- shaped flange and folding.
Advantages

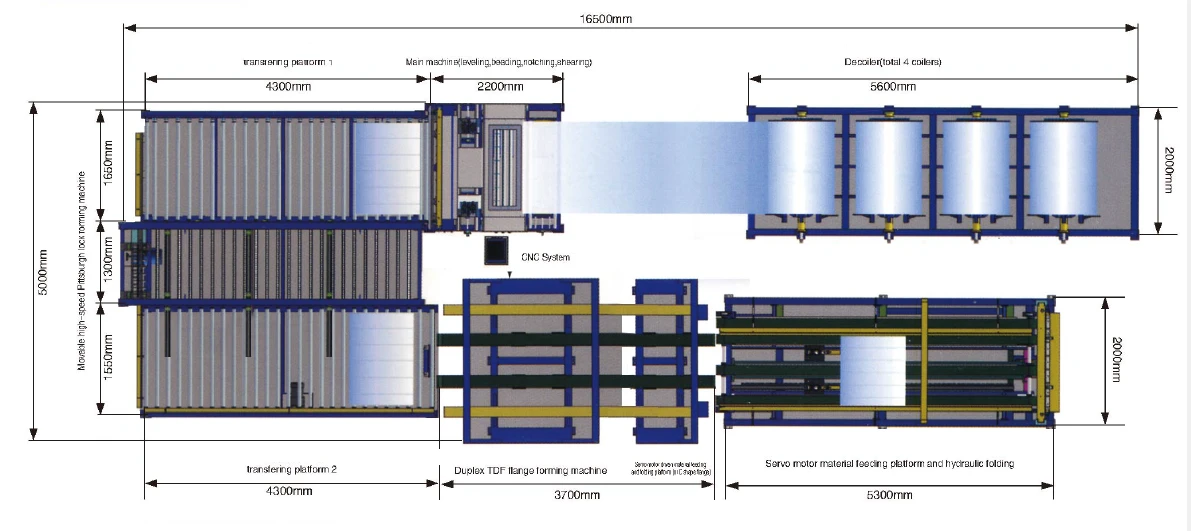

1. Machine is U-shaped, easy to install and it's suitable for small-sized or mid-sized work-shops because it occupies a small piece.

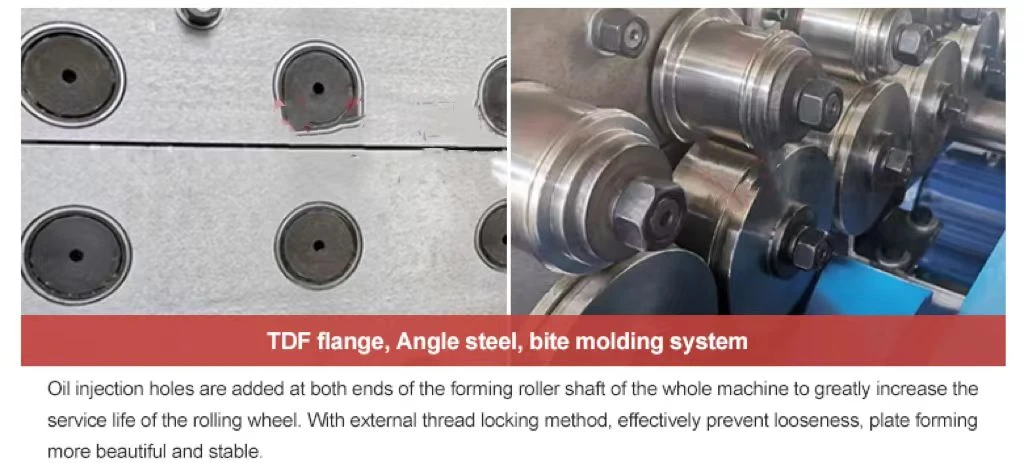

2. The injection holes are used at both ends of the drive shaft, to enhance the bearing life.
3. Power bending function is used to prevent generating the waste and make sure perfect bending accuracy.
4.It only takes 20-25 seconds to make one L-shaped workpiece and the efficiency will double comparing with the linear type.
5.Without moving back and forth the fixed locking machine is able to improve the efficiency.
6.All the rolling reels are made of bearing steel so that the lifetime prolongs by more than 5 times.
7. Under the material-saving mode of CNC system, waste is less than 20mm per roll.
8.With production memory functions, the production orders can be tracked and checked.
9.It only need one or two person to operate , Save a lot of labor and increase the production efficiency.
Main Import Configuration
1.Beijing Huade plus hydraulic system from Taiwan.
2.Japan Omron encoder.
3.Taiwan Hiwin linear guideways.
4.Schneider electrical system.
Basic Configuration
1.Two electric coil cradles, 4 material trays (8t each roll).
2.One rack.
3.One host (line 2 host).
4.Two stainless steel roller conveyer platforms.
5.One fixed joint locking machine.
6.One duplex TDF flange forming machine.
7.One duplex angle steel flange forming machine.
8.One servo feeding platform.
9. One hydraulic folding machine.
10.One set of computer controlling system.
Technical Data
|
Type |
Thickness |
Working speed |
Width |
Capacity |
Weight |
Dimension |
||
|
SBAL-V-1250 |
0.5-1.2mm |
12m/min |
1250mm |
8000kg |
15000kg |
24000mm |
3500mm |
1500mm |
|
SBAL-V-1550 |
0.5-1.2mm |
12m/min |
1250mm |
8000kg |
16000kg |
24000mm |
3800mm |
1500mm |

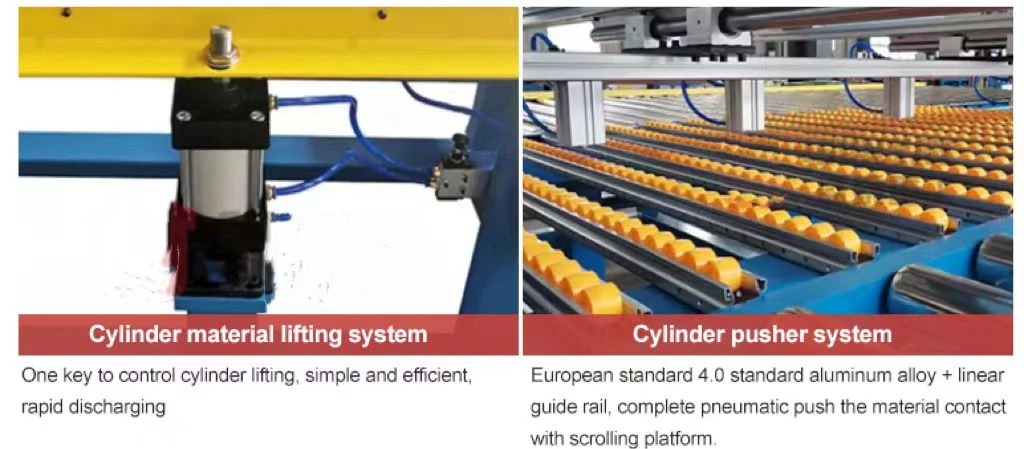

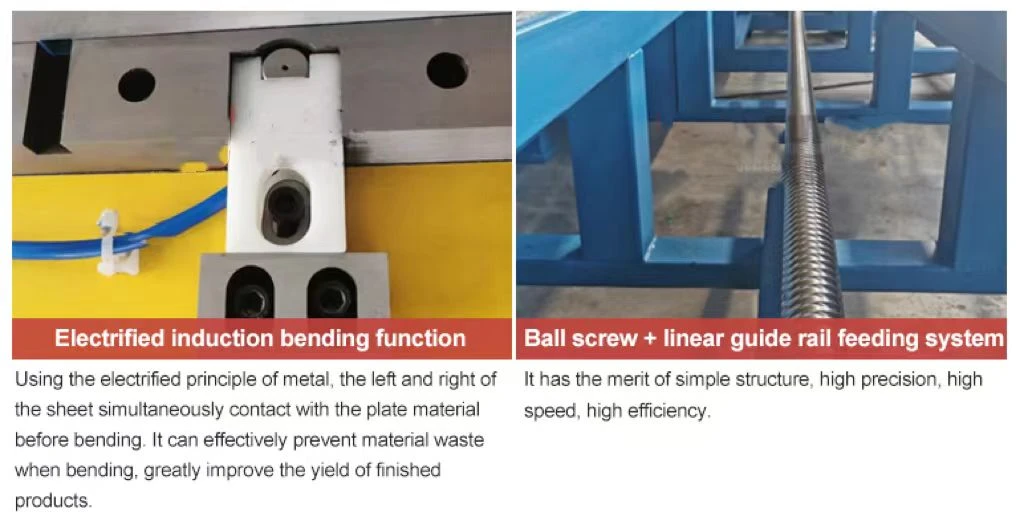

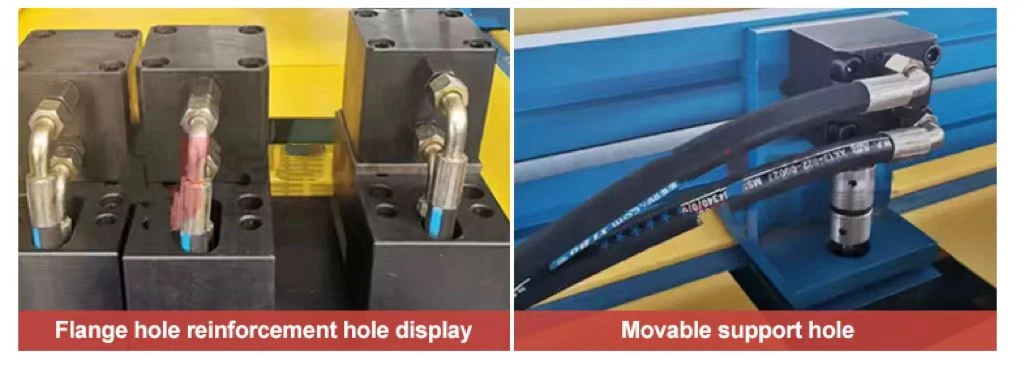

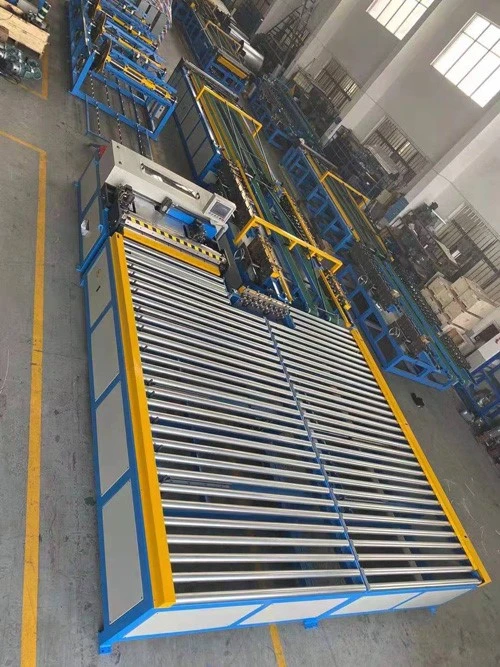

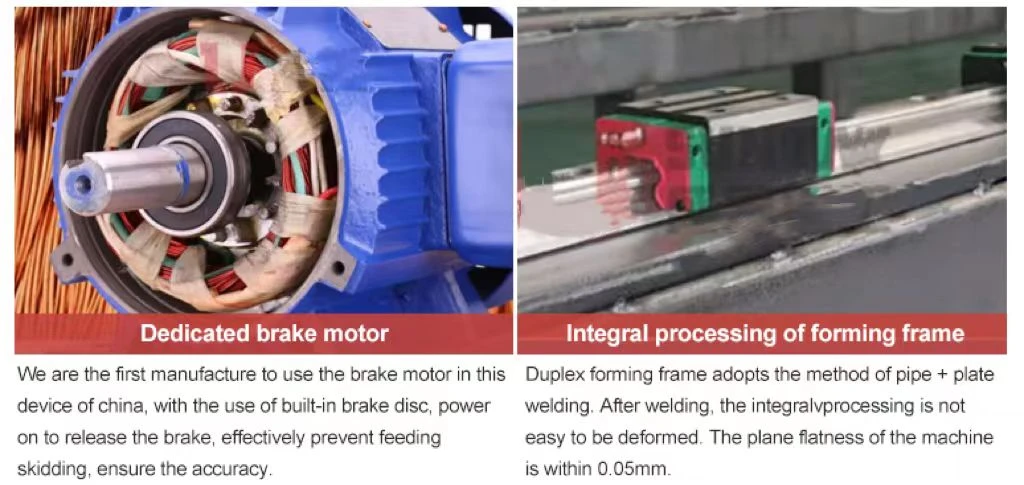

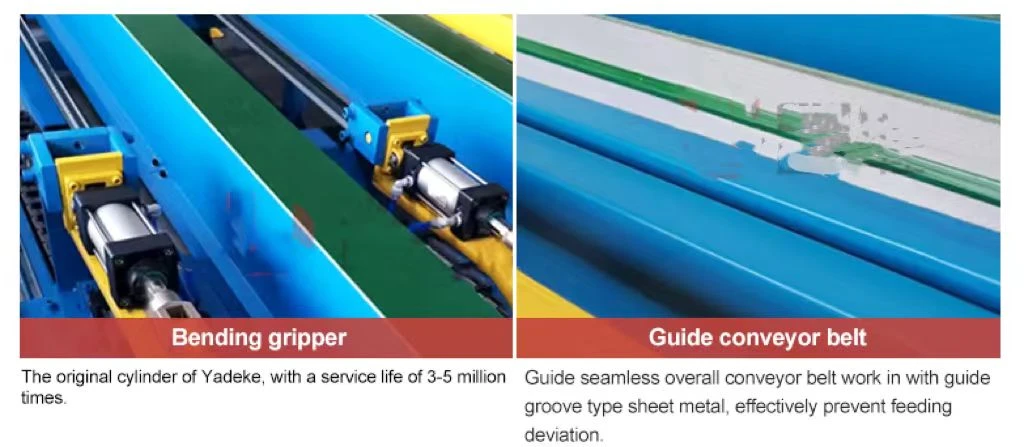

Details Images

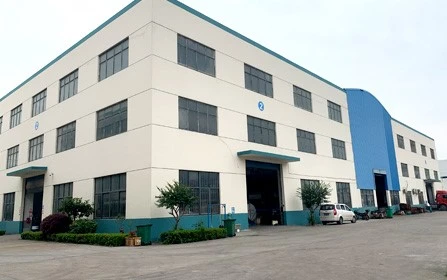

Our Factory
SBKJ SPIRAL TUBEFORMER is based in the Yangze River Delta, nearby Shanghai,China.Our company is a national new high-tech enterprise which is specialzed in the development and manufacture of machines,such as tube forming machines, plasma cutting machines, for the production of round ducting and fttings in sheet metal, mainly for the climate and ventilation industry. We have gotten the certificates of ISO9001:2000 and ce. Our customers from more than 60 countries in the world.
SBKJ's research and development is the comerstone for our automatic tubeformers that produce a higher qualty duct with reduced production costs. Several patented inventions, such as the Flying Slitter and Flying Crimper have established SBKJ as the foremost and leading innovator in spiral duct manufacturing.
Our highly trained technicians will install and set up each SBKJ machine and train your personnel on all facets of the machine's operation and maintenance. We sincerely welcome both domestic and international friends to cooperate with us.

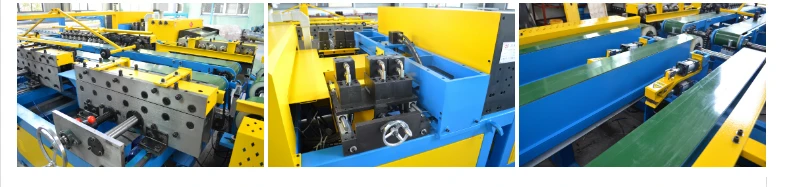

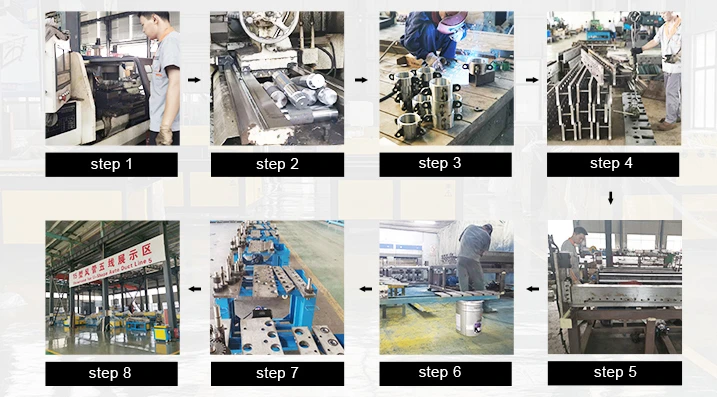

Workshop

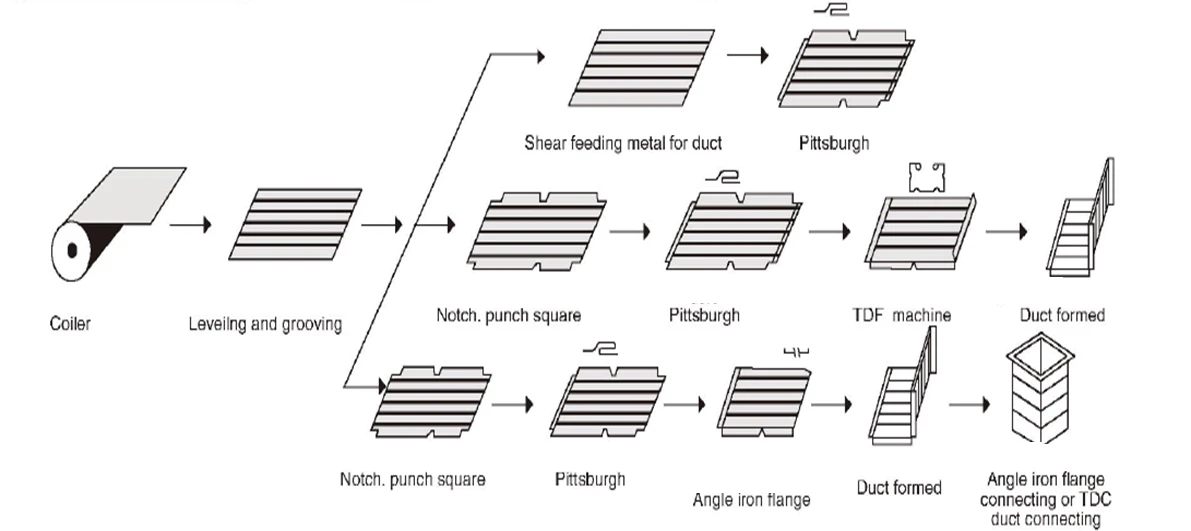

Process Flow

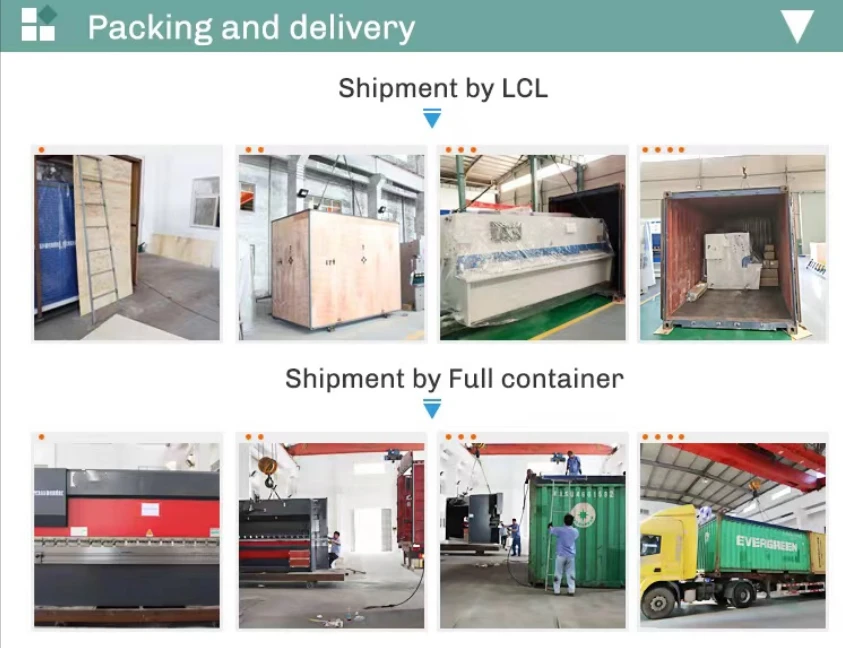

Packing & Shipping
FAQ
Technical Data
|
Type |
Thickness |
Working speed |
Width |
Capacity |
Weight |
Dimension |
||
|
SBAL-V-1250 |
0.5-1.2mm |
12m/min |
1250mm |
8000kg |
15000kg |
24000mm |
3500mm |
1500mm |
|
SBAL-V-1550 |
0.5-1.2mm |
12m/min |
1250mm |
8000kg |
16000kg |
24000mm |
3800mm |
1500mm |
