Steel Metal CNC Sheet And Tube Price Fiber Laser Cutting Machine
Size Metal CNC Fiber Laser Cutting Machine It is equipped with imported TBI Ball Screw, Delta Servo Motor and HIWIN Guide Rail The positioning accuracy of the machine can be 0 .02mm, to ensure the cutting quality of metal. Products Description It is fast speed mild steel CNC fiber laser cutting...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Steel Metal CNC Sheet Tube Price Fiber Laser Cutting Machine

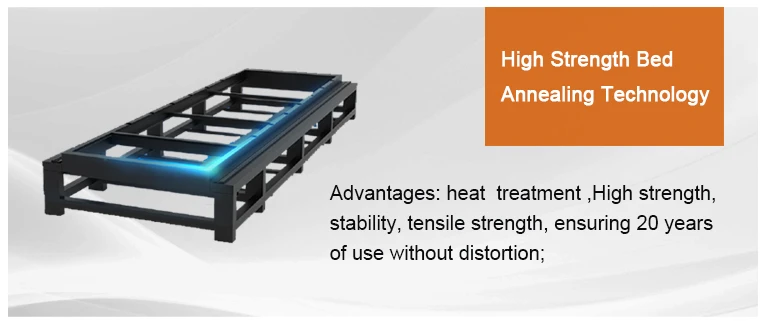

The bed is integrally welded, annealed to eliminate the internal stress treatment, and there is vibration aging after the rough machining, and then it is processed again. Thereby greatly improving the rigidity and stability of the machine tool, and ensuring the accuracy of the machine tool. The beam (Y axis). The beam(Y axis) is equipped with high-quality linear guide rails, driven by a servo motor. High-quality imported ball screws and a modular structure make the Z-axis slide plate realizes the reciprocating movement in the Y direction. During the movement, the limit switch controls the stroke to limit, and at the same time, there are elastic cushion on both ends as mechanical limiters to ensure the safety of the system.
Products Description

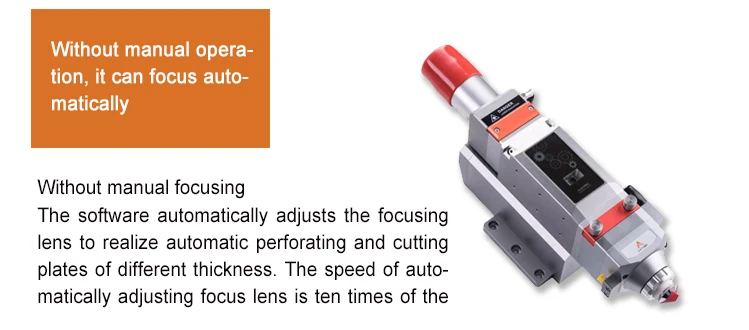

The machine use WSX laser head, which has sensitive sensing.
The optimized optical design and the digital height sensor can make the cutting more efficient. The dual water-cooled design allows the laser head to work stably for a long time under high power.

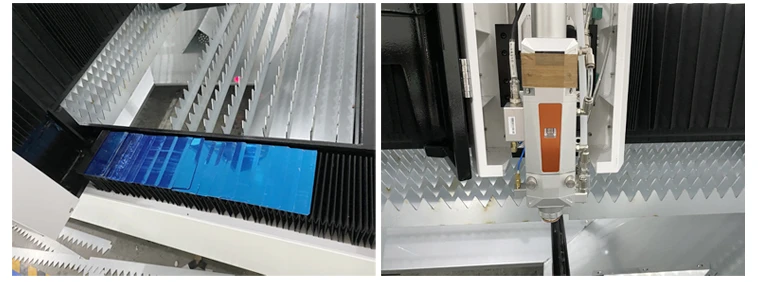

Details Images
Packing & Shipping
Certificate
FAQ
Product Paramenters
|
Model |
SBLC-4015/1500W |
|
Machine bed |
Square tube Welding |
|

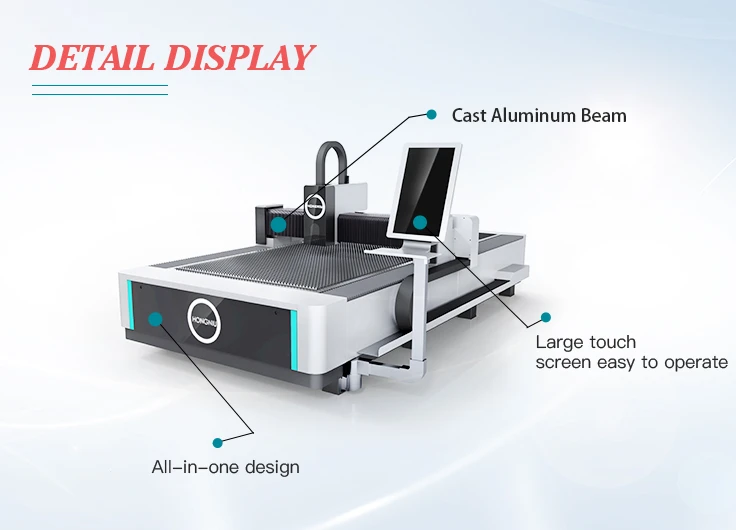

Gantry structure |
Cast Aluminum |
|
Working area |
4000x1500 |
|
Table load bearing |
1300kg |
|
Machine overall dimensions |
5719*2877*1950 |
|
Overall weight |
2560kg |
|
laser head |
Raytools |
|

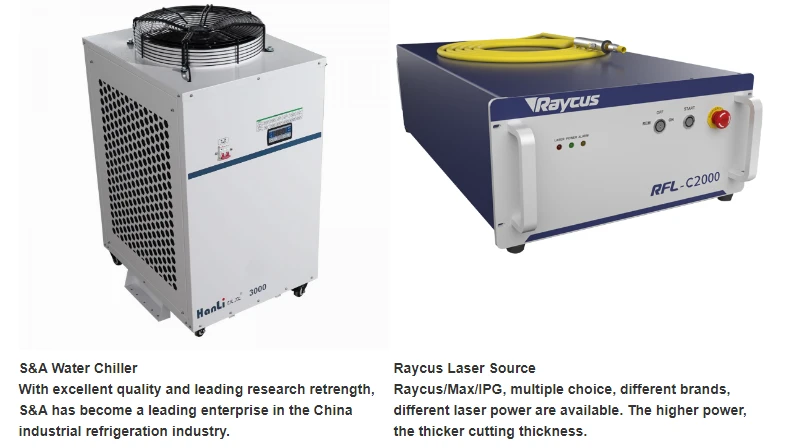

Laser source |
Raycus/IPG |
|
X-axis,Y-axis,Z-axisServo motor and driver |
Japan Fuji |
|
Control system |
FSCUT1000 |
|
Display size |
21.5 inches |
|
Max. linkage speed |
60m/min |
|
Max. acceleration |
0.8G |
|
Positioning accuracy |
±0.03mm |
|
Repositioning accuracy |
±0.02mm |
