Spotwelder
In the working process, when the two electrodes push the workpiece, the two metal layers form a specific contact resistance under the pressure of the two electrodes, forming two contact resistance points, and the welding current flows from one electrode to the workpiece.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

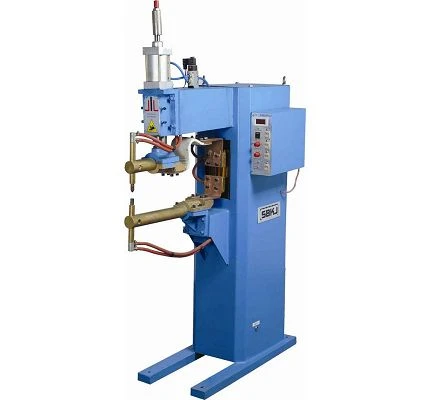

Spot Welding Machine
Description
Spot Welding Machine adopts the principle of double-sided double-point overcurrent welding. In the working process, when the two electrodes push the workpiece, the two metal layers form a specific contact resistance under the pressure of the two electrodes, forming two contact resistance points, and the welding current flows from one electrode to the workpiece. Other electrodes. In instantaneous thermal welding, the welding current from the other electrode flows along the two parts and instantly flows through the electrode to form a loop, which will not damage the internal structure of the welded workpiece.
After-sales service,we have professional technicians who can teach you how to operate machines by video and we can also provide engineer overseas service or you can send your workers to our factory in China to learn operation method.
Technical Data
|
Input voltage |
380V |
|
Input capacity |
40kva |
|
Rated load cycle |
12% |
|
Thickness |
1.5+1.5mm |
|
Max. pressure of electrode |
393N |
|
Electrode journey |
60mm |
|
Weight |
236kg |
|
Dimension |
1100×550×1700mm |
