Aluminum Flexible Duct Forming Machine For Ventilation Duct
Insulated Aluminum Flexible Duct Forming Machine Structure characteristics The Aluminum flexible duct forming machine makes the flexible working range from φ80 to φ500, thickness from 0.08 to 0.15mm. Ripple can be different by changing the mold. Speed is adjustable by computer to make sure the...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Insulated Aluminum Flexible Duct Forming Machine
Structure characteristics
The Aluminum flexible duct forming machine makes the flexible working range from φ80 to φ500, thickness from 0.08 to 0.15mm. Ripple can be different by changing the mold. Speed is adjustable by computer to make sure the operation easier.
The frame adopts full steel welding structure with enough hardness and rigidity. It also has been heated processed and highly frequently vibrated.
Adopting floor boring-milling machine for guaranteeing the precision.
|
Descriptions |
Unit |
SBLF-500 |
|
Diameter range |
mm |
φ80-φ500 |
|
Thickness |
mm |
0.08-0.15 |
|
Strip width |
mm |
60 |
|
Ripple |
|
4,5,6,7 Option 6 Standard |
|
Feeding speed |
m/min |
0-46 |
|
Lock form |
|
Double decked tabby locking |
|
Power |
kw |
2 |
|
Weight |
kg |
440 |
|
Dimension |
mm |
2210X830X1530 |

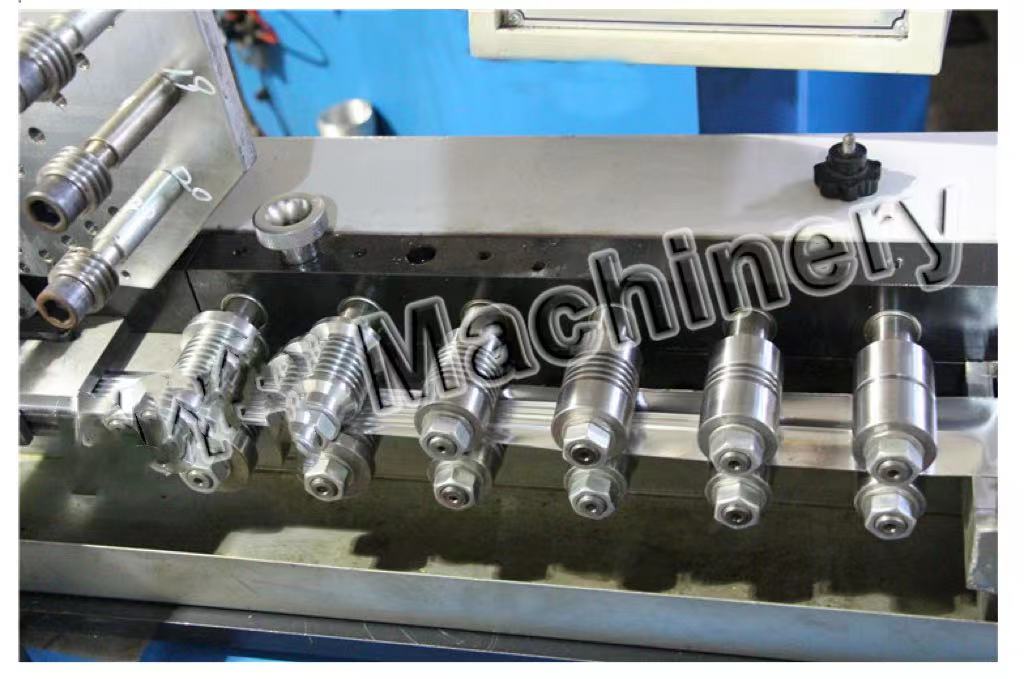

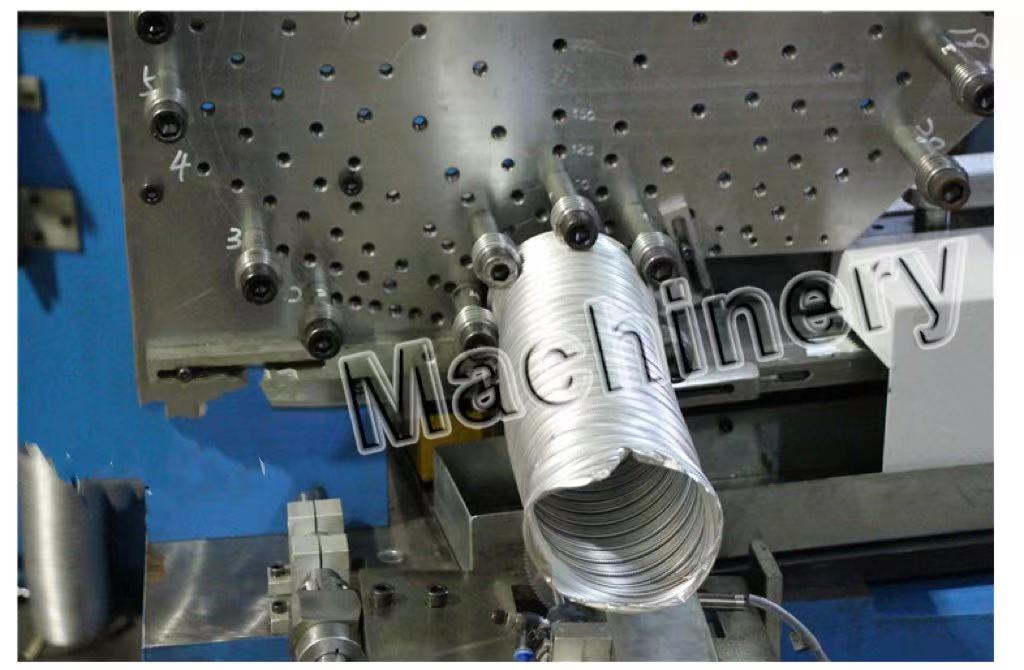

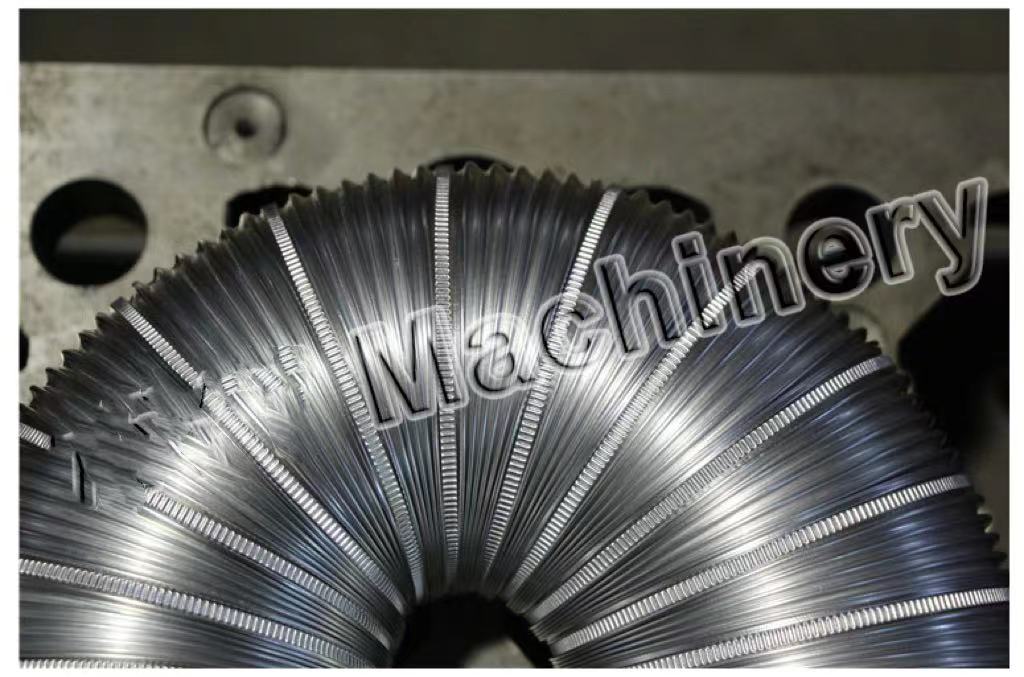

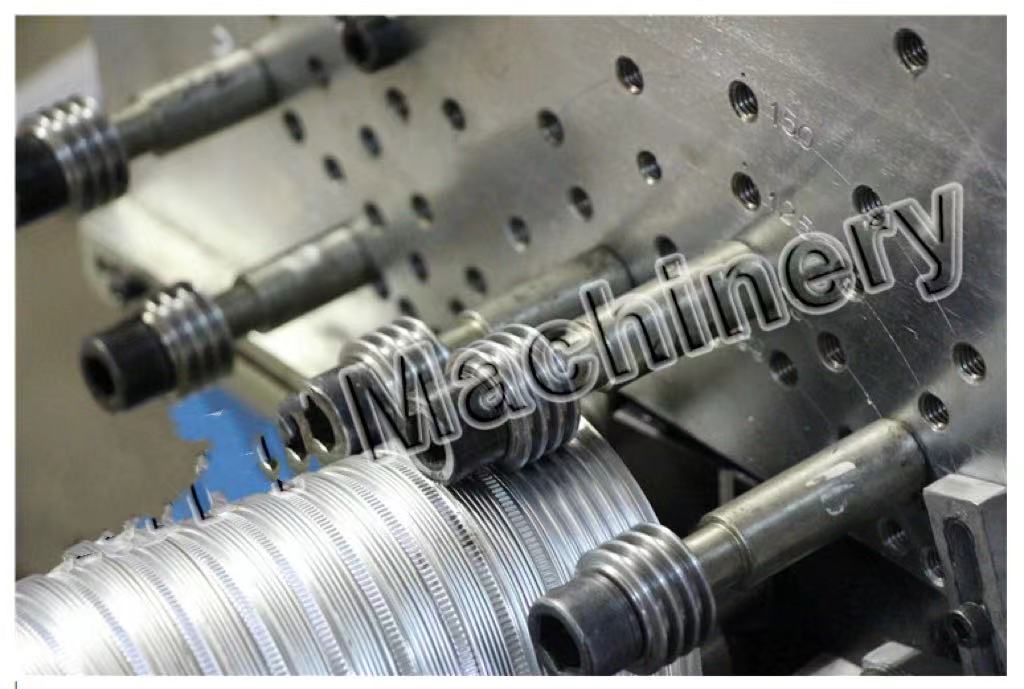

Detailed Pictures

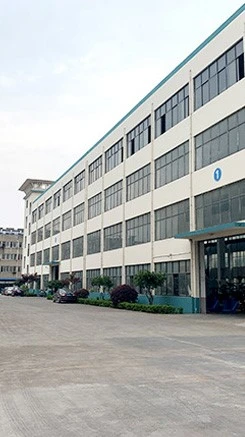

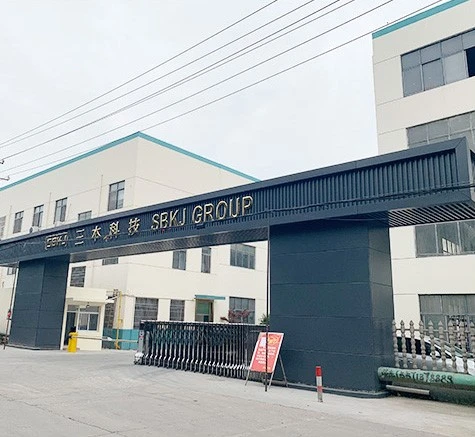

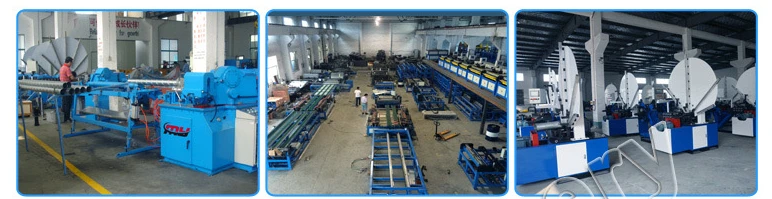

About Us

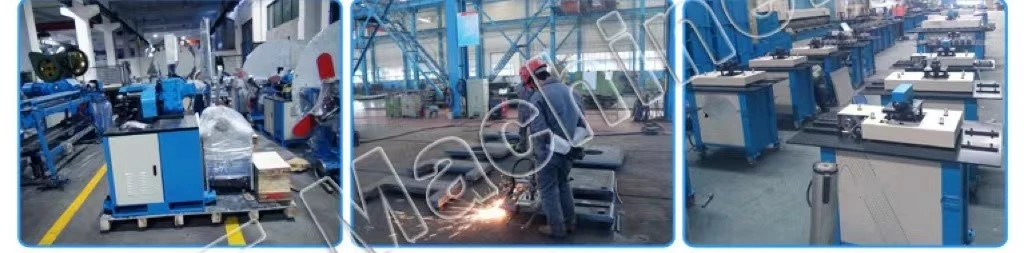

SBKJ SPIRAL TUBEFORMER is based in the Yangze River Delta, nearby Shanghai,China.Our company is a national new high-tech enterprise which is specialzed in the development and manufacture of machines,such as tube forming machines, plasma cutting machines, for the production of round ducting and fttings in sheet metal, mainly for the climate and ventilation industry. We have gotten the certificates of ISO9001:2000 and ce. Our customers from more than 60 countries in the world.
SBKJ's research and development is the comerstone for our automatic tubeformers that produce a higher qualty duct with reduced production costs. Several patented inventions, such as the Flying Slitter and Flying Crimper have established SBKJ as the foremost and leading innovator in spiral duct manufacturing.
Our highly trained technicians will install and set up each SBKJ machine and train your personnel on all facets of the machine's operation and maintenance. We sincerely welcome both domestic and international friends to cooperate with us.

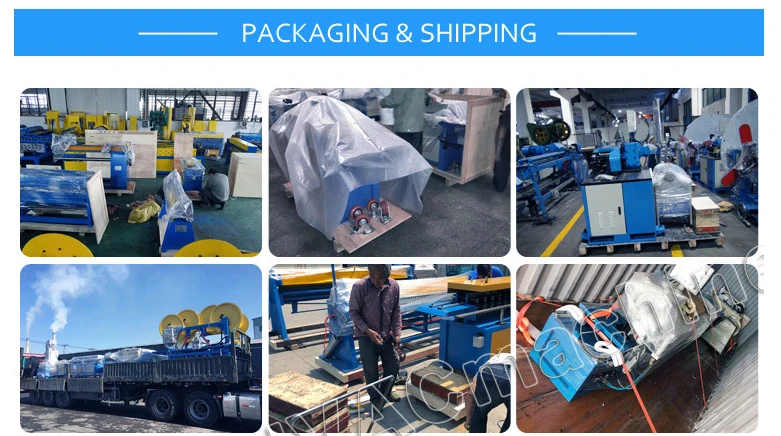

Packing & Shipping
Certificate
FAQ
