HVAC Duct Spiral Round Duct Forming Spiral Tubeformer
Round Pipe Spiro tubeformer Spiral air duct making machine Performance Features: 1. This machine cuts the pipe into preset length and required number of pieces with slitter cutter . 3. The cutting knife has the characteristics of no noise, no hot sparks on the knife edge, and no inclination of...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

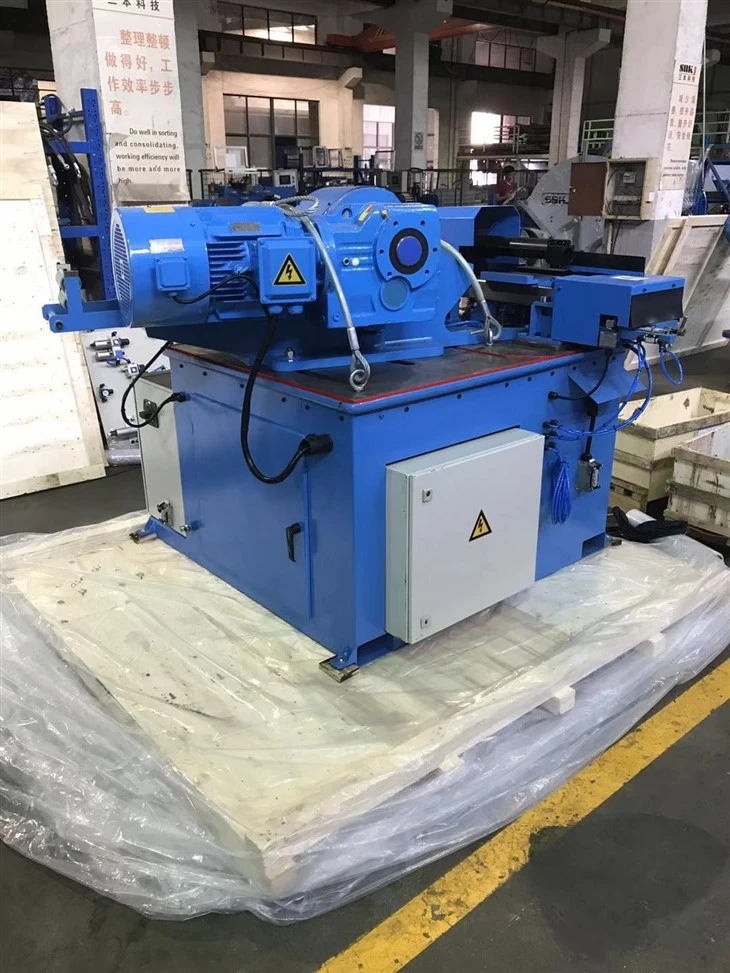

Round Pipe Spiro tubeformer Spiral air duct making machine
Performance Features:

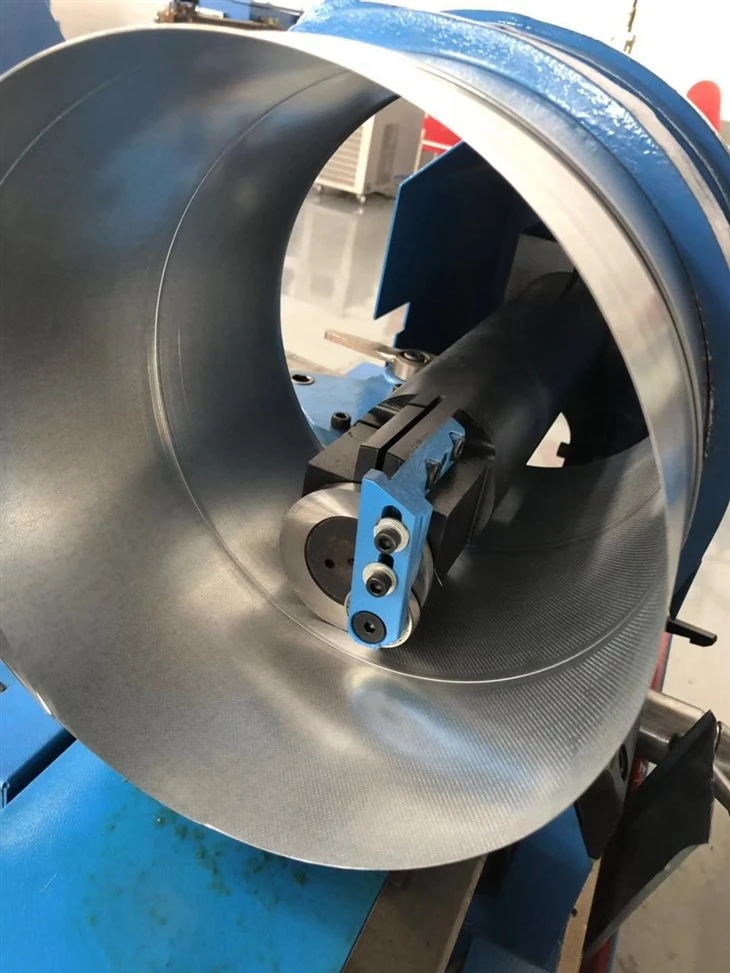

1. This machine cuts the pipe into preset length and required number of pieces with slitter cutter .
3. The cutting knife has the characteristics of no noise, no hot sparks on the knife edge, and no inclination of the cutting edge. Computer control guaranteed by modern industry.
3. Through the operation of the electric drive system, it can be ensured that the machine can produce coils with diameters that meet or even exceed the requirements of DIN, BS, Euronorm and Smacna standards even when using 1.2 mm coils.
4. The Model 1602 pipe forming machine also has adjustable job options to perform additional work items during production such as making strengthened weld beads, producing tendon sheet pipes, and automatically creating notches for METU flanges.
5. Model 1602 pipe forming machine is the choice of discerning customers.
Technical data
|
Diameter |
￠80 mm – ￠1600mm |
|
|
Thickness range |
Galvanized steel |
0.4 -1.3mm |
|
Stainless steel |
0.4-0.8mm |
|
|
Aluminum |
0.4-1.3mm |
|
|
Strip width |
Standard 137mm |
0.4-1.0 mm |
|
|
Standard 140mm |
1.1-1.3 mm |
|
Lock seam |
Outside lock seam, on the inside on request |
|
|
Working speed |
Max.60 m/min. depending on material |
|
|
Cutting system |
Slitting cutter |
|
|
Weight |
2900kg |
|
|
Dimension |
Main machine |
1900*2050*1500mm |
|
Decoiler |
1780*1130*1250mm |
|
|
Run-out table |
2700*950*1200mm |
|
Packing & Delivery
FAQ
Re:We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe, convenient and timely delivery.
Re:Payment terms: 30% TT paid in advance, the balance of 70% before the shipment.
Minimum order quantity: 1 set.
Warranty: 12 months.
FOB: Nanjing / Shanghai/or others port in CHINA.
Re:Fumigation-free plywood case or without package.
Re:We can offer commissioning service, the buyer need to afford air tickets.
Re:Warranty period of equipment lasts two year, during which the broken parts and spares caused by quality can be offered free.
Technical Data
|
Diameter |
￠80 mm – ￠1600mm |
|
|
Thickness range |
Galvanized steel |
0.4 -1.3mm |
|
Stainless steel |
0.4-0.8mm |
|
|
Aluminum |
0.4-1.3mm |
|
|
Strip width |
Standard 137mm |
0.4-1.0 mm |
|
|
Standard 140mm |
1.1-1.3 mm |
|
Lock seam |
Outside lock seam, on the inside on request |
|
|
Working speed |
Max.60 m/min. depending on material |
|
|
Cutting system |
Slitting cutter |
|
|
Weight |
2900kg |
|
|
Dimension |
Main machine |
1900*2050*1500mm |
|
Decoiler |
1780*1130*1250mm |
|
|
Run-out table |
2700*950*1200mm |
|
