Iron Sheet Making Round Pipe Air Duct Making Machine HVAC Duct Manufacturing Machine
Tube Formers are revolutionary automatic spiral tube formers that combine the most advanced technology with one of the smallest footprints in the industry. Unlike other compact models, SBKJ Tube Formers will not sacrifice speed, power, or technology.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

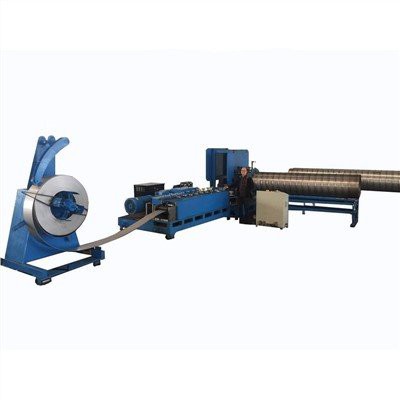

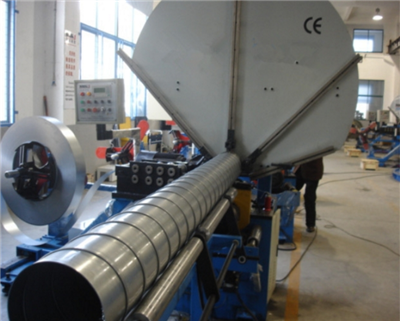

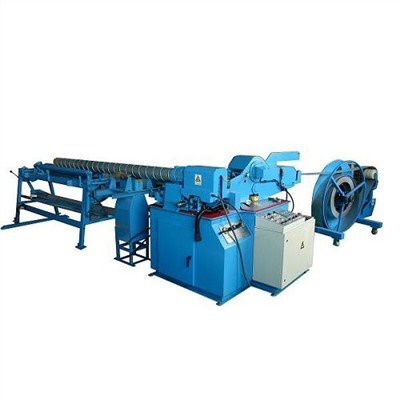

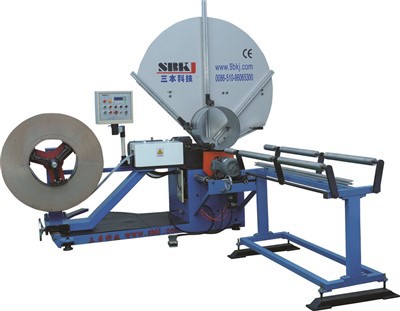

Harting HVAC Spiral Round Pipe Making Machine
Images Details
Packing & Delivery
|
Spiral duct machine |
SBTF-1602 |
|
Diameter range |
80 – 1600mm |
|
Thickness of strip |
galvanised steel 0.4 -1.3mm |
|
stainless steel 0.4-0.8mm |
|
|
Width of strip |
Standard 137mm 0.4-1.0 mm |
|
Standard 140mm 1.1-1.3 mm |
|
|
Cutting system |
The patentend flying slitter |
|
Motor power |
Msinframe 11KW Cooling water pump 0.25Kw |
|
Weight |
2900kg |
|
Dimension |
2000 mm×1700 mm×1450mm 2450mmX1200mmX1200mm 2000 mm×1100 mm×1300mm |
|
Voitage |
380V/50HZ/3PH |
