Spiral Tubeformer SBTF-1500
1. Steel strip mould, easy to adjust, and has its own patent, replace the mould more trouble and saving the material.
2. High-speed synchronous cutting system
3. PLC control, Convenient operation
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

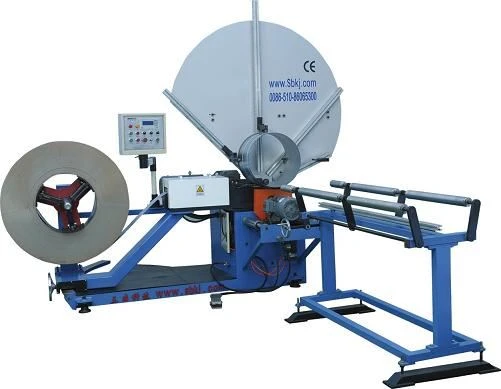

SPIRAL TUBEFORMER SBTF-1500
Description
1. Steel strip mould, easy to adjust, and has its own patent, replace the mould more trouble and saving the material.
2. High-speed synchronous cutting system.
3. PLC control, Convenient operation.
4. Can be on-site construction.
5. Can be adjusted.
6. High-quality products and high-quality services.
7. The system can handle galvanized sheet and Stainless steel, and aluminum sheet.
8. Automatic roll out of equipment.
9. Can produce the variety of different diameter spiral pipe.
About after-sales service, we have professional technicians who can teach you how to operate machines by video and we can also provide engineer overseas service or you can send your workers to our factory in China to learn operation method.
Technical Data
|
Diameter |
￠80 mm – 1500mm |
|
|
Thickness of strip |
Galvanized steel |
0.4 -1.2mm |
|
Stainless steel |
0.4-0.8mm |
|
|
Width of strip |
Standard 137mm |
|
|
Cutting system |
Saw blade cutter |
|
|
Lock seam |
Outside lock seam, on the inside on request |
|
|
Power |
Mainframe |
5.5kw |
|
Cutting power |
4kw |
|
|
Weight |
1708kg |
|
|
Dimension |
3400 ×2070 ×2720mm |
|
