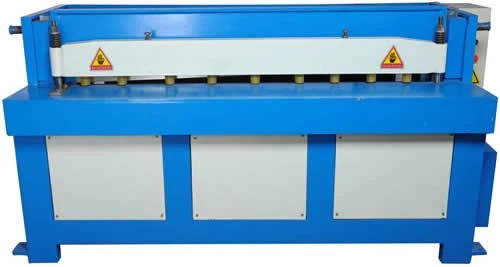

Electric Shearing Machine
SBKJ Shearing machine has simple structure, easy operation, elegant design, attractive appearance and low energy consumption. Mechanical shears Uses resist key structural form and open gear clutch transmission, and more advanced Electric operation (foot switch, manual switch) with low noise operation and easy maintenance.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Cut Machine
Customizable Voltage Options: This electric shearing machine can be customized to operate at three-phase 380V 50Hz or other voltage requirements, making it adaptable to various industrial settings.
Precise Cutting Capabilities: With a cutting angle of 1-15°, our metal cutting machine can accurately cut metal materials such as stainless steel and carbon steel with precision and efficiency.
Technical Data
|
Type |
SBQ11-3×1300 |
SBQ11-3×1500 |
SBQ11-4×2000 |
|
Thickness |
3 mm |
3 mm |
4 mm |
|
Width |
1300 mm |
1500 mm |
2000 mm |
|
Cutting Angle |
2°25′ |
2°25′ |
1°30′ |
|
Stroke No |
20 |
20 |
20 |
|
Area |
350 mm |
350 mm |
500 mm |
|
Power |
3 kw |
3 kw |
5.5 kw |
|
Weight |
1150 kg |
1800 kg |
2300 kg |
|
Dimension |
1990×1010×1120 mm |
2515×1500×1300 mm |
2650×880×1140 mm |
