Spiral Elbow Machine
The high-volume Gorelocker produces vertical seam elbows and reducers. Two independent workstations, the flanging station and the seaming station, achieve a high degree of flexibility.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

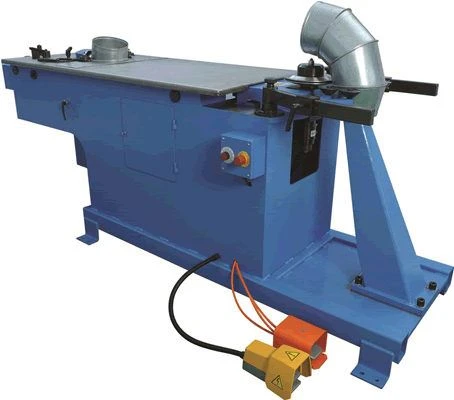

GORELOCKER SBEM-1250
Description
The high-volume Gorelocker produces vertical seam elbows and reducers. Two independent workstations, the flanging station and the seaming station, achieve a high degree of flexibility. Therefore, the machine can run at any time without time-consuming conversion. Standing seams reduce welding to only one longitudinal seam and increase stiffness.
About after-sales service, we have professional technicians who can teach you how to operate machines by video and we can also provide engineer overseas service or you can send your workers to our factory in China to learn operation method.
Technical Data
|
Diameter |
φ100 -1250mm |
|
|
Thickness |
GI |
0.4-1.2mm |
|
SS |
0.4-0.8mm |
|
|
Aluminum |
0.5-1.2mm |
|
|
Max. Working speed |
120 m/min |
|
|
Hydraulic Oil |
55L |
|
|
Consumption of com-pressed air |
75L/hour 6bar |
|
|
Power |
Main machine |
4kw |
|
Cooling Fan |
120w |
|
|
Weight |
750kg |
|
|
Dimension |
2700 ×900×1100mm |
|
Technical Data
|
Diameter |
φ100 -1250mm |
|
|
Thickness |
GI |
0.4-1.2mm |
|
SS |
0.4-0.8mm |
|
|
Aluminum |
0.5-1.2mm |
|
|
Max. Working speed |
120 m/min |
|
|
Hydraulic Oil |
55L |
|
|
Consumption of com-pressed air |
75L/hour 6bar |
|
|
Power |
Main machine |
4kw |
|
Cooling Fan |
120w |
|
|
Weight |
750kg |
|
|
Dimension |
2700 ×900×1100mm |
|
