Sheet Metal Elbow Making Machine

Sheet metal elbow making machine





Advantage of Products

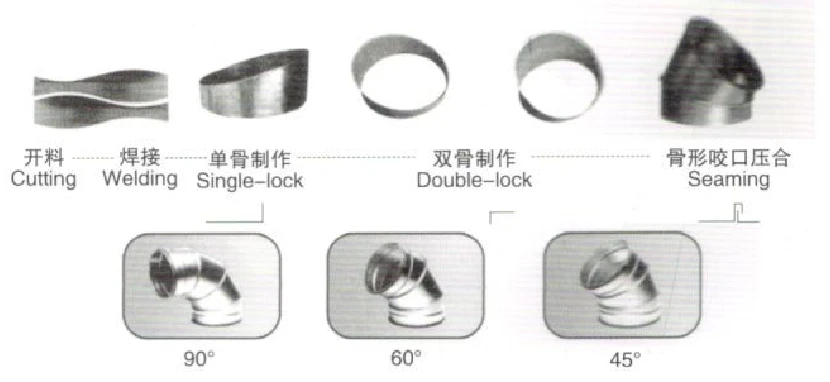

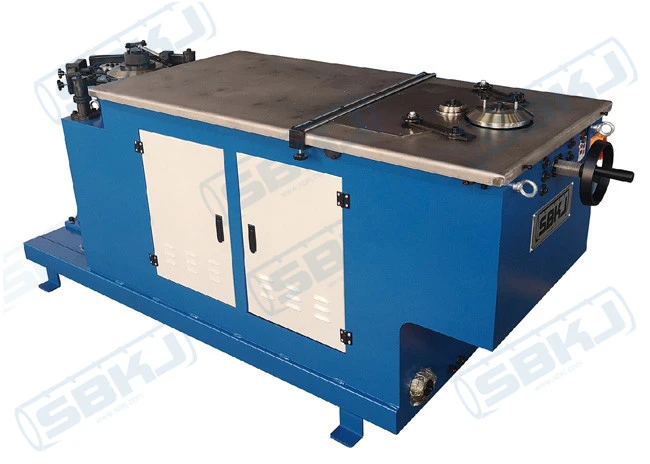

Horizonal shrimp elbow machine produced by our company,also known as circular tube elbow bend(shrimp)docking bite on special equipment. Pipe diameter range from 100-1500mm.Minimum can do 100mm diameter,sealing good shape appearance at the same time is also very beautiful.

The machine has the reasonable structure. The advantages of stable performance,practical and efficient,easy to operate,purchase the straightness good bone type, size precise angle. After occlusion of duct sealing tall, strong and durable.

Dried shrimp elbow bend machine mainly used air conditioning hvac.



1. Dual working station.

2. Max. flexibility – eliminates equipment's changing over and reduces tool's changing.

3. Higher production speed.

4. Flanging speed Up to 4m per minute.

5. Higher capacity.

6. Material thickness: up to 1.5mm Galvanized steel &1.0mm stainless steel.

7. Improved seam's quality.

8. Optimized roller's profile.

9. Virtually no maintenance.

10. No lubrication & all rotating parts made of hardened, high grade steel.

11. Manufacture of segment bends, reducers, end covers and offsets & attachment of cams for METU system.

12. 2 separate workstations achieve high flexibility: a flanging station and a closing station. Machine is always ready for operation without time-consuming conversion.



Technical Data



Type	SBWT-1000	SBWT-1500	SBWT-1000A Frequency Control(Male/Female)	SBWT-1500A Frequency Control(Male/Female)	SBWT-1000D Frequency Control(Male/Female/ Seam Lock)	SBWT-1500D Frequency Control(Male/Female/ Seam Lock)
Thickness	1.2mm	1.5mm	GI 0.4-1.2mm SS 0.4-1.0mm	GI 0.4-1.8mm SS 0.4-1.2mm	GI 0.4-1.2mm SS 0.4-1.0mm	GI 0.4-1.8mm SS 0.4-1.2mm
Diameter	￠120-1150mm	￠120-1500mm	￠120-1000mm	￠120-1500mm	￠120-1000mm	￠120-1500mm
Working speed	35r/min	35r/min	75r/min	75r/min	75r/min	75r/min
Power	1.5Kw×2	2.2Kw×2	1.5Kw×2+2.2kw/1	2.2Kw×2+4kw/1	1.5Kw×2+2.2kw/2	2.2Kw×2+4kw/2
Weight	600Kg	700Kg	600Kg	660Kg	600Kg	660Kg
Dimension	2080×720×895mm	2450×720×895mm	2080×700×895mm	2450×700×895mm	2080×700×895mm	2450×700×895m



Packing & Delivery





Certificate





FAQ



1. How to get a accurate quotation from us?

Provide us the detail of the material such as metal thickness and width.



2. What's the shipping cost from China to your country?
We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe, convenient and timely delivery.



3. Payment terms, MOQ, warranty, FOB?
Payment terms: 30% TT paid in advance, the balance of 70% before the shipment.
Minimum order quantity: 1 set, FOB Shanghai.
Delivery time :7 days after receipt of formal order and 30% deposit.
Warranty:12 months.





4. What's the package?
Fumigation-free plywood case or without package.





5. What about commissioning service?
We can offer commissioning service, the buyer need to afford plane tickets.





6. What's policy for guarantee and broken parts?
Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free.



Our Services



Presale service: Supply item design,process design. Help you chose the fit machine. Manufacture the machine according to your and accessories.

Sale service: Acceptance of equipment together with you. Offer you help to make the operating instruction. Any other help you need.

Aftersale service: One year warranty. Free repair whole using life(without the freight and accessories charge).

Technical Data



Type	SBWT-1000A Frequency Control(Male/Female)	SBWT-1500A Frequency Control(Male/Female)	SBWT-1000D Frequency Control(Male/Female/ Seam Lock)	SBWT-1500D Frequency Control(Male/Female/ Seam Lock)
Thickness	GI 0.4-1.2mm SS 0.4-1.0mm	GI 0.4-1.8mm SS 0.4-1.2mm	GI 0.4-1.2mm SS 0.4-1.0mm	GI 0.4-1.8mm SS 0.4-1.2mm
Diameter	￠120-1000mm	￠120-1500mm	￠120-1000mm	￠120-1500mm
Working speed	75r/min	75r/min	75r/min	75r/min
Power	1.5Kw×2+2.2kw/1	2.2Kw×2+4kw/1	1.5Kw×2+2.2kw/2	2.2Kw×2+4kw/2
Weight	600Kg	660Kg	600Kg	660Kg
Dimension	2080×700×895mm	2450×700×895mm	2080×700×895mm	2450×700×895m
