Round Duct Slip Roll Machine Electric 3 Rolls Plate Rolling Machine

Round Duct Slip Roll Machine Electric 3 Rolls Plate Rolling Machine

Asymmetric electric rolling machine' s upper roller is hand-adjusted up and down. They bend aluminum, copper and zinc to make stainless steel and basic steel, as well as steel and storage tank structures, heating, air conditioning, ventilation structures, metal processing and roofing, and industrial mass production.

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction

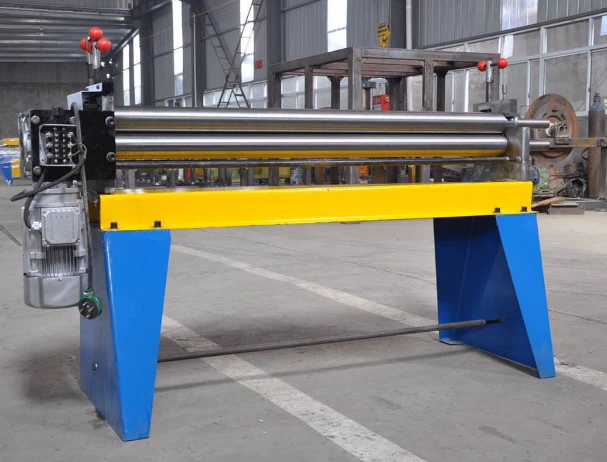

Round Duct Slip Roll Machine Electric Rolls Plate Rolling Machine



product-607-462



Description

3 rollers hand rolling machine manual metal roller for small plate bending.
Manual/Hand rolling machine, used for thin metal plate rolling; min rolling diameter 100 mm.
Main features:
1.The roller adopts high strength and high life solid bearing roller with long time and small deformation.
2.The driving gear adopts forging high carbon steel, high hardness and strong wear-resisting property.
3.The whole machine adopts integral steel plate welding, thick and beautiful, the stability is good.
4.Simple operation, single person can work independently.



product-753-287



Images Details



product-726-478

product-730-122

product-737-473

product-728-95



Packing & Shipping



product-739-446



FAQ



Quality Assurance: 1 year warranty and 100% quality inspection before packing.



Service: Impeccable after-sale service, and all your problem will be solved within 24 hours.



Price: Can be negotiable according to the qty.



MOQ:1 set.



How to visit: You can fly to Shanghai airport directly, you can also take high- speed train to Nanjing South Station from other city in China. We will pick you up in the airport or Train station.

Parameter Data



Type

SBW11G-2×1020

SBW11G-1.5×1270

SBW11G-1.2×1530

Max. Thickness

2mm

1.5mm

1.2mm

Max. Width

1000mm

1300mm

1530mm

Yield limit

245mm

245mm

245mm

Min. diameter

100mm

100mm

100mm

Top roller diameter

73mm

73mm

73mm

Bottom roller diameter

73mm

73mm

73mm

Power

1.5kw

1.5kw

1.5kw

Weight

220kg

240kg

280kg

Dimension

1540×550×1110mm

1780×550×1110mm

2040×550×1110mm
