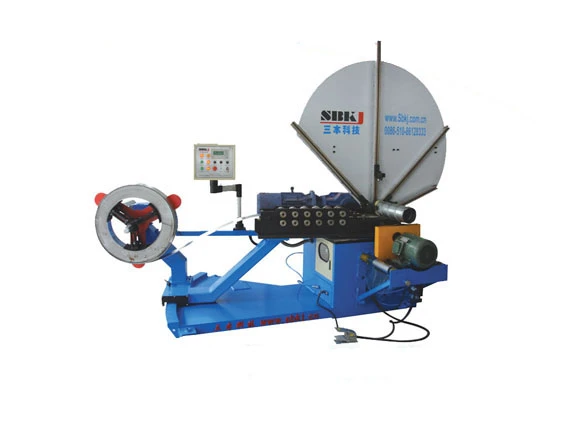

Spiral Tube Ducting Making Machine

Spiral Duct Manufacturing Machine Round Air Duct Making Machine





Main Features

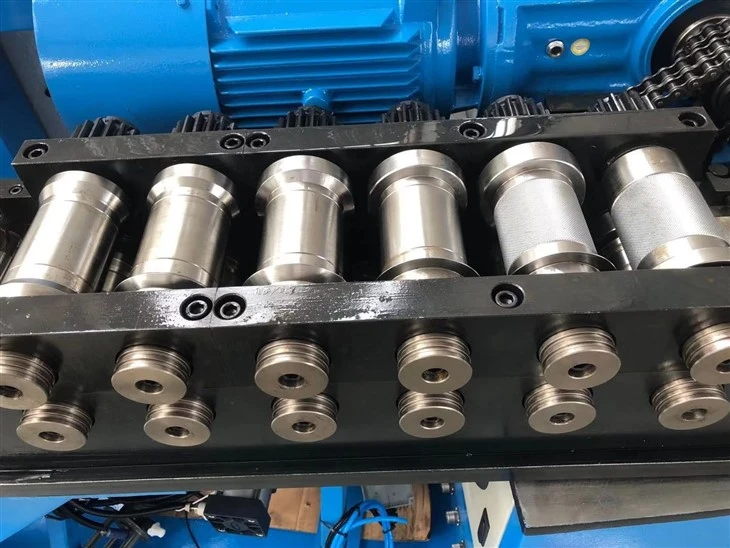

1. patented mold, easy to adjust, replace the mold more trouble and save the province of materials.

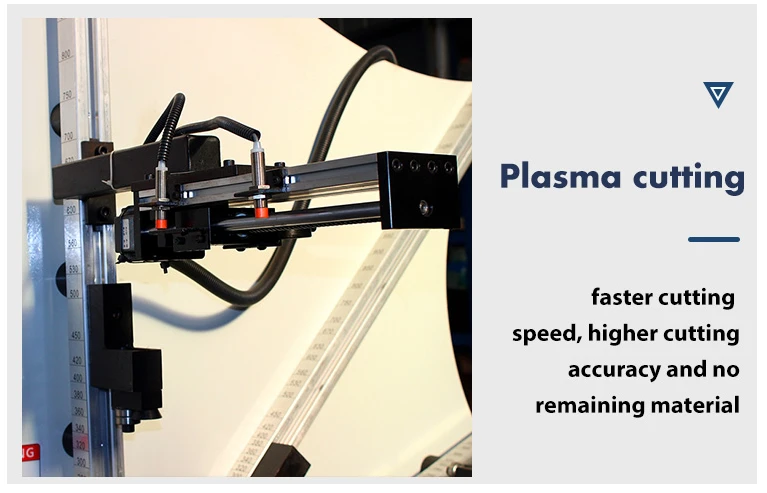

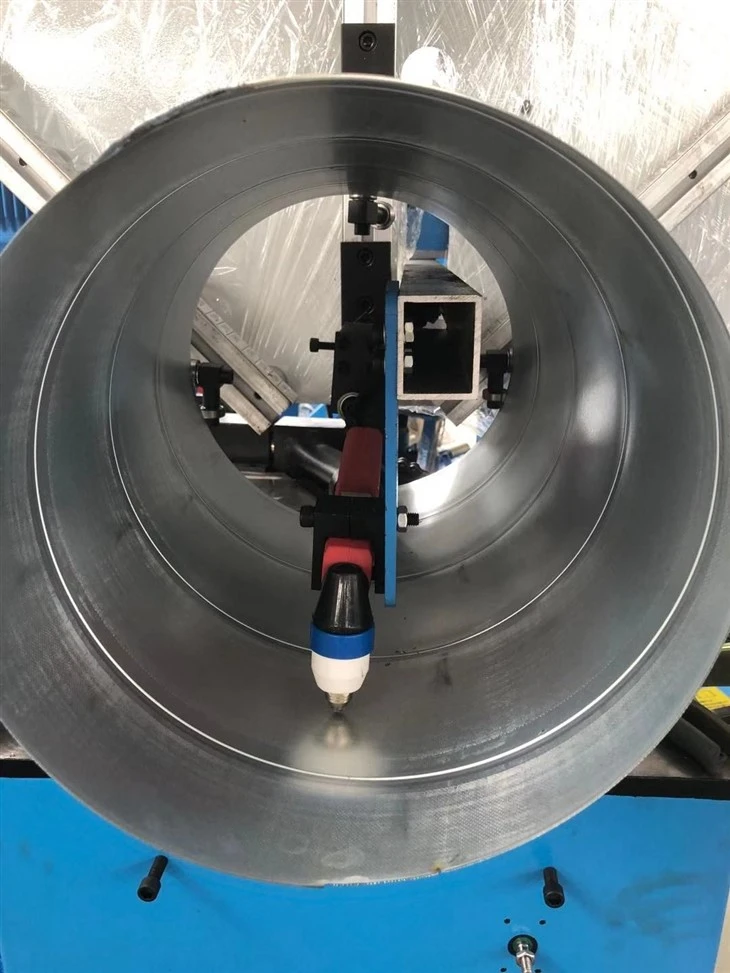

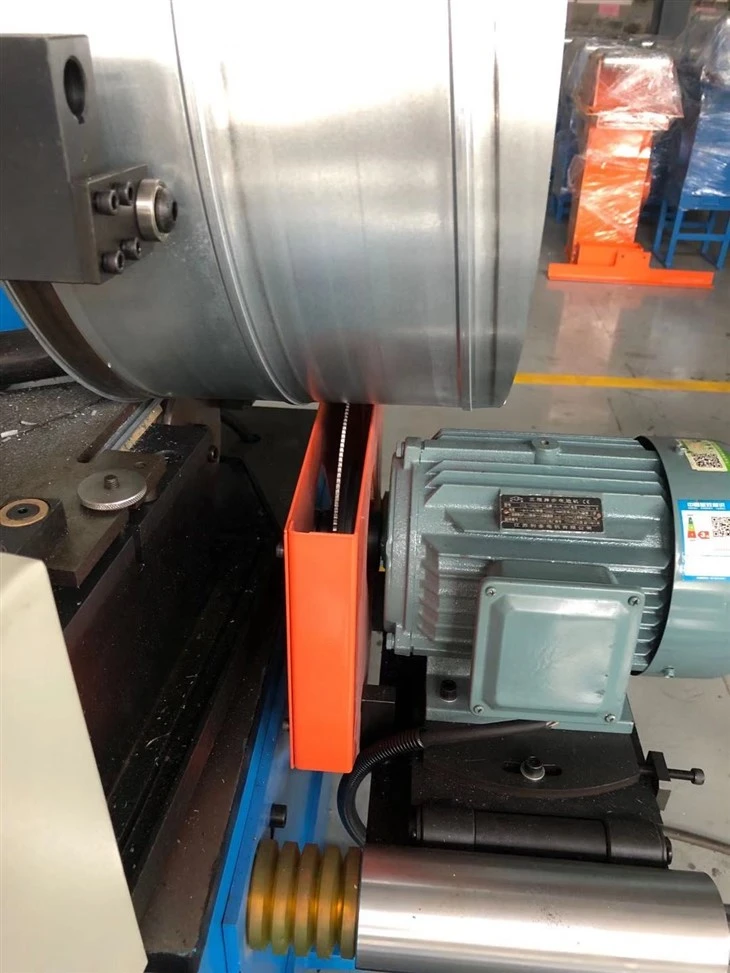

2. high-speed synchronous cutting system and plasma cutting system.
3. PLC control.
4. can be on-site construction.
5. can be adjusted.
6. high-quality products, high-quality services.
7. the system can handle galvanized sheet, aluminum.
8. automatic roll out of equipment.

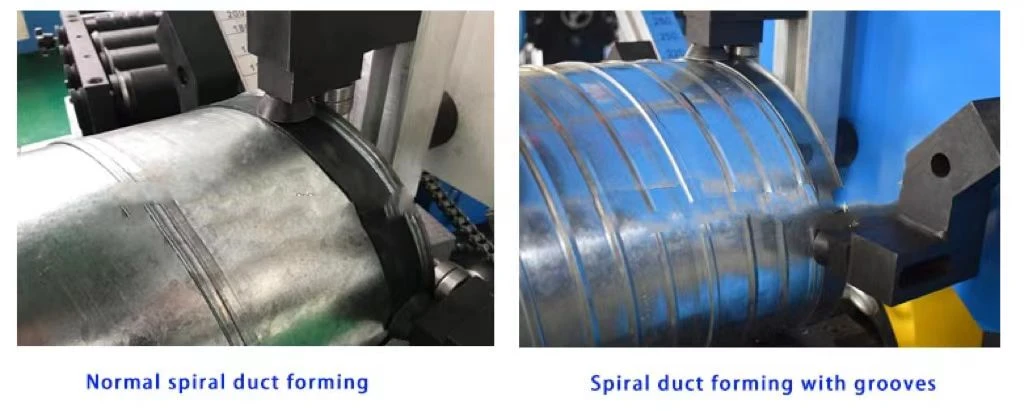

9. can produce a variety of different diameter spiral tube.



Model	SBTF-1500
Diameter range	Φ80-Φ1500mm
Tube length	125-6000mm
Strip width	137mm
Lock seam	Outside tube,on the inside on request
Material	Galvanization	0.4-2.0mm
	Stainless steel	0.4-1.2mm
Strip speed	Max:38m/min
Dimensions	2650x1550x2000mm
Weight	2200kg
Control system	PLC

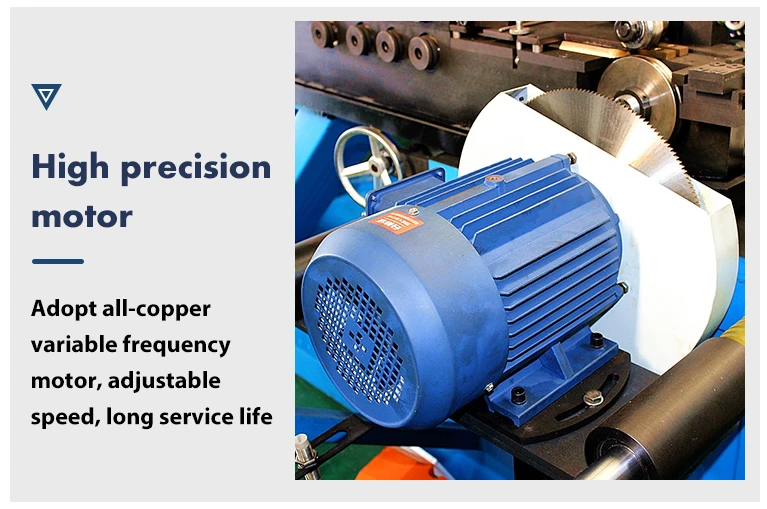

Main motor power	11kw
The power of cutting motor	4kw
Electrical	380V/50Hz/3PH Customizable voltage
Working pressure	0.5-0.7Mpa

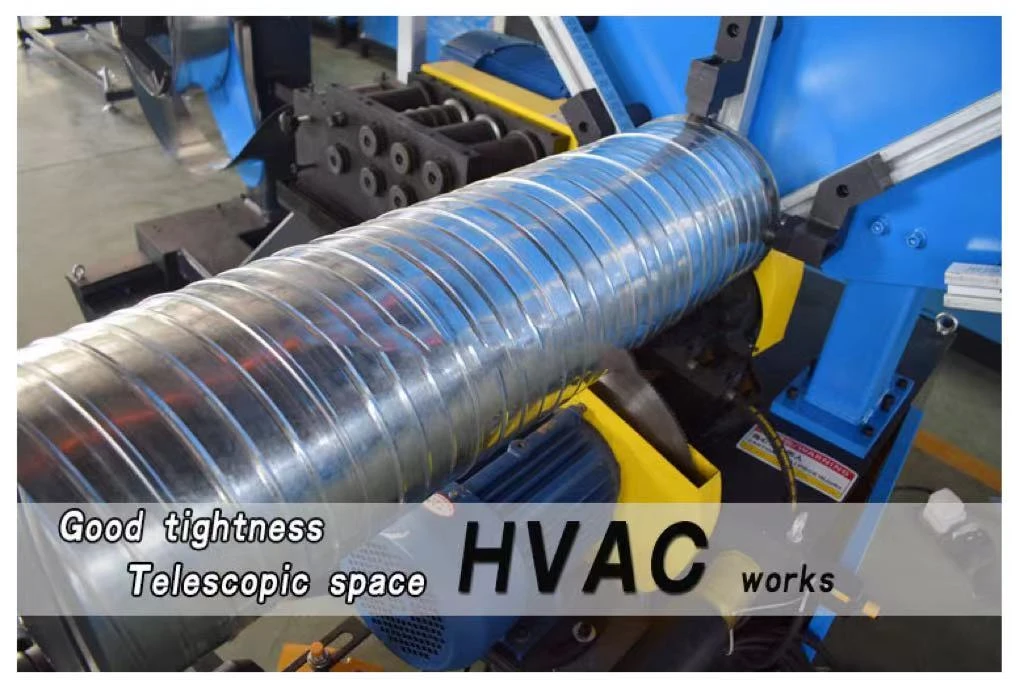

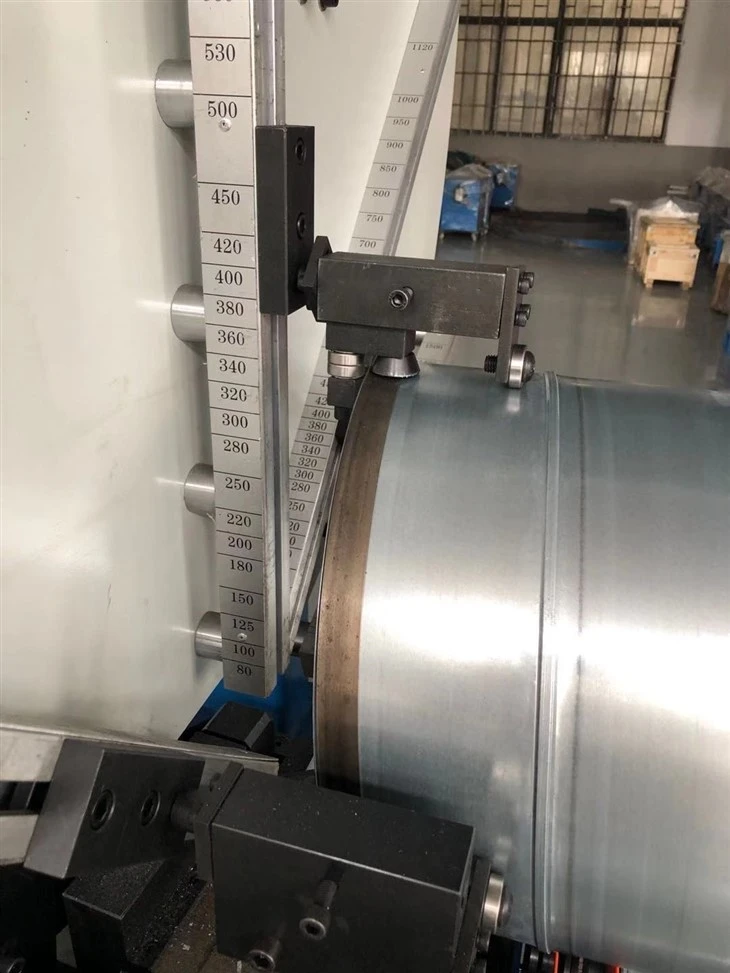

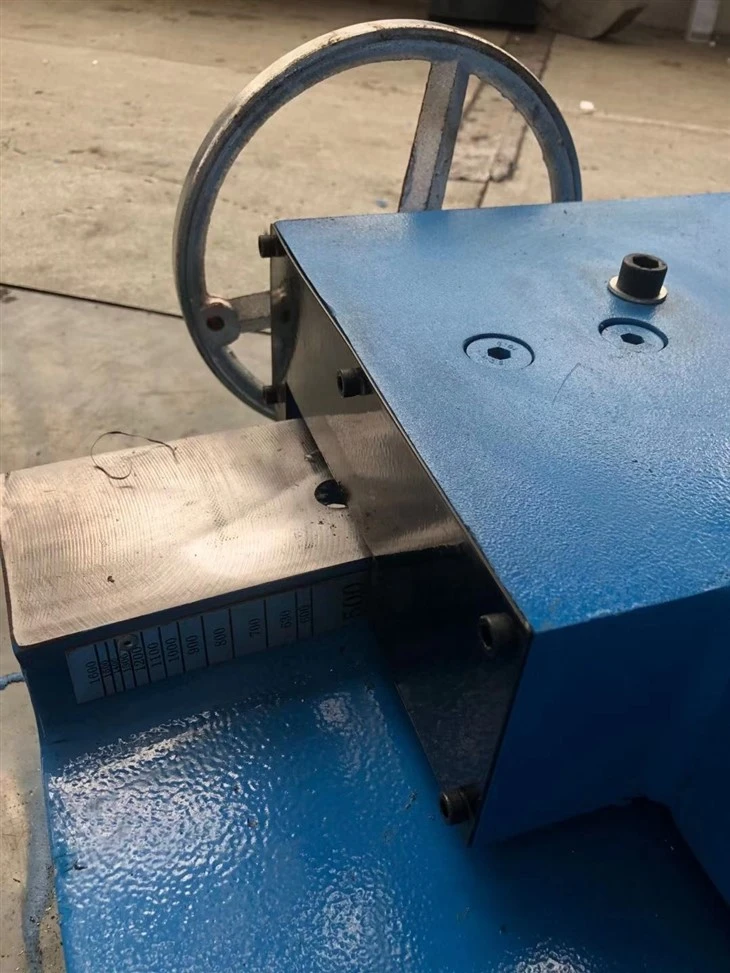

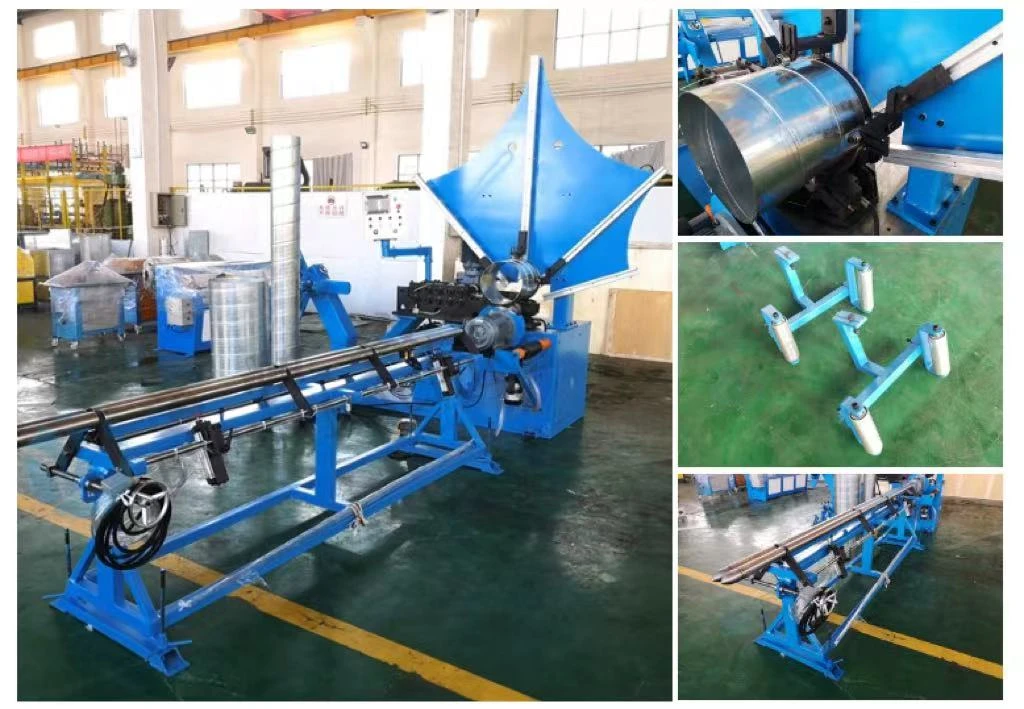

Details Images

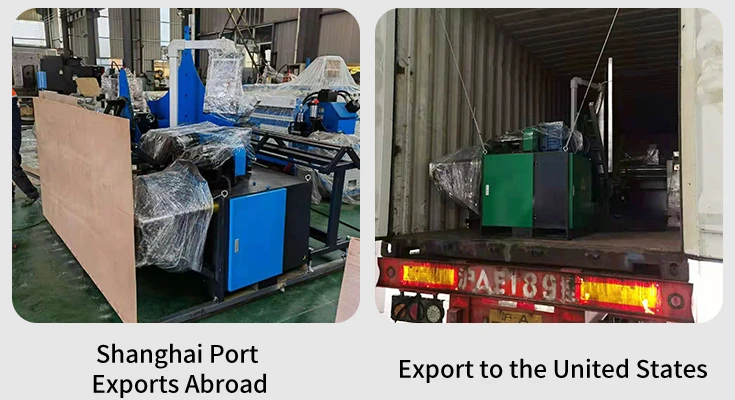

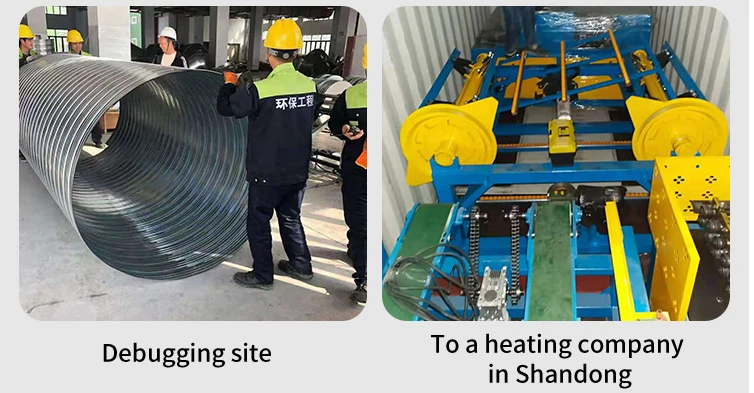

Packing & Shipping

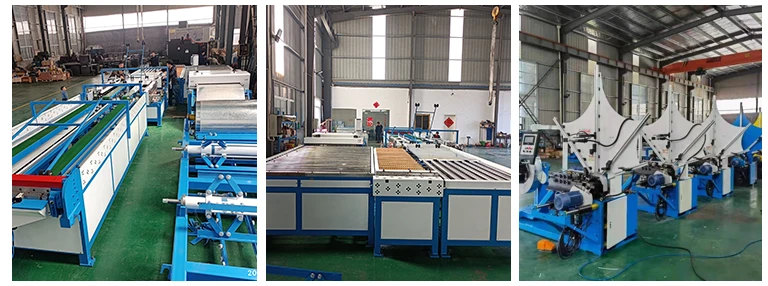

Company Introduction

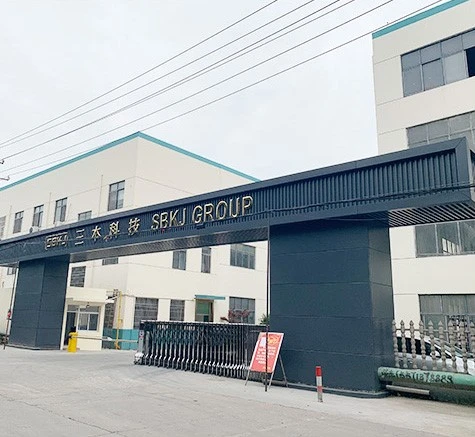

SBKJ SPIRAL TUBEFORMER is based in the Yangze River Delta, nearby Shanghai,China.Our company is a national new high-tech enterprise which is specialzed in the development and manufacture of machines,such as tube forming machines, plasma cutting machines, for the production of round ducting and fttings in sheet metal, mainly for the climate and ventilation industry. We have gotten the certificates of ISO9001:2000 and ce. Our customers from more than 60 countries in the world.

SBKJ's research and development is the comerstone for our automatic tubeformers that produce a higher qualty duct with reduced production costs. Several patented inventions, such as the Flying Slitter and Flying Crimper have established SBKJ as the foremost and leading innovator in spiral duct manufacturing.

Our highly trained technicians will install and set up each SBKJ machine and train your personnel on all facets of the machine's operation and maintenance. We sincerely welcome both domestic and international friends to cooperate with us.



Certificate







Parameter Data



Diameter	￠80 mm – ￠1500mm
Thickness of strip	Galvanized steel	0.4 -1.2mm
	Stainless steel	0.4-0.8mm
Width of strip	Standard 137mm
Working speed	1-38m/min
Lock seam	Outside lock seam, on the inside on request
Power	Mainframe		5.5Kw
	Cutting power		4Kw
Weight	1708kg
Dimension	2700 mm×1560 mm×1950mm
