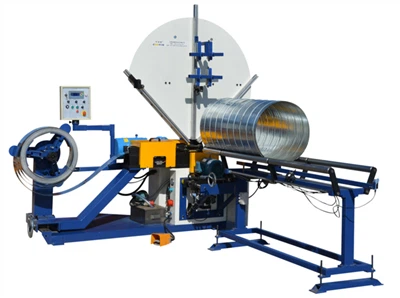

Spiral Ventilation Duct Making Machine Pipe Machine
Spiral duct manufacturing machine round air duct making machine Main Features 1. patented mold, easy to adjust, replace the mold more trouble and save the province of materials; 2. high-speed synchronous cutting system and plasma cutting system ; 3. PLC control; 4. can be on-site construction;...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Ventilation Making Machinery Pipe Machinery
Details Images
Packing & Shipping
Certificate
FAQ
Parameter Data
|
Model |
SBTF-1500C |
|
|
Diameter range |
Φ80-Φ1500mm |
|
|
Tube length |
125-6000mm |
|
|
Strip width |
137mm |
|
|
Lock seam |
Outside tube,on the inside on request |
|
|
Material |
Galvanization |
0.4-2.0mm |
|
Stainless steel |
0.4-1.2mm |
|
|
Strip speed |
Max:38m/min |
|
|
Dimensions |
2650x1550x2000mm |
|
|
Weight |
2200kg |
|
|
Control system |
PLC |
|
|
Main motor power |
11kw |
|
|
The power of cutting motor |
4kw |
|
|
Electrical |
380V/50Hz/3PH Customizable voltage |
|
|
Working pressure |
0.5-0.7Mpa |
|
