Air Tube Spiral Ducting Machine Round Duct Former Machine
Spiral duct manufacturing machine round air duct making machine Main Features 1. patented mold, easy to adjust, replace the mold more trouble and save the province of materials; 2. high-speed synchronous cutting system and plasma cutting system ; 3. PLC control; 4. can be on-site construction;...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

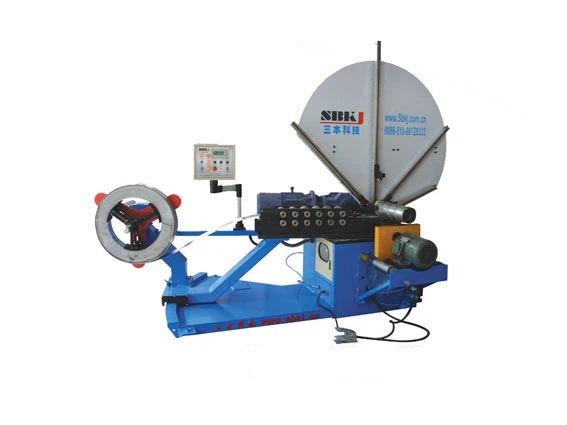

Air Tube Spiral Ducting Machine Round Duct Former Machine
Spiral duct making machine is used for producing HVAC round duct. Owing to its excellent performance and low cost, Spiral ductwork has been widely promoted in ventilating and air conditioning systems. It features low wind resistance, high effect, fine rigidity, and convenient installation, thus adapts to the application for large ductwork locations.
Details Images
Packing & Shipping
FAQ
Parameter Data
|
Model |
SBTF-1500C |
|
|
Diameter range |
Φ80-Φ1500mm |
|
|
Tube length |
125-6000mm |
|
|
Strip width |
137mm |
|
|
Lock seam |
Outside tube,on the inside on request |
|
|
Material |
Galvanization |
0.4-2.0mm |
|
Stainless steel |
0.4-1.2mm |
|
|
Strip speed |
Max:38m/min |
|
|
Dimensions |
2650x1550x2000mm |
|
|
Weight |
2200kg |
|
|
Control system |
PLC |
|
|
Main motor power |
11kw |
|
|
The power of cutting motor |
4kw |
|
|
Electrical |
380V/50Hz/3PH Customizable voltage |
|
|
Working pressure |
0.5-0.7Mpa |
|
