Production Of Round Hvac Air Pipe Seaming Welding Air Duct Machine
Production of Round hvac Air pipe seaming welding air duct machine Features 1. Cross sea longitudinal seam and horizontal and vertical seam. 2. The speed of welding is quick and the efficiency of welding is high. 3. According to the clients' demand, set the function of continuous weld and...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

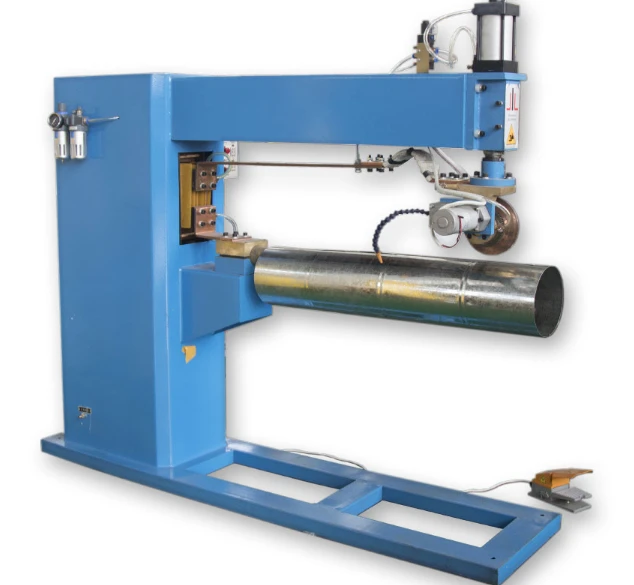

Round hVAC Air pipe seaming welding air duct machine
Features
1. Cross sea longitudinal seam and horizontal and vertical seam.
2. The speed of welding is quick and the efficiency of welding is high.
3. According to the clients' demand, set the function of continuous weld and pulse weld.
4. Equipped with a high reliability control box.
5. The welding speed can be regulated continuously.
6. Suitable for the site for welding airproof vesse.

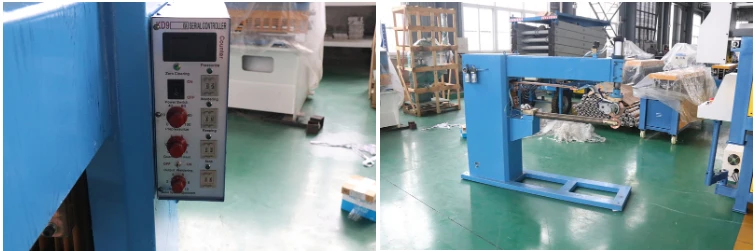

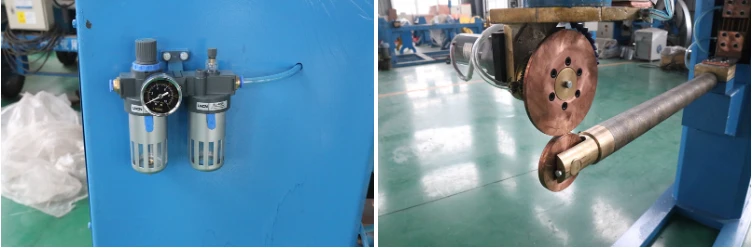

Images Details
Packing & Shipping
Certificates
FAQ
Parameter Data
|
Model |
SBFN-35 |
SBFN-50 |
|
Voltage (V) |
380 |
380 |
|
Welding time regulation (s) |
0-0.99 |
0-0.99 |
|
Electrode arm length (mm) |
400mm |
400mm |
|
Electrode arm spacing (mm) |
250mm |
250mm |
|
Rated input capacity (KVA) |
35 |
50 |
|
Control range (s) |
0.8-3.2 |
0.8-3.2 |
|
Weight(kg) |
150 |
190 |
|
Application of welding Max plate (mm) |
1.0+1.0 |
1.5+1.5 |
|
SIZE(MM) |
950*430*1160 |
950*430*1160 |
|
Weight KG |
200kg |
200KG |
Hot Tags: production of round hvac air pipe seaming welding air duct machine, China production of round hvac air pipe seaming welding air duct machine manufacturers, suppliers, factory, welding hose, welding shields, hand welder, welding packaging, longitudinal seam weld machine, seam welding machinery
