Spiral Pipe Duct Machine Round Duct Making Machine
This machine is mainly used for the production of spiral air duct machines.Spiral duct machines produce straight round spiral ducts, mainly used in the HVAC industry, but also in the mining, sheathing and airfreight sectors. Mainly used in the HVAC industry, but also in the mining, sheathing and airfreight sectors.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

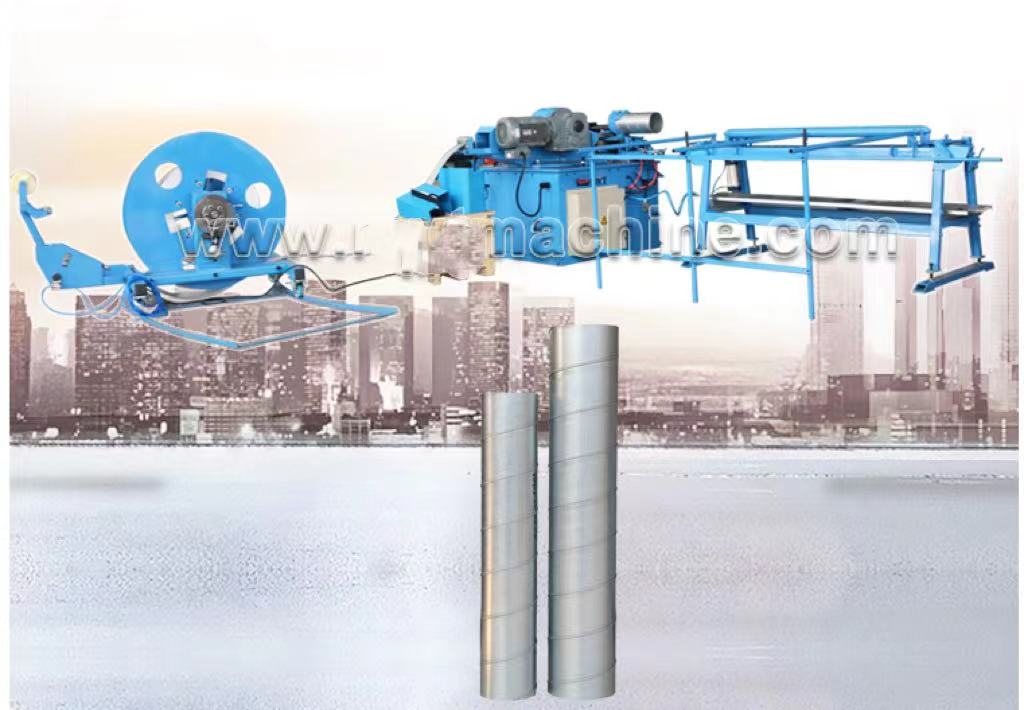

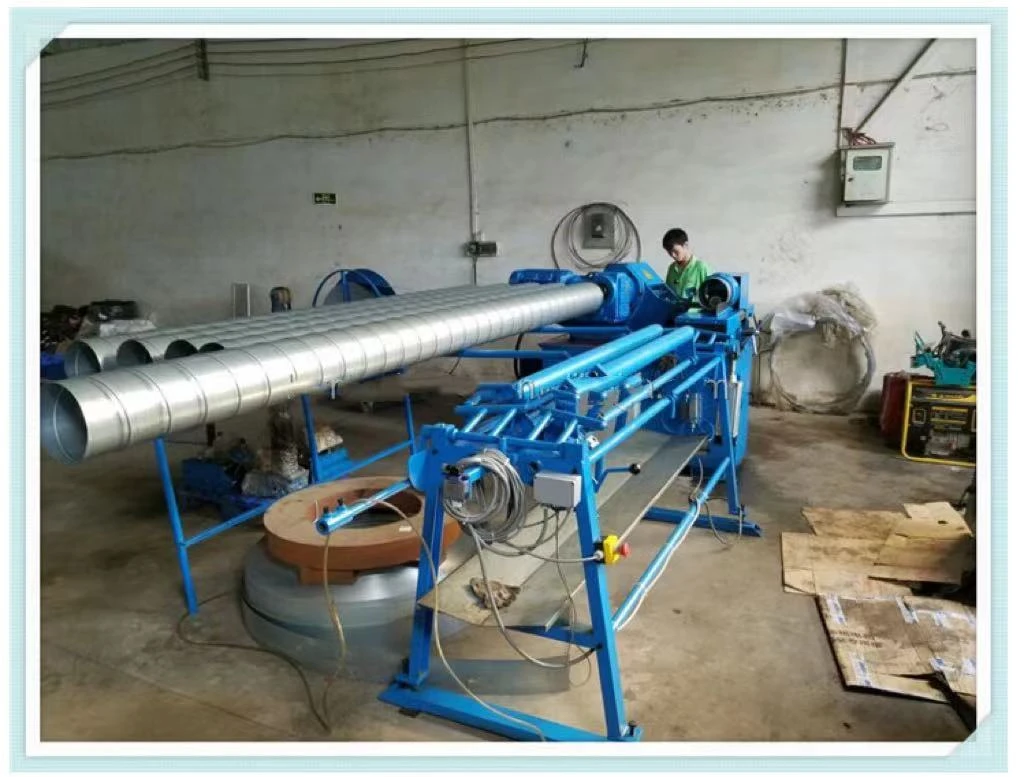

Spiral Pipe Duct Machine Round Duct Making Machine
The module technique gives the customer the possibility to choose between a number of options, allowing him to create a machine a number of options, allowing him to create a machine for his specific needs.
The frequency controlled main drive ensures a smooth acceleration and an almost noiseless operation.
The outstanding patented flying slitter cuts the tubes to lengthwithout noise or hot sparks as known from the saws and provides smooth tube ends without deburring.
The design and options fulfill the needs in HVAC to produce in mild steel, galvanized steel, stainless steel or aluminum.
The corrugation unit allows a reduction in material costs and makes the bigger diameter tubes more rigid.

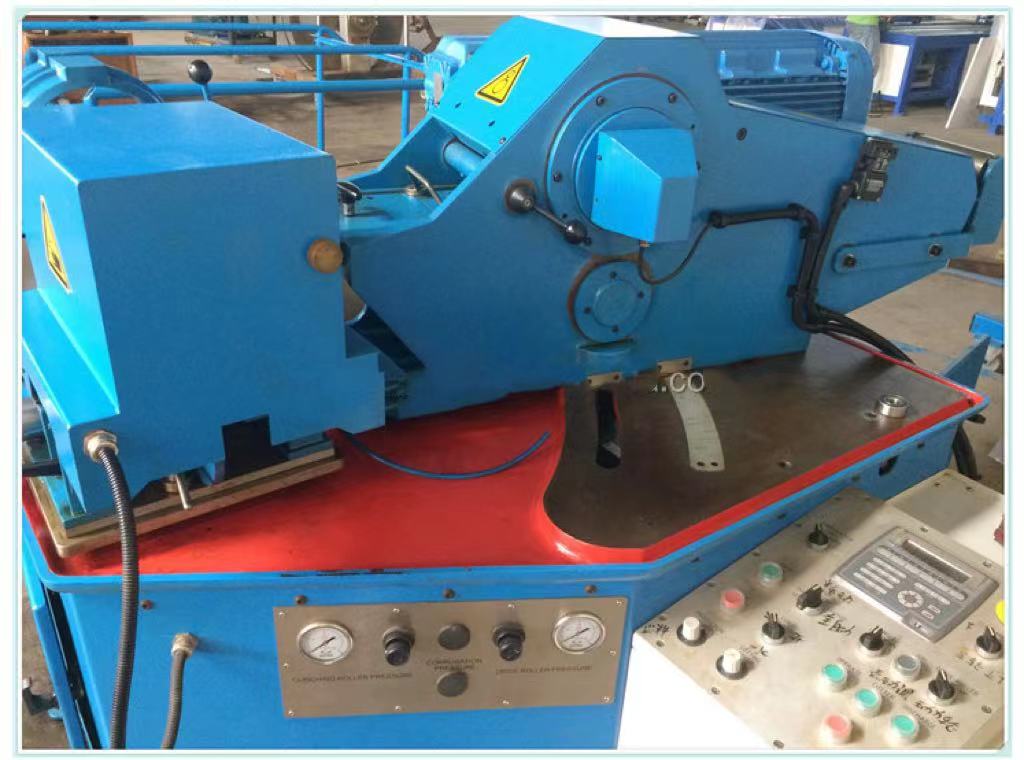

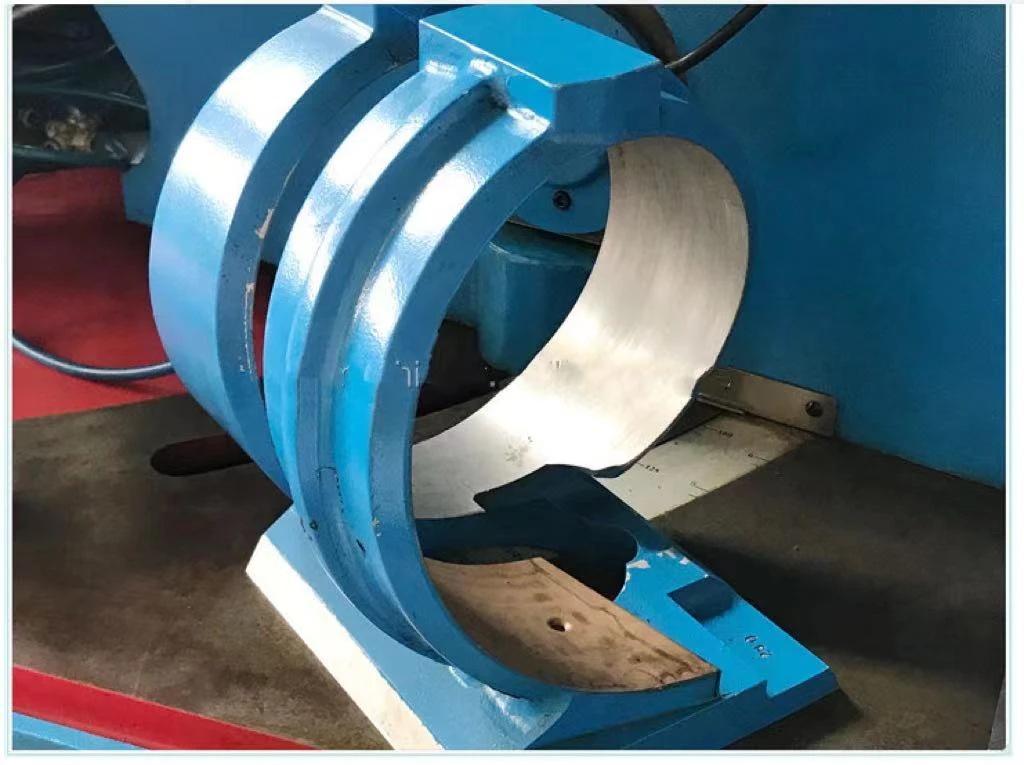

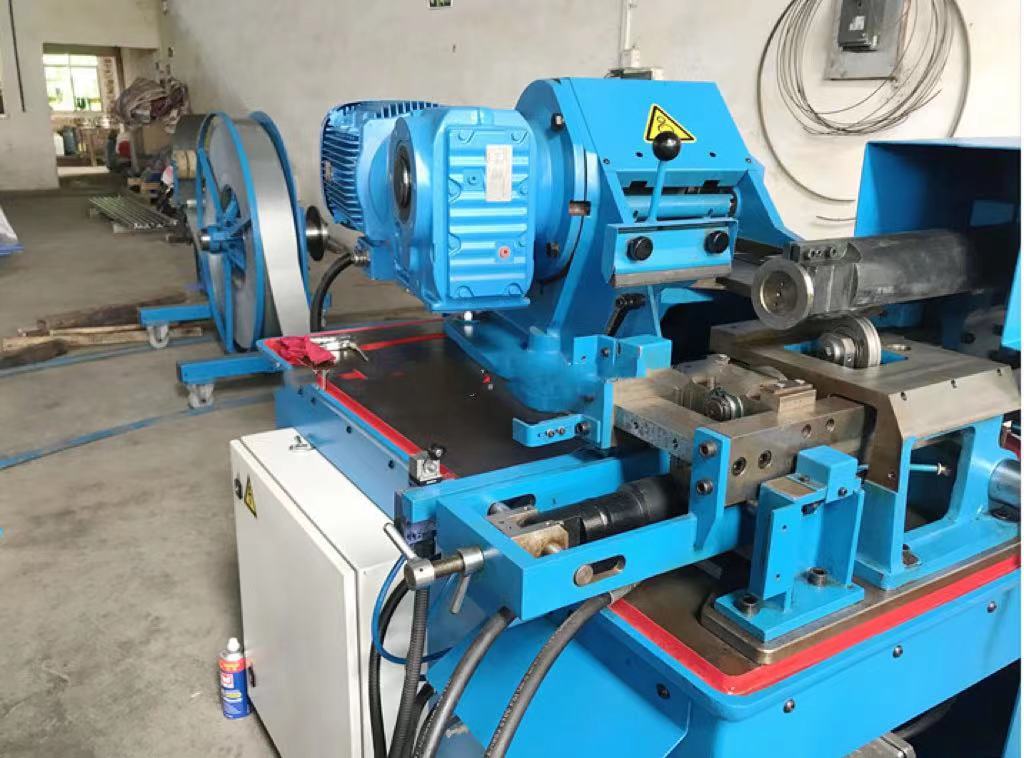

Details Images

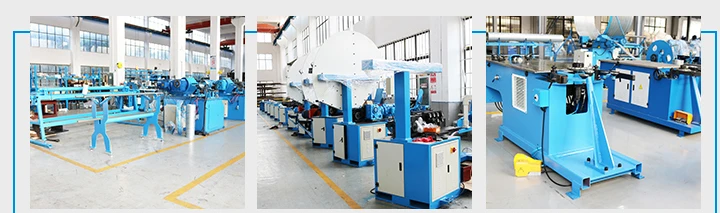

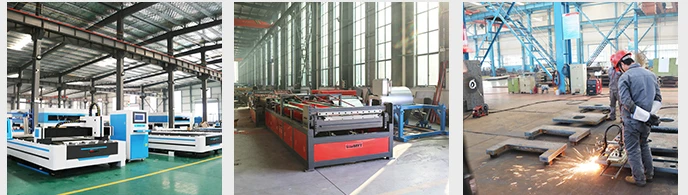

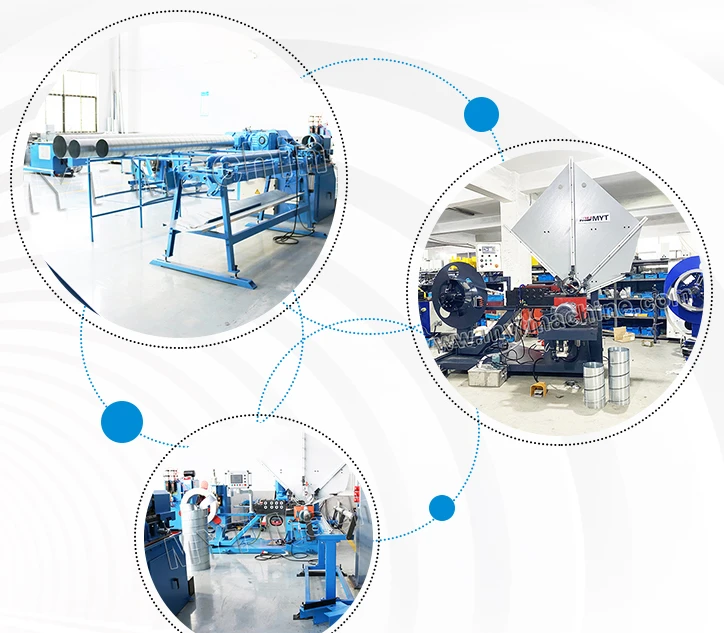

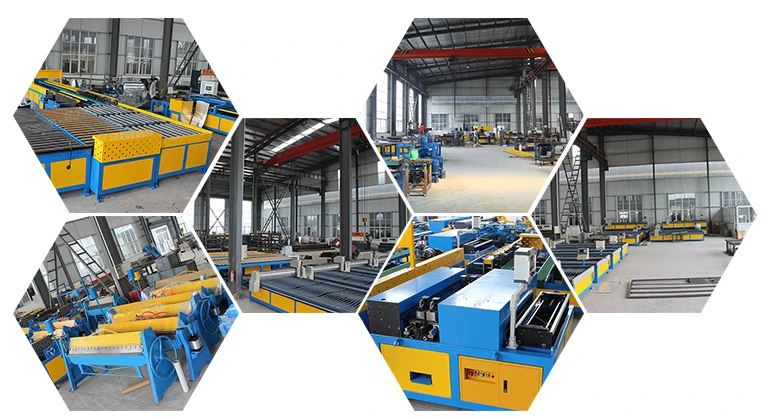

About Us
SBKJ Machine Co., Ltd. established in 2005, is one of China's larger-scaled manufacturers of heavy forging machinery, heating and ventilating equipment and sheet metal equipment.
SBKJ specializes in co-operative manufacturing and development of the machinery and equipment in the industries of ferrous metallurgy, petrochemical, nuclear power, ship traffic, spaceflight and aviation, military project, engineering machinery, heating ventilation, container, boiler, bridge, building materials and so on, as well as grafting and localization of the equipments introduced from foreign countries.

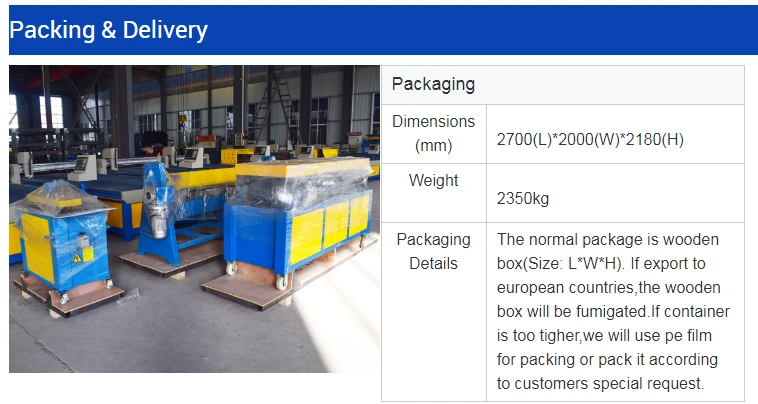

Packing & Shipping
Certificate
FAQ
1. Are you manufacturer or trading company?
SBKJ company is a mature brand in CHINA, through our 18 years research in technology,our design including structure and detailed security and precision has enhanced greatly, and can match all the CE standard or more strict standard. Our machines distribute worldwide to about 50 countries where there are metal plate industry And where there are our machines, there are good reputation and terminal user satisfaction.
Parameter Data
|
Diameter range (mm) |
80-1600mm |
|
Thickness of Strip |
Galvanized steel 0.4-1.3 (mm) |
|
Stainless steel 0.4-0.8 (mm) |
|
|
Aluminum 0.4-1.3 (mm) |
|
|
Width of Strip |
Standard 137mm 0.4-1.0 (mm) |
|
Standard 140mm 1.1-1.3 (mm) |
|
|
Other profiles on request |
|
|
Corrugations |
Either one or two beads |
|
Lockseam |
Outside tube, on the inside on request |
|
Production speed |
Max.60 meters/min.depending on material |
|
Cutting System |
The patented flying slitter |
|
Motor Power |
Mainframe 11KW, Cooling water pump 0.25kw |
|
Weight |
2900KG |
|
Overall dimensions (mm) |
2000mm*1800mm*1500mm |
