Ventilation Duct Production Machine HVAC Round Pipe Manufacturing Machine
SBKJ hotsale spiral duct machine Performance Features Spiral duct making machine, is the production of spiral duct machine. Spiral duct is made of metal strip material spiral wound into thin-walled tube, circular, no welding, no leakage, no leakage, and more for air supply and bulk material...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Ventilation Duct Production Round Pipe Manufacturing Machine
Performance Features
Item: SBTF-1500C spiral duct manufacturing machine lock seam can be inner or outer lock for option.
PLC control system with button operation.
Fast change steel duct mould system.
Cutting system can be plasma and saw cutter for different thickness.
Main technical of spiral duct manufacturing machine:
1 Diameter: 80-1500mm
2 Thickness: 0.4-2.0mm(galvanized steel )
0.4-1.2mm(stainless steel)
3 Strip width: 137mm
4 Strip feeding speed: 1-38m/min, adjustable
5 Suitable material: Galvanized steel, stainless steel
6 Main motor power: 11KW
7 Supply voltage: 380V/50HZ
8 Cutting power: 4KW
9 Air compressor: 0.8MPa
10 Dimension: 2600*2070*2720mm
11 Weight: about 1834KG

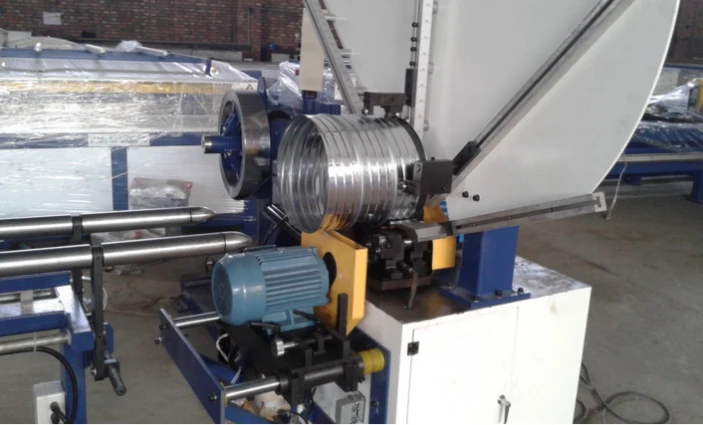

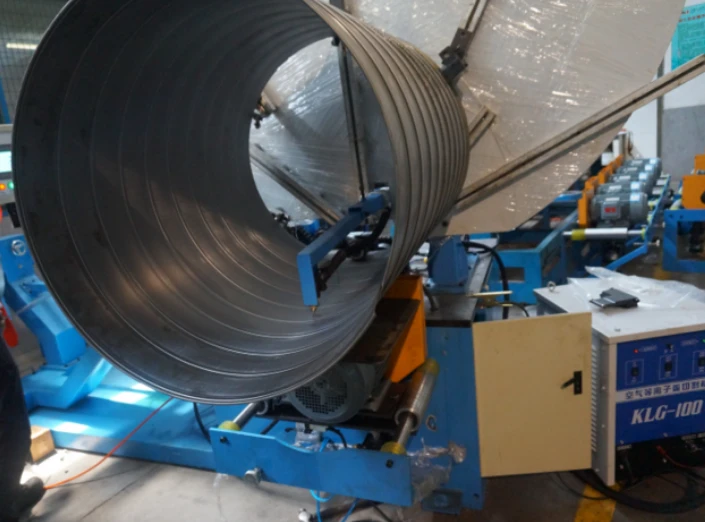

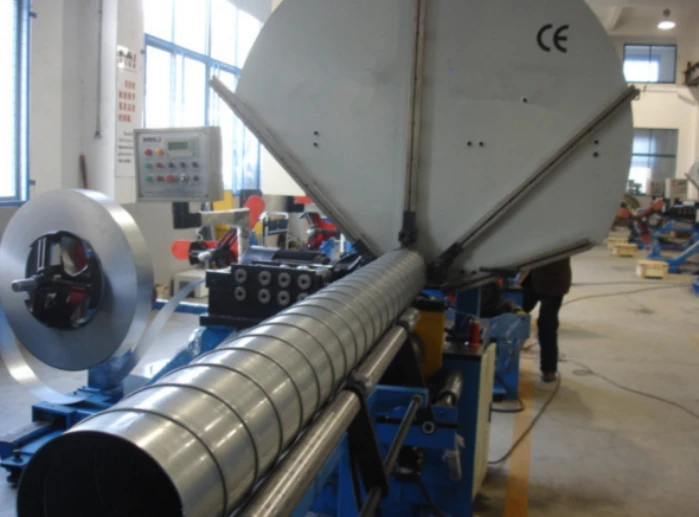

Details Images
Workshops
Packing & Shipping
FAQ
Parameter Data
|
Diameter range
|
Φ100-Φ1500mm
|
|
Thickness range
|
Galvanized plate:0.4-2.0mm
|
|
Material width
|
137mm
|
|
Tube length
|
No Limit
|
|
Feeding speed
|
0-35m/min,adjustable
|
|
Cutter
|
Sawblade and plasma cutter
|
|
Locking
|
Pipe outer surface
|
|
Total weight
|
1800kg
|
|
Equipment sizes
|
2700*1700*2300mm
|
|
Main motor power
|
11kw
|
|
Power supply
|
380V/50HZ/3ph(other power supply optional)
|
|
Control console
|
Touchscreen
|
