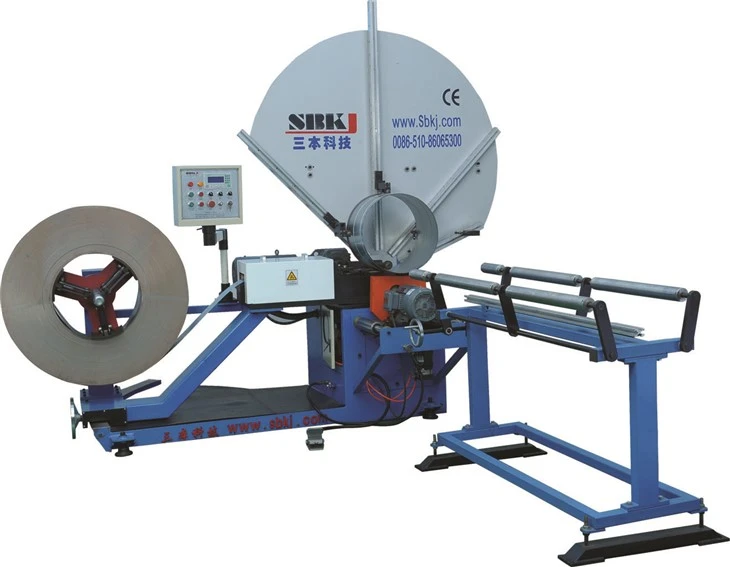

Spiro Round Auto Duct Making Machines Production Line Steel Pipe Spiral Duct Machine
This machine is mainly used for the production of spiral air duct machines.Spiral duct machines produce straight round spiral ducts, mainly used in the HVAC industry, but also in the mining, sheathing and airfreight sectors. Mainly used in the HVAC industry, but also in the mining, sheathing and airfreight sectors.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Spiro Round Auto Duct Making Machines Production Line Steel Pipe Spiral Duct Machine

Images Details


Packing & Shipping

Certificate

FAQ
Q1.Can we be your agent?
A: Yes, we are looking for global agent, and we will help agent improve the market, anosupply all the service like machine technical problem or other after-sales problem.meanwhile, you can get big discount and commission.
Q2.Payment terms?
A: T/T, L/C, Western Union, Paypal, Alibaba Secure Payment etc.
Q3.Are you provide product metal parts and provide ustechnical quidance?
A: Wearing parts, Disassembly tool(free) are what we could provide. And we can give youtechnical guidance. Our technical staff can go abroad to provide you with professionaltechnical guidance.
Parameter Data
|
Type |
SBTF-1500 |
|
|
Diameter range |
Φ80-φ1500mm |
|
|
Tube length |
125-6000mm |
|
|
Strip width |
137mm |
|
|
Lock seam |
Outside tube,on the inside on request |
|
|
Material |
Galvanization |
0.4-1.2mm |
|
Stainless steel |
0.4-0.8mm |
|
|
Aluminum |
0.4-1.2mm |
|
|
Strip speed |
Max:38m/min |
|
|
Dimensions |
2650x1550x2000mm |
|
|
Weight |
2200kg |
|
|
Control system |
PLC automatic control |
|
|
Main motor power |
5.5KW |
|
|
The power of cutting motor |
4KW |
|
|
Electrical |
380V/50Hz/3PH Customizable voltage |
|
|
Working pressure |
0.5-0.7Mpa |
|
