Aluminum Flexible Air Duct Making Forming Machine
Insulated Aluminum Flexible Duct Forming Machine Structure characteristics The Aluminum flexible duct forming machine makes the flexible working range from φ80 to φ500, thickness from 0.08 to 0.15mm. Ripple can be different by changing the mold. Speed is adjustable by computer to make sure the...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Aluminum Flexible Air Duct Making Forming Machine
Structure Characteristics
Automatic forming, cutting and compressing process controlled by PLC.
Suitable material for both aluminum foil and stainless steel strip.
Double layer aluminum foil will be available by our speical design.

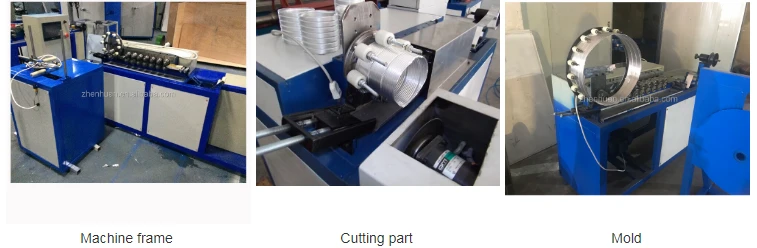

Detailed Pictures
Packing& Shipping
Services
Parameter Data
|
No. |
Item |
Data |
|
1 |
Diameter range |
80-500mm |
|
2 |
Length of aluminum tube |
100-8000mm |
|
3 |
Raw material |
aluminum foil: 0.08-0.15 |
|
4 |
Dimension |
2100 x 830 x 1520mm |
|
5 |
Weight |
About 400kg |
|
6 |
Main motor power |
2kW |
|
7 |
Width of material |
60mm |
