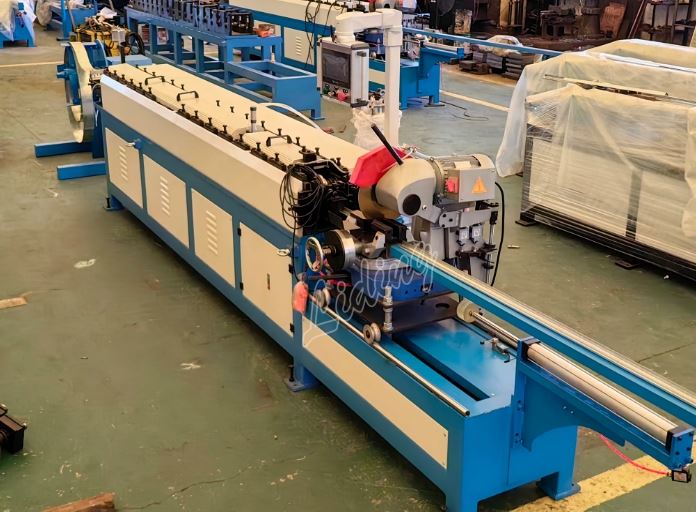

Flange Roll Forming Machine For Ventilation Square Ducts

flange roll forming machine ventilation square ducts





Images Details







Packing & Shipping





Certificates





Our Advantages





FAQ



Q1. What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price
not the final point. Good quality is for long-term business cooperation.



Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production

usage, machine speed, then machine specification will be some different.



Q3. What's your standard trade terms?
A3: We can provide the technical offer with FOB, CFR, CIF etc. Please kindly tell the detailed port name for competitive ocean freight.

Technical Data



Type	Rolls Shape	Strip Width(mm)	Thickness(mm)	Motor Power(Kw)	Weight(Kg)	Dimension(mm)
SBTDC-20A		89	0.8	3	2000	2800×600×1150
SBTDC-25A		99	0.8	3	2000	2800×600×1150
SBTDC-30A		121	1.0	3	2200	3000×600×1150
SBTDC-35A		131	1.0	3	3000	3200×600×1200
SBTDC-40A		146	1.2	4	3000	3200×600×1200
SBTDC-20B		86	0.8	3	2000	2800×600×1150
SBTDC-25B		96	0.8	3	2000	2800×600×1150
SBTDC-30B		118	1.0	3	2200	3000×600×1150
SBTDC-35B		128	1.0	4	3000	3200×600×1200



Type	Name	Capacity	Size	Shape
T-20DC	Duct comer	2.5mm	a=95mm
T-30DC	Duct comer	3mm	a=105mm
T-40DC	Duct comer	3.5mm	a=123mm
LT-30	Duct comer	3mm	a=105mm
T-35DC	Duct comer	3mm	a=106mm
BC-10	Duct clip	5mm
