Hvac Flange Former Machine
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

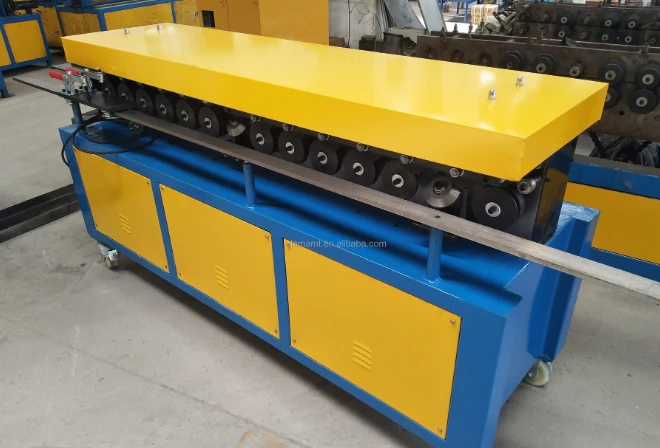

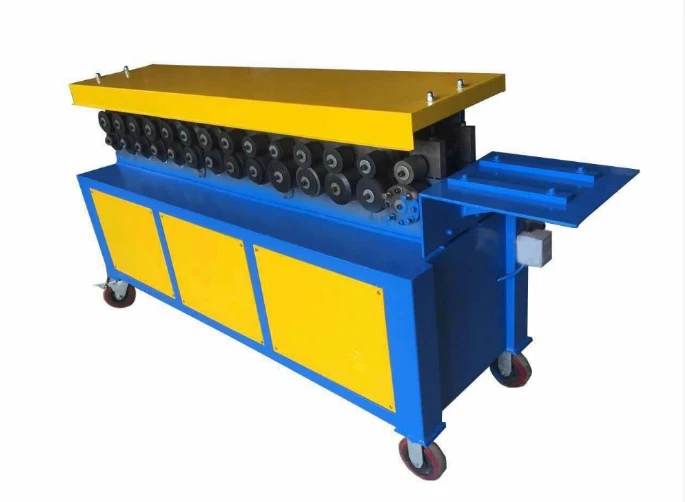

HVAC TRANSVERSE DUCT Flange Former Machine
Features

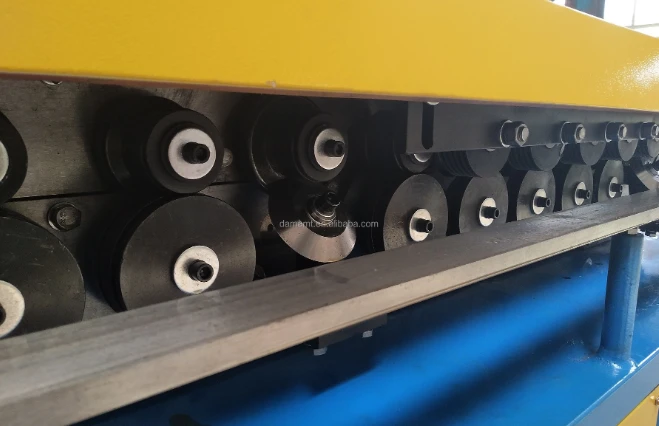

Duct flange making machine is used to form the flange for square duct connection, specially for large-scale, standardized And automatic production. Both flanges and L-shaped clamp can be produced synchronously. Material feeding automatically while sheets processed. All rollers and bearings adopt excellent steel processed by advanced heat treatment technology(quenching), which enhances wear-resistance for the machine. 14 Groups of rollers form a stable and beautiful shape Pressure bearings are being used to avoid the side wear.

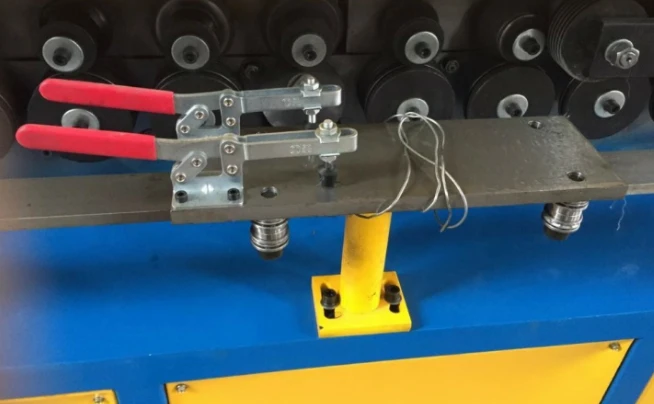

Images Details
Certificates
Guarantee
Technical Data
|
Type |
SBTDF-12 |
SBTDF-15 |
|
Thickness |
0.5-1.2 mm |
0.8-1.5 mm |
|
Roller Shape |
|
 |
|
Height of Flange |
33±0.5 mm |
33±0.5 mm |
|
Power |
2.2 kw |
3 kw |
|
Weight |
760 kg |
910 kg |
|
Dimension |
2540×720×910 mm |
2750×750×960 mm |
