Shrimp Hydraulic Elbow Making Machine

Shrimp Hydraulic Elbow Making Machine





Product Description



1.The frame adopts full steel welding structure with great rigidity.

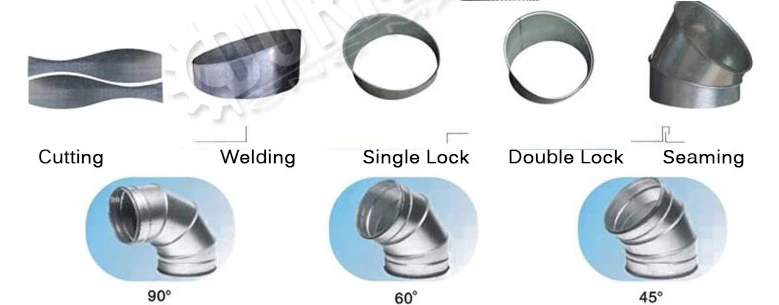

2.There are two stations on the gorelocker-elbow lock forming station and elbow seam locking station. All these two stations are driven by independent hydraulic oil tank! That makes the machine running automatically, accurately and in very fast speed of max. 120m/min.
3.This hydraulic duct elbow making machine handles a variety of duct materials and gauges to make elbows from 125mm-1250mm.
4.The materials it supports are black steel, galvanized steel, stainless steel, aluminum and etc.

Traditionally,tubes connecting and pressing is finished by handwork.But our company developed and produced elbow making machine that can connect tubes by machine with profect efficiency,good seal and stability.It`s easy to operate and it can process tubes with different diameter.It replaced the traditional handwork method totally.It suits such industries as ventilation,refrigeration,environment protection protection project.There`re two styles of elbow notching machine:electric and hydraulic,with two working location both,one is used to process single and double profile,and the other is uesd to connect and press.

SBKJ Machine hydraulic elbow making machine is professionally used for making round duct elbow.Compared with regular electric elbow making machine, it greatly increases the production speed.

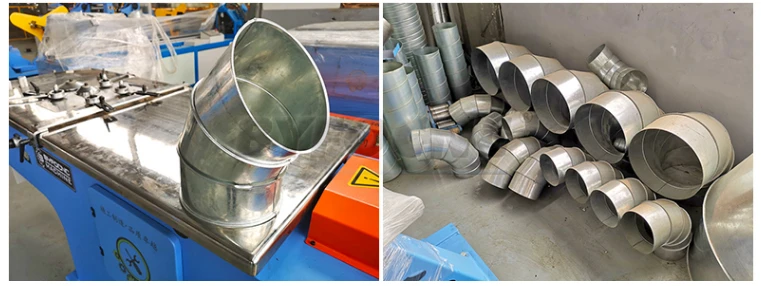

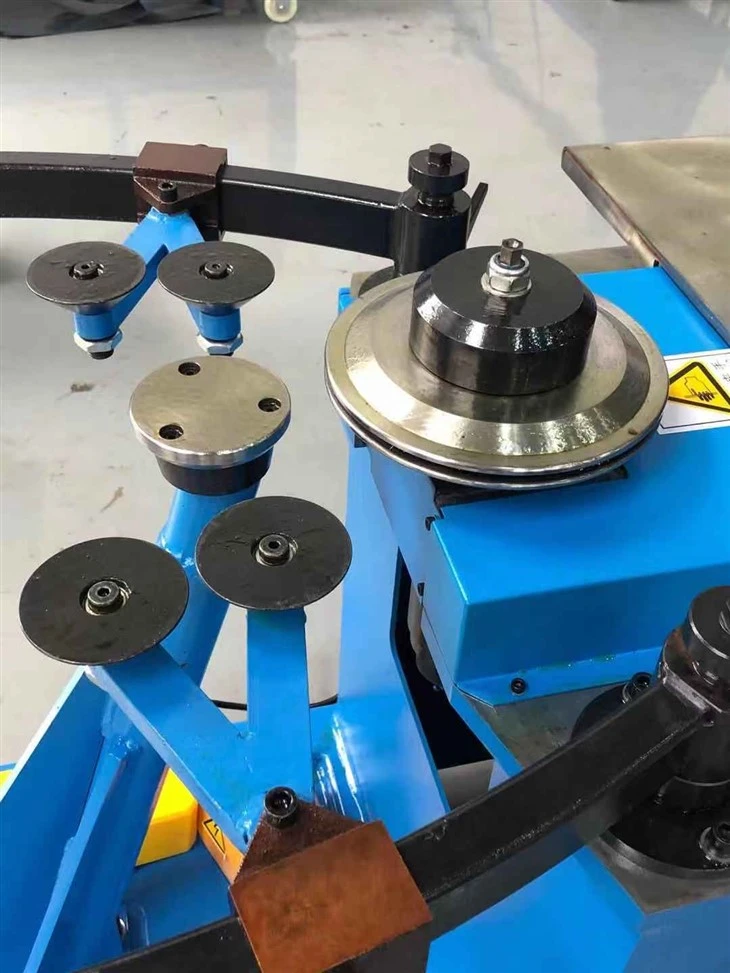

Details Images

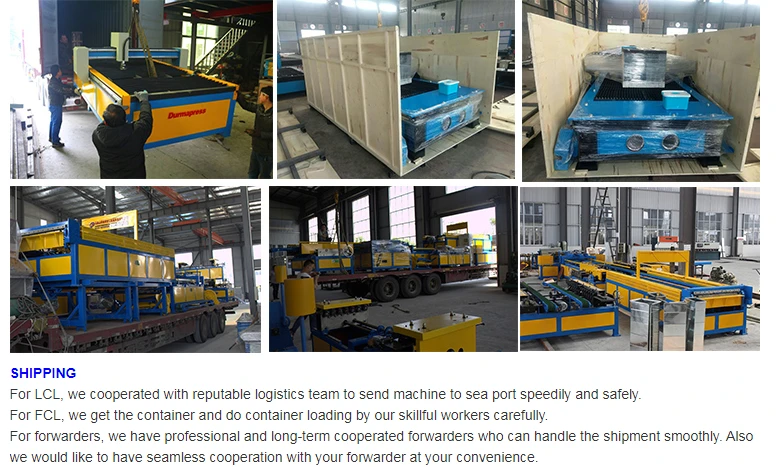

Packaging & Shipping





Advantage





FAQ



1. How to get a accurate quotation from us?

Provide us the detail of the material such as metal thickness and width.



2. What's the shipping cost from China to your country?
We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe, convenient and timely delivery.

3. Payment terms, MOQ, warranty, FOB?
Payment terms: 30% TT paid in advance, the balance of 70% before the shipment.
Minimum order quantity: 1 set, FOB Shanghai.
Delivery time :7 days after receipt of formal order and 30% deposit.
Warranty: 12 months.



4. What's the package?
Fumigation-free plywood case or without package.



5. What about commissioning service?
We can offer commissioning service, the buyer need to afford plane tickets.



6. What's policy for guarantee and broken parts?
Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free.



Our Services

Presale service: Supply item design,process design. Help you chose the fit machine. Manufacture the machine according to your and accessories.

Sale service: Acceptance of equipment together with you. Offer you help to make the operating instruction. Any other help you need.

Aftersale service: One year warranty. Free repair whole using life (without the freight and accessories charge).

Technical data



Model	Thickness (mm)	Process diameter (mm)	Motor Power (KW)	Weight (KG)	Dimension (LxWxH) mm
SBEM-1250	1.2	100-1250	5KW	900	2650X1100X1100
