Auto Duct Line Pipe Making Machine
Square duct former manufacture auto line machine Function It's mainly for TDF/angle steel/C-shaped flange forming with daily processing capability of 1000-2500 square meters. Only with inputting dimensions in duct, production line can automatically complete uncoiling , leveling, beading,...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Auto Duct Line Pipe Making Machine
|
Main import Configuration: |
Basic Configuration: |
|
1. Beijing Huade+Taiwan hydraulic system. 2. Japan Omron encoder. 3. Taiwan Hiwin linear guideways. 4. Schneider electrical system. |
1. Two electric coil cradles, 4 material trays. 2. One rack. 3. One host (line 2 host). 4. Two stainless steel roller convey platforms. 5. One fixed joint locking machine. 6. One duplex TDF flange forming machine. 7. One duplex angle steel flange forming machine. 8. One servo feeding platform. 9. One hydraulic folding machine. 10. One set of computer controlling system. |

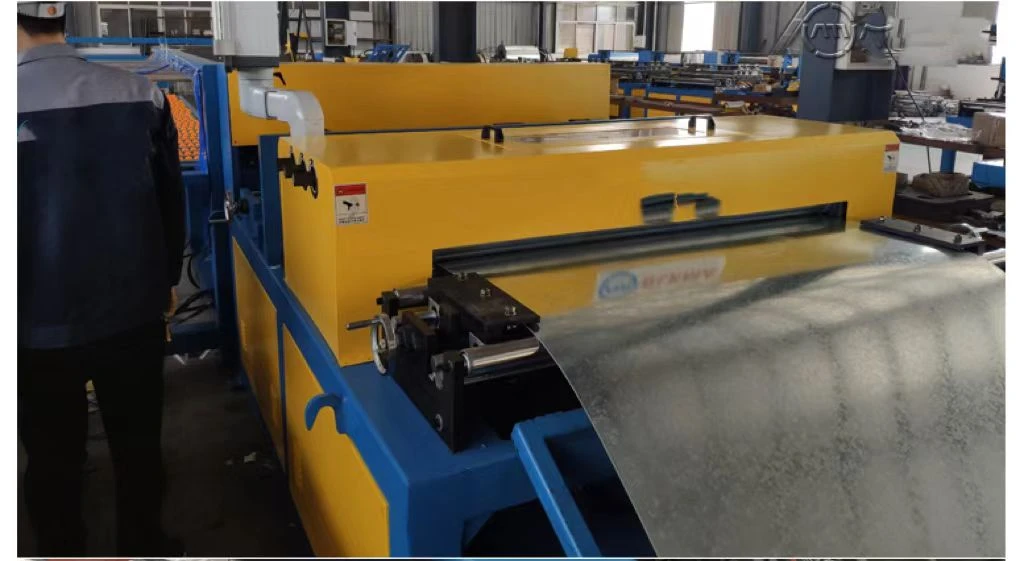

Details Images
Our Factory
SBKJ GROUP is one of the Top 1 HVAC DUCTING machine in China, which specializing in manufacturing and marketing of press brake, shearing machine, press machine, square duct production line LINE5,4,3,2,1;spiral duct machine, locking forming machine; folding machine, plasma cutting machine, power press,ironworker, hydraulic notching machine, beading machine, flange forming machine,shearing machine & press brake, Blade/Mold,etc.
Workshop
Packing & Shipping
FAQ:
1. Are you manufacturer or trading company?
We are manufacturer.
2. What shall we do if don't know how to operate your machine?
We can dispatch our engineers to your country and you can also send your engineers to our factory for learning operation. Besides, there are detailed installation and operating instructions attached, it is very simple. We have telephone and email support at 24 hours per day.
3. What are your payment terms?
We support T/T, L/C, D/P, D/A, Western Union and so on. TT, 30% in advance, 70% balance before the shipment.
4. OEM is available?
Yes.
5. What's your package?
There're two package methods. One method is that machines will be fixed directly in a whole container without wooden box when total machines dimensions need a container, in this situation, machines will be transported by FCL (full container load). Another method is that machines will be packaged with wooden box when total machines dimensions are small which does not need a whole container, in this situation, machines will be transported by LCL (less than container load). Both of these two package methods are safe.
Main Technical Parameters
| Model |
Sheet thickness (mm) |
Max width (mm) |
Max working speed (m/min) |
Max weight of coil (T) |
Dimension L*W*H (mm)
|
Power (kw) |
Weight (T) |
| SBAL-U-1250 | 0.5-1.2 | 1250 | 15 | 8 | 12000*5500*1500 | 30 | 10 |
| SBAL-U-1500 | 0.5-1.2 | 1500 | 15 | 8 | 12000*5900*1500 | 30 | 11 |
