HVAC Air Duct Flexible Connector Making Forming Fabrication Machine
flexible connector making forming fabrication machine Automatic Flexible Duct Connector Roll Forming Line It is composed of two decoiler,roll forming machine,Poly feeding system and Automatic Recoiler The two lines for making the duct connector, Line A is for punching the hole, Line B is for...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
flexible connector making forming fabrication machine

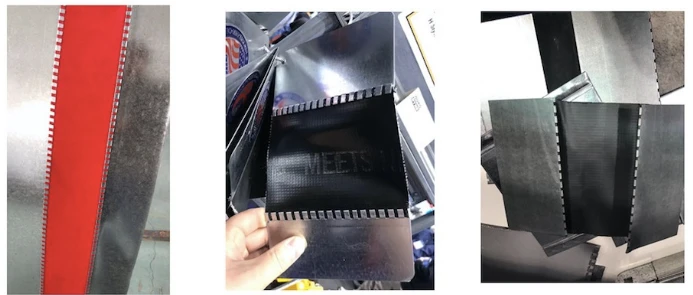

Automatic Flexible Duct Connector Roll Forming Line It is composed of two decoiler, roll forming machine, Poly feeding system and Automatic Recoiler The two lines for making the duct connector, Line A is for punching the hole, Line B is for connection the cloth and the steel strip The machine use for make Canvas duct connector, Polyester Duct Connector, Fibreglass Duct Connector, flexible Duct Connector.

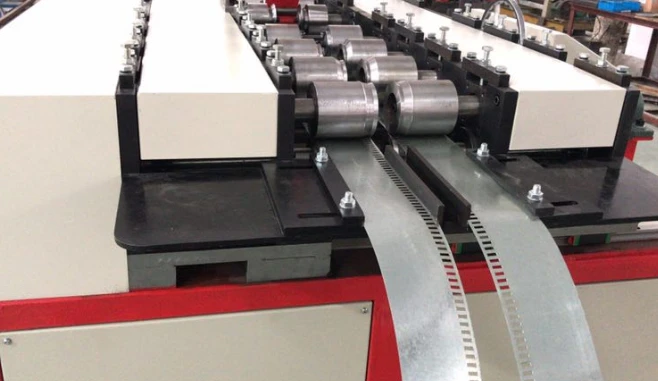

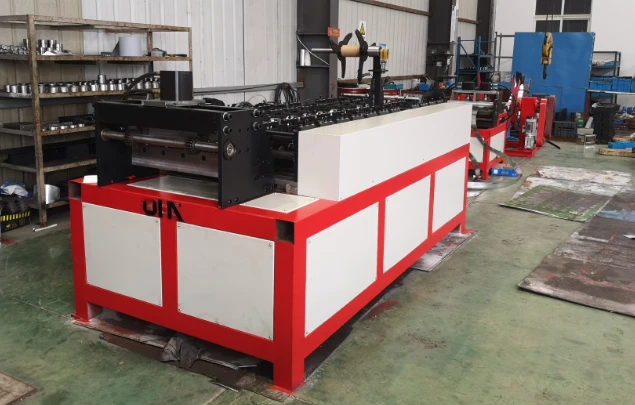

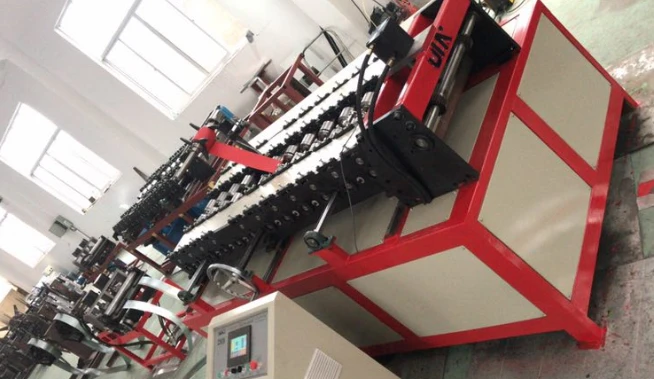

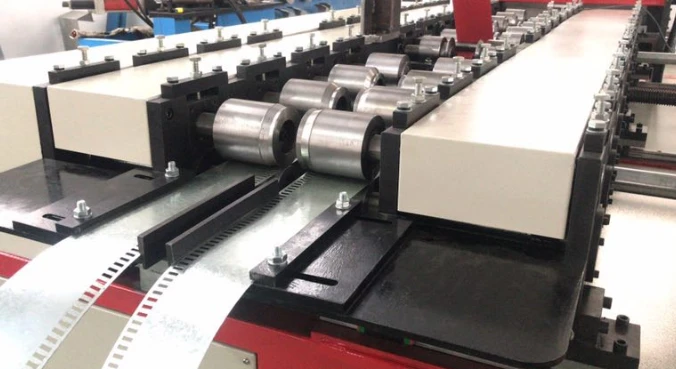

Details Images
Packaging & Shipping
Certificate
Our Services
Advantage
1. Competitive price: It is can meet your budget and best-selling business very well.
2. OEM Accepted: We can produce any your request design.
3. Good Service: We treat clients as friends.
4. Good Quality: We have strict quality control system. Good reputation in the market.
5. Fast & Delivery: We have big discount from forwarder (Long Contract).
General Order Information
We take great pride in our work and in the wide variety of products that we offer. We are experienced in servicing the Southeast Asia market, South America, European market and Africa market. Please be aware that our production lead times depend on specific items and item quantities.
Technical Data
| GS Strip thickness | 0.4-0.8mm | |
| GS Strip width | 50-150mm | |
| Fireproof fabric strip width | 100-300mm | |
| Final production strip width | 140-540mm | |
Power |
Main | 3kw (Inverter motor) |
| Hydraulic station | 7.5kw | |
| Servo motor | 0.75kw | |
| Speed | 0-10m/min | |
| Weight | 2500kg | |
| Dimension | 3000*1500*1600mm | |
Configuration |

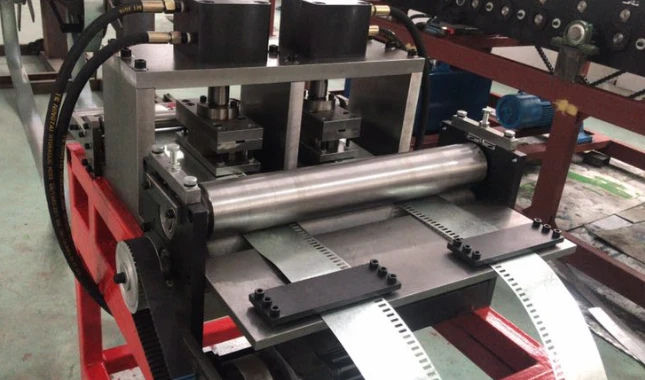

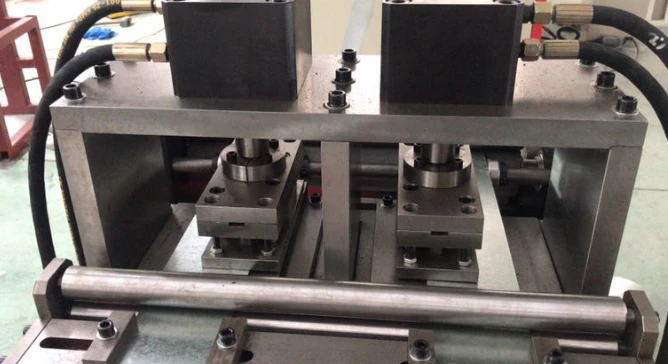

1.Holes punched by the hydraulic unit 2.Hydraulic driven auto cutting 3.Encoder from Japanese OMRON PLC &frequency converter from DELTA Electrical equipment from Schneider All hydraulic cylinder and accessory from Taiwan 4.Decoiler(Load:＜800kg) 2 sets Hydraulic servo feeder 1 sets Hydraulic punching moulds 2 sets Main machine 1 set Receiving rack 1 set |
|
