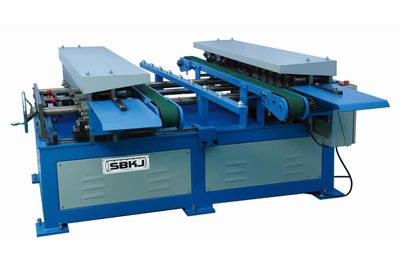

Duplex Flange Forming Machine
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Duplex flange forming machine can form the both end flanges at the same time, high production efficiency, beauty product.
Features
1. Flange forming machine is a main equipment for flange forming, especially for large-scale, standardized and automatic production.
2. Both flanges and L-shaped clamp can be produced synchronously.
3. Material feeding automatically while sheets processed.
4. All rollers and bearings adopt excellent steel processed by advanced heat treatment technology (quenching), which enhances wear-resistance for the machine.
5. 14 or 16 Groups of rollers form a stable and beautiful shape Pressure bearings are being used to avoid the side wear.
Technical Data
|
Type |
2-SBTDF-12 |
2-SBTDF-15 |
|
Width |
600-1600mm |
|
|
Thickness |
0.6-1.2 mm |
1.0-1.5 mm |
|
Roller Shape |
||
|
Height of Flange |
33±0.5 mm |
35±0.5 mm |
|
Power |
5.5 kw |
5.5kw |
|
Weight |
1000 kg |
1500 kg |
|
Dimension |
2500×2600×1200 mm |
2800×2600×1250 mm |
Technical Data
|
Type |
2-SBTDF-12 |
2-SBTDF-15 |
|
Width |
600-1600mm |
|
|
Thickness |
0.6-1.2 mm |
1.0-1.5 mm |
|
Roller Shape |
||
|
Height of Flange |
33±0.5 mm |
35±0.5 mm |
|
Power |
5.5 kw |
5.5kw |
|
Weight |
1000 kg |
1500 kg |
|
Dimension |
2500×2600×1200 mm |
2800×2600×1250 mm |
