Round Duct Spiral Helix Gorelocker Elbow Joint Forming Machine
The operation is simple, and it can make different diameter. It completely replaces the traditional manual method. It is suitable for industries such as ventilation, refrigeration, and environmental protection engineering.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

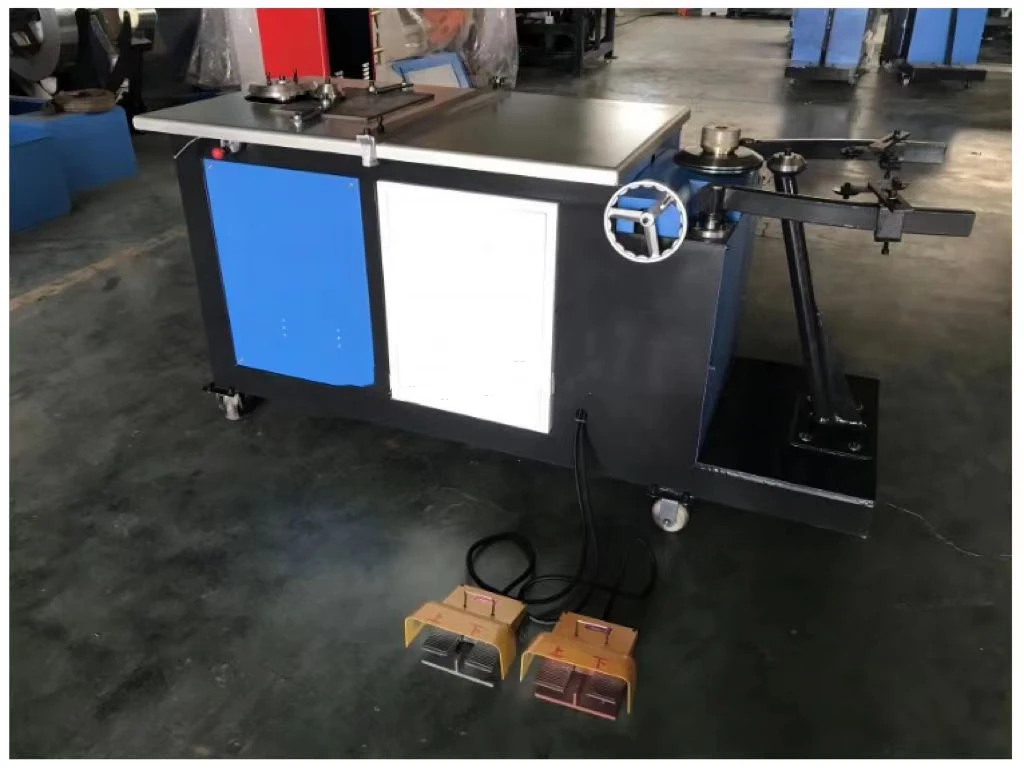

Round Duct Spiral Helix Gorelocker Elbow Joint Forming Machine

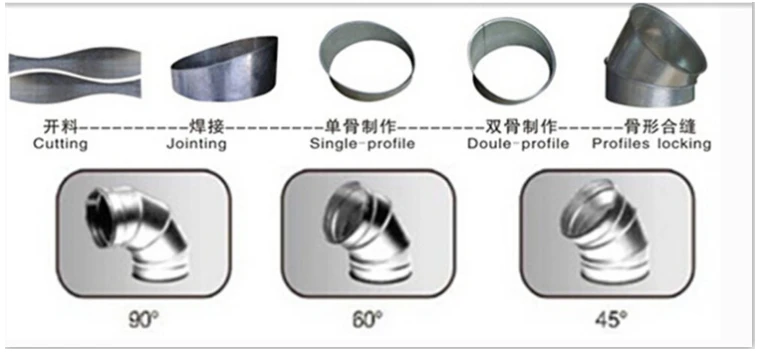

The round duct elbow lock forming and seaming machine manufactured by our company is a special equipment for processing metal sheet circular duct and round duct elbow (shrimp rice elbow) on the interface lock forming and seaming.
By adjusting the position of the pointer of the handle wheel, two kinds of bones (_|-,|_) can be rolled out at the nozzle of the round duct, and then the two kinds of bones can be connected on another set of rollers (_|-||_). The machine has the advantages of reasonable structure, stable performance, practicality, high efficiency and convenient operation, good flatness of rolled skeleton, accurate size and angle, and good sealing and durability of air duct after occlusion.

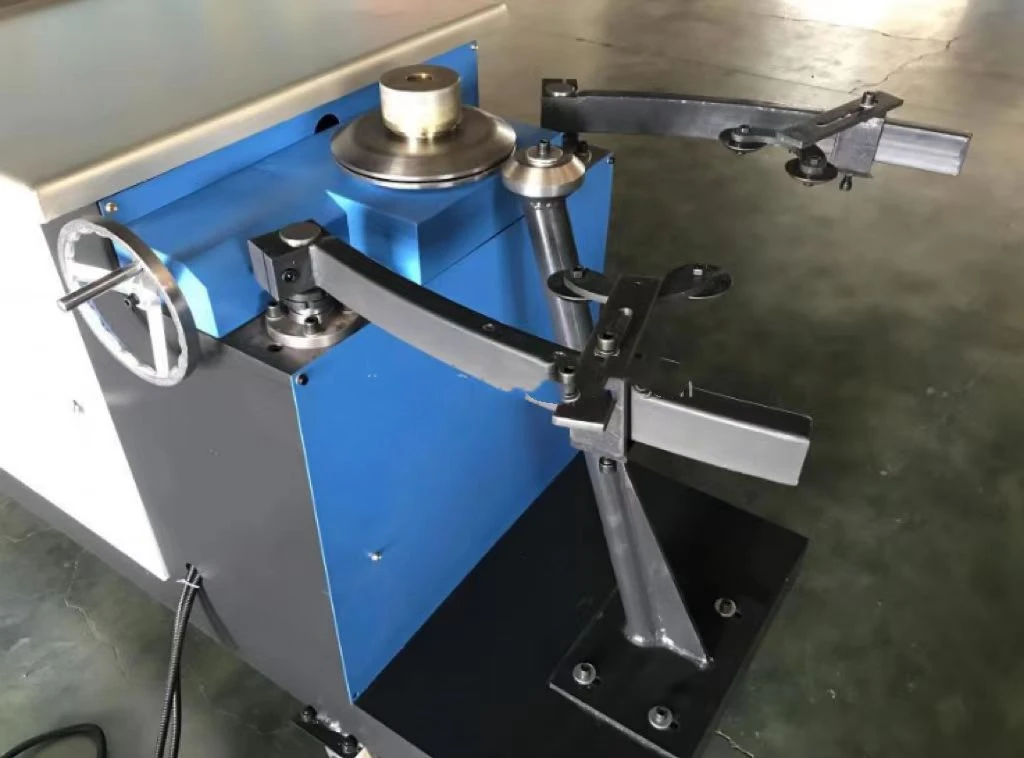

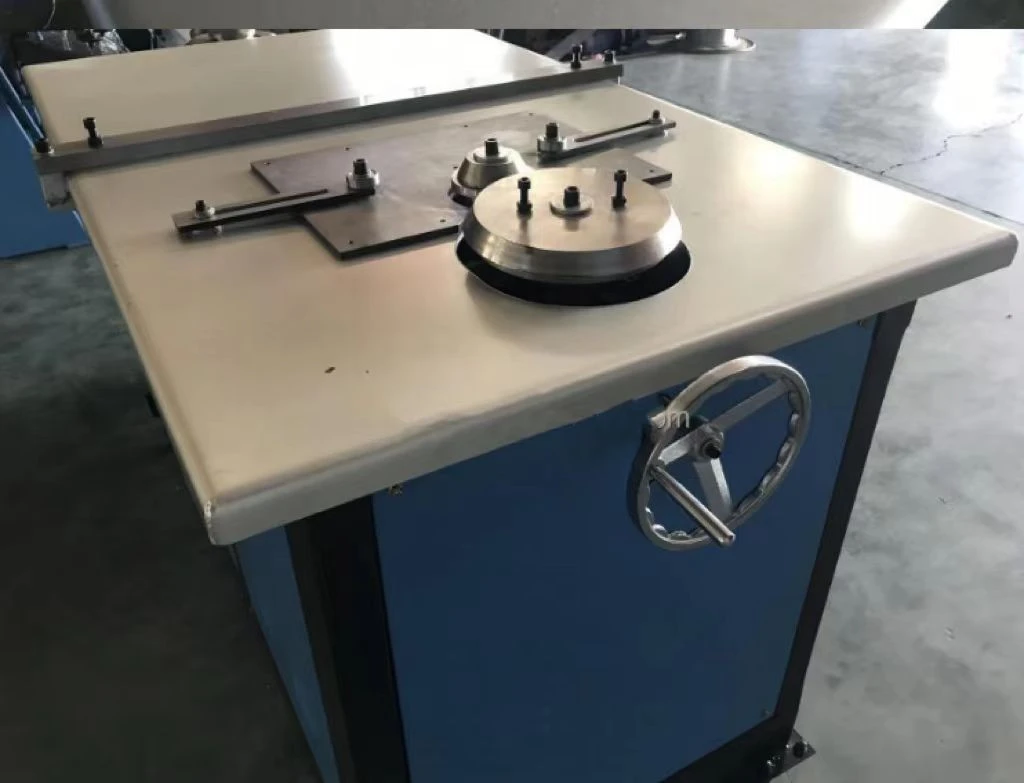

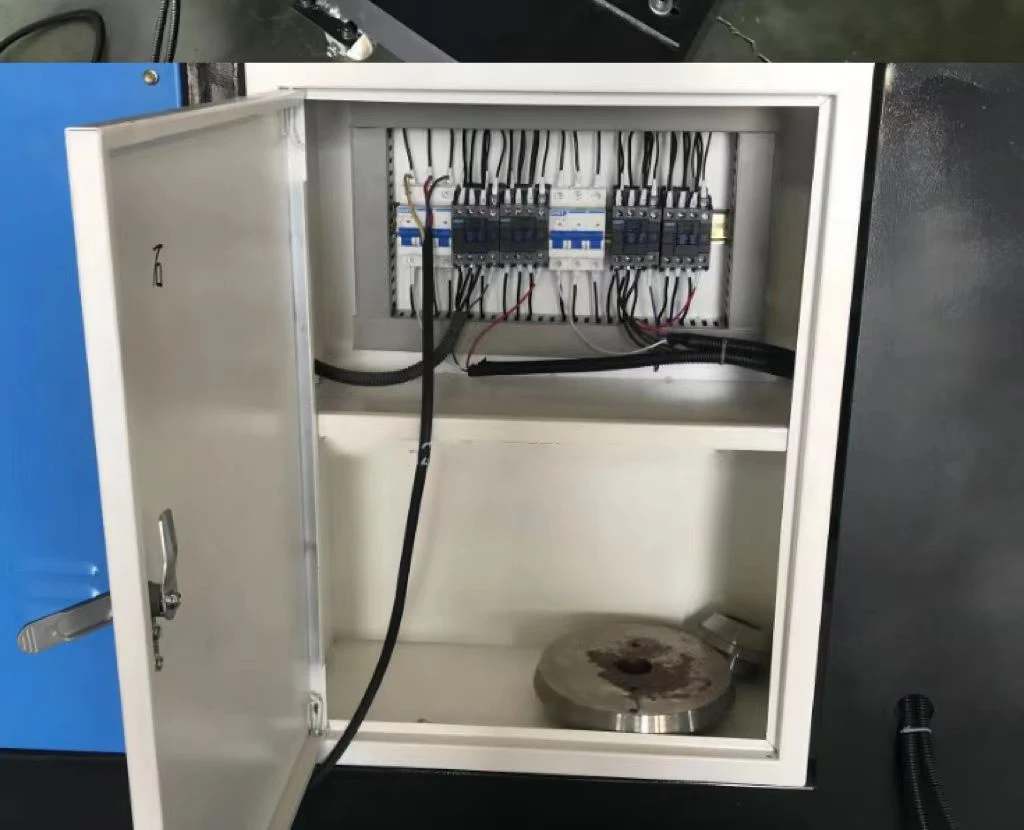

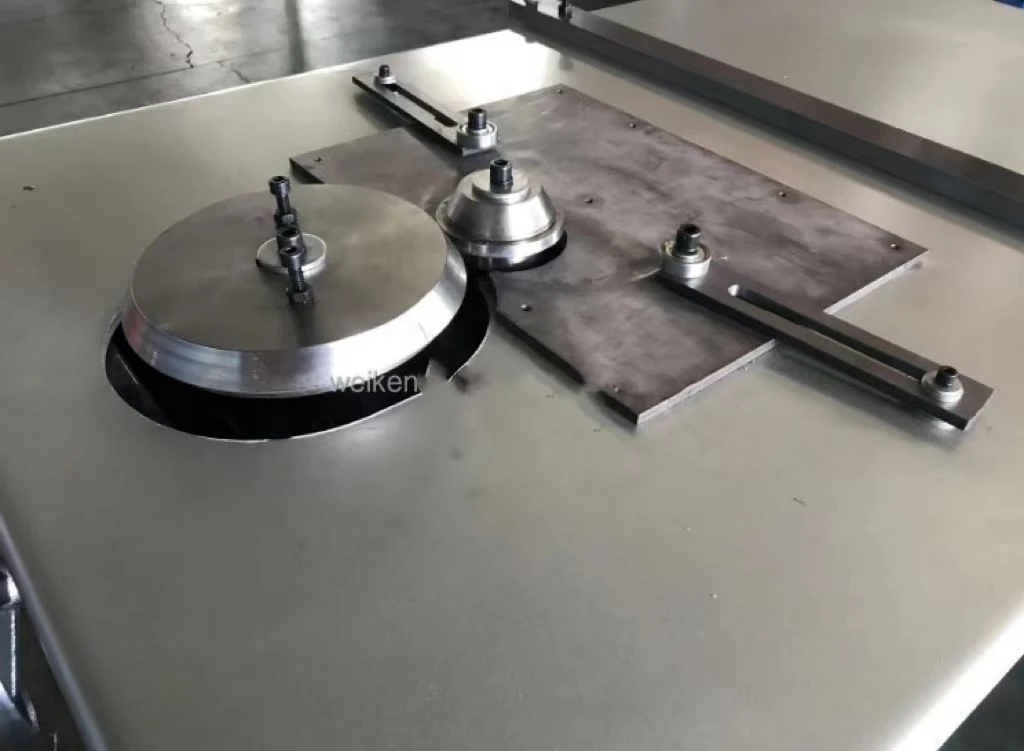

Details Images
About us
SBKJ GROUP is engaged in bringing the most suitable solutions/equipment for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.
Packing & Delivery
FAQ
1. Usage and maintenance.
Re: Elbow making machine is totally designed and manufacture by SBKJ, for usage and maintenance , please add my Whatsapp: 0086 13815139778.
2. What's the shipping cost from China to your country?
Re:We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe, convenient and timely delivery.
3. Payment terms, MOQ, warranty, FOB.
Re:Payment terms: 30% TT paid in advance, the balance of 70% before the shipment.
Minimum order quantity: 1 set.
Warranty: 1 years.
FOB: Shanghai/or others port in CHINA.
4. What's the package?
Re:Fumigation-free plywood case or film package.
5. What about commissioning service?
Re:We can offer commissioning service, the buyer need to afford air tickets.
6. What's policy for guarantee and broken parts?
Re:Warranty period of equipment lasts two year, during which the broken parts and spares caused by quality can be offered free.
Technical Data
|
Type |
SBWT-1500A Frequency Control (Male/Female) |
SBWT-1500D Frequency Control (Male/Female/Seam Lock) |
|
Thickness |
GI 0.4-1.8mm SS 0.4-1.2mm |
GI 0.4-1.8mm SS 0.4-1.2mm |
|
Diameter |
￠120-1500mm |
￠120-1500mm |
|
Working speed |
75r/min |
75r/min |
|
Power |
2.2Kw×2+4kw*1 |
2.2Kw×2+4kw*2 |
|
Weight |
660Kg |
660Kg |
|
Dimension |
2450×700×895mm |
2450×700×895mm |
