Electric Round Duct Forming Machine Sheet Metal Round Tube Flanging And Electric Rotary Machine

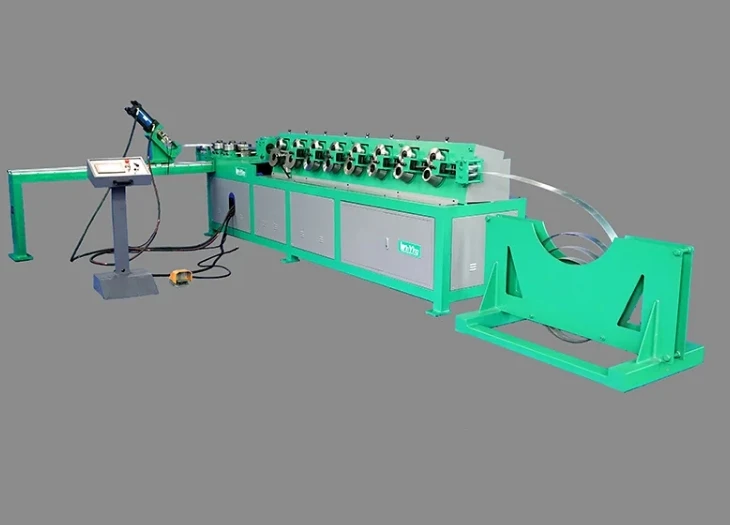

Round flange forming machine composes with coil strip uncoiler, right angle roll former, three vertical roller section bender, hydraulic cutter, hydraulic working station and electronic control system.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Electric Round Duct Forming Machine Sheet Metal Tube Flanging Electric Rotary Machine
Description
Round flange production line is also called flange, so that the pipe and the pipe are connected to each other, connected to the pipe end. There are holes in the flange, and bolts can be worn to make the two flanges tightly connected. The flange is sealed with a gasket, and the gasket is placed between the sealing surface of the two flanges. After tightening the nut, the specific pressure on the surface of the gasket is deformed after reaching a certain value, and the uneven part of the sealing surface is filled, so that the connection is tight and not leaking. Usually round flanges are processed by round flanges forming machine, round flanges punching machine and butt welding machine.
Packing & Shipping
FAQ
Q: What is the packaging of the product?
A:The machine is wrapped in plastic material and placed inside a customized wooden box.
Q: What is the minimum order quantity?
A:One piece.
Q: What information do I need to provide to get a quote? Do you have a quotation for the products?
A:Please provide the approximate length and thickness of the workpiece to be processed, please contact our customer service for details.
Q: How long is the delivery time?
A:Production is completed within two weeks.
Technical Data
|
Thickness |
2-5mm |
|
Min. diameter |
￠200mm |
|
Angle iron specification |
20*20, 20*30, 20*40, 20*50, 30*30, 30*40, 30*50mm |
|
Dimension |
Main machine 4600*1500*1750mm Decoiler 900*900*1300mm |
