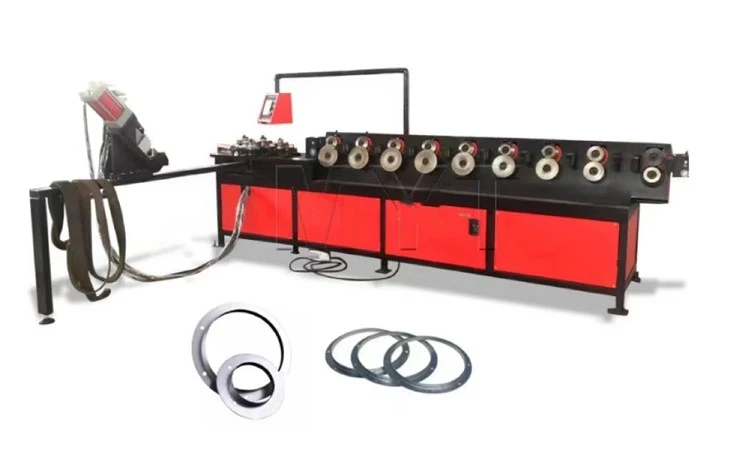

HVAC Duct Round Flange Forming Machine / Round Angle Steel Flange Production Line
Round flange forming machine composes with coil strip uncoiler, right angle roll former, three vertical roller section bender, hydraulic cutter, hydraulic working station and electronic control system.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
HVAC duct round flange forming machine angle steel flange production line
Description
Flange forming and cutting.
TFT human machine interface display, Touch screen control, Numerical control, Mold storage memory function.
Oil Hydraulic System.
High power circuit design.
Hydraulic motor 10HP.
Working Mold 7 station round screw die.
Electronic control system human machine interface, diameter forming locating wheel, diameter adjustable by location ruler.
Round duct flange forming line can form round duct flange automatically as per your requirements.
It is use for HVAC round duct flange connection in duct forming work.
It is of high production efficiency, suitable for vast amount of round duct flange making.
Buy HVAC duct forming machines, buy from manufacturer directly, buy from SBKJ Machine.
FAQ
Technical Data
|
Thickness |
2-5mm |
|
Min. diameter |
￠200mm |
|
Angle iron specification |
20*20, 20*30, 20*40, 20*50, 30*30, 30*40, 30*50mm |
|
Dimension |
Main machine 4600*1500*1750mm Decoiler 900*900*1300mm |
