Portable Automatic Flange Forming Machine Duct Making Machine
portable automatic machine Images Details FAQ
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
portable automatic machine
Images Details
Packing & Shipping
Certificate

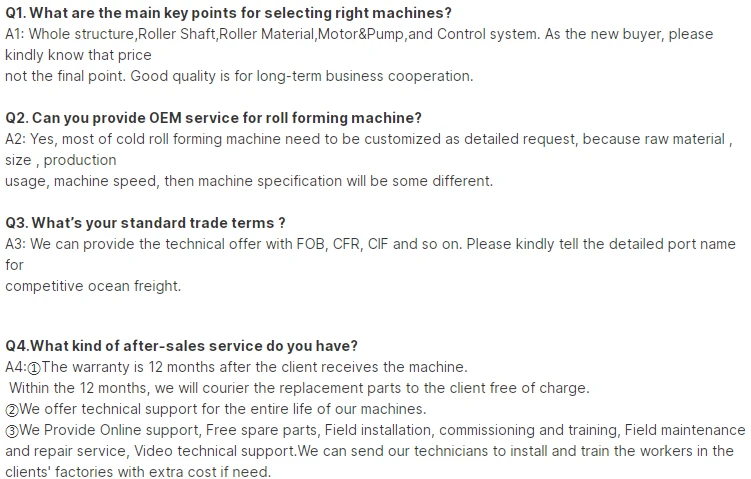

FAQ
| Type | Strip Width(mm) | Thickness(mm) | Motor Power(Kw) | Weight(Kg) | Dimension(mm) |
| SBTDC-20A | 89 | 0.8 | 3 | 2000 | 2800×600×1150 |
| SBTDC-25A | 99 | 0.8 | 3 | 2000 | 2800×600×1150 |
| SBTDC-30A | 121 | 1.0 | 3 | 2200 | 3000×600×1150 |
| SBTDC-35A | 131 | 1.0 | 3 | 3000 | 3200×600×1200 |
| SBTDC-40A | 146 | 1.2 | 4 | 3000 | 3200×600×1200 |
| SBTDC-20B | 86 | 0.8 | 3 | 2000 | 2800×600×1150 |
| SBTDC-25B | 96 | 0.8 | 3 | 2000 | 2800×600×1150 |
| SBTDC-30B | 118 | 1.0 | 3 | 2200 | 3000×600×1150 |
| SBTDC-35B | 128 | 1.0 | 4 | 3000 | 3200×600×1200 |
| Type | Name | Capacity | Size | Shape |
| T-20DC | Duct comer | 2.5mm | a=95mm |  |
| T-30DC | Duct comer | 3mm | a=105mm |  |
| T-40DC | Duct comer | 3.5mm | a=123mm |  |
| LT-30 | Duct comer | 3mm | a=105mm |  |
| T-35DC | Duct comer | 3mm | a=106mm |  |
| BC-10 | Duct clip | 5mm |  |
