Hvac Sheet Metal Duct Round Spiral Tube Former Machine

Hvac Sheet Metal Duct Round Spiral Tube Former Machine

This machine is mainly used for the production of spiral air duct machines.Spiral duct machines produce straight round spiral ducts, mainly used in the HVAC industry, but also in the mining, sheathing and airfreight sectors. Mainly used in the HVAC industry, but also in the mining, sheathing and airfreight sectors.

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction

HVAC spiral duct forming machine ventilation purpose

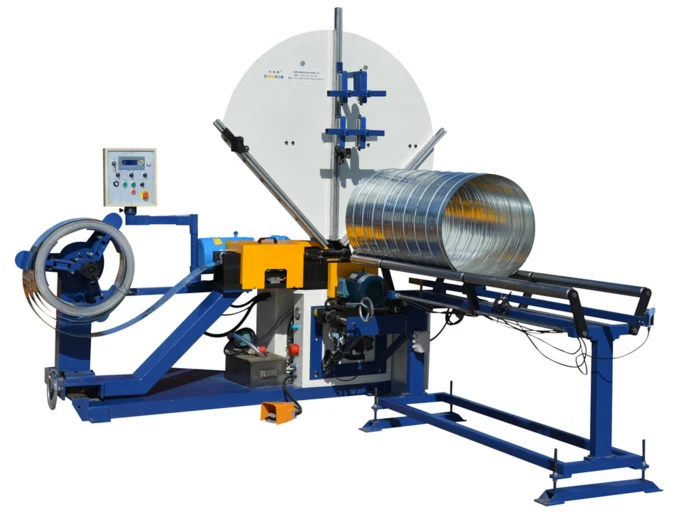

product-692-514



Spiral duct making machine can be directly on the material alre- spiral duct making machine can be directly on ady do flange bending machine, sheet of same board using flange is essential ady do flange bending machine process of practical equipment, but also can be used as a general ruffled machine usde as a general ruffled machine use.



Packing & Shipping



Stable wooden package protects machine from strike and damage.

Wound plastic film keeps machine out of damp and corrosion.

Fumigation-free package helps the smooth customs clearance.

The big size machine will be fixed in container without package.

For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.

For FCL, we get the container and do container loading by our skillful workers carefully.

For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment.

smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.



FAQ



1. Are you factory or foreign trade company?

We are industry and trade integration.



2. What shall we do if don't know how to operate your machine after bought from you?

We have detailed installation and operating instructions attached, it is very simple.

We have telephone and email support at 24 hours a day.

3. What are your payment terms?

We support T/T, L/C, Western Union and so on.

Other ways can also be received after we both sides discussion and agreement.

Size Information



Type

SBTF-1500

Diameter range

Φ80-φ1500mm

Tube length

125-6000mm

Strip width

137mm

Lock seam

Outside tube,on the inside on request



Material

Galvanization

0.4-1.2mm

Stainless steel

0.4-0.8mm

Aluminum

0.4-1.2mm

Strip speed

Max:38m/min

Dimensions

2650x1550x2000mm

Weight

2200kg

Control system

PLC automatic control

Main motor power

5.5KW

The power of cutting motor

4KW

Electrical

380V/50Hz/3PH Customizable voltage

Working pressure

0.5-0.7Mpa
